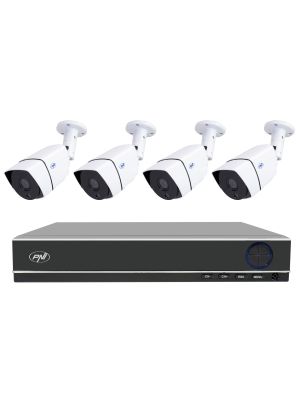

AHD PNI House PTZ1300 Full HD video surveillance kit with 4 outdoor cameras 2MP, 1080P and PNI SafeHouse 1TB included
Best quality imageThe PNI House PTZ1300 AHD surveillance kit offers a high quality image so that the protected space is always safe. The 4 cameras included in the package can be mounted outdoors or indoors with great ease. The metal housing and IP66 protection index allow the cameras to be mounted in humid and dusty conditions. They have a Full HD 2MP resolution (1920 x 1080), and the 36 IR LEDs ensure night vision of up to 30 meters. | |
Real-time local or remote surveillanceBy connecting a monitor to the HDMI or VGA output of the DVR, you can watch in real time everything that happens in the protected space. Also, through the monitor, access the DVR menu and make the necessary system settings, update the firmware or manage users. The PNI House PTZ1300 package can be viewed and controlled remotely via the mobile application or using a computer (with Windows operating system). Download the XMEye app for Android and iOS or General CMS for Windows | |
Registration typeThe PNI House PTZ1300 AHD surveillance kit supports a 3.5" HDD of maximum 14TB. We recommend installing a dedicated HDD for video surveillance . Thanks to the H.265+ video compression type, one of the most efficient, storage space is maximized without affecting video quality. The DVR/NVR can record in: manual, scheduled, motion detection or alarm mode. The recording unit also supports cameras with PTZ, human or chip detection function. | |
Optimal assemblyThanks to the 3 camera adjustment points (two at 360 degrees, one at 180 degrees), installation is quick, easy and efficient, allowing you to monitor even the tightest angles. You can connect to this DVR/NVR not only the 4 AHD cameras included in the package. It also supports network connection of IP cameras:
| |
Complete packageThe PNI House PTZ1300 AHD surveillance kit is equipped with everything you need to get it up and running as soon as you open the packaging. The package contains:
|
Compatible products
Video presentation |
|
PNI House AHD32 video surveillance camera, 2MP, 1080P, outdoor IP66 UKVideo surveillance kit with 4 analog cameras 2MP and NVR UK |
Product identification | |
Manufacturer | PNI |
Product Code | PNI-PTZ1300 |
DVR/NVR Color | Black |
Camera Color | White/Black |
DVR/NVR Features | |
Video Inputs | 4 x BNC |
Video Outputs | HDMI, VGA, Composite (BNC) |
Playback Resolution | 1080P(VGA) / 1080P(HDMI) |
Display mode | 1/4/9 |
Audio inputs | 4 x RCA |
Audio Outputs | 1 x RCA |
Audio compression | G711A |
Video compression | H.265 |
Data Storage | maximum 1 x 14TB HDD (not included) dedicated to video surveillance |
Network Interface | RJ45 10/100 Mbps |
Serial interface | 1 x RS485 |
Firmware upgrade | Yes, via USB |
Supply voltage | 12V/2A |
Power consumption | max. 15W (without HDD) |
Operating temperature | -26°C ~ +80°C |
Dimensions | 255 x 218 x 43 mm |
Recording resolution and number of channels, variants | Analog: 4 x 5M-N IP: 16 x 1080P / 8 x 5MP Hybrid: 4 x 5M-N + 2 x IP 1080P |
PTZ control | Supports |
USB ports | 2 x USB2.0 |
Dedicated application | XMEye |
Network | Yes, RJ45 LAN Port |
Recording modes | Manual, alarm, motion detection, scheduled |
Motion detection | Yes |
Chip detection | Yes |
Human form detection | Yes |
Camera Features | |
Pixels | 1920 × 1080 |
Resolution | 1080P |
Video Output | Analog, 75Ω, BNC connector |
Minimum Illumination | 0 Lux (IR on) |
Degree of protection | IP66, metal housing |
IR illumination distance | Up to 30 m |
Number of IR LEDs | 36 |
Power supply | 12V / 1A |
Lens | 3.6 mm |
Operating temperature | -26°C ~ +80°C |
Sensor resolution | 2MP |
Package contains | |
DVR / NVR | Yes |
Surveillance cameras | 4 indoor/outdoor cameras |
Camera connection cables | 4 x 18.3 m |
Power splitter | Yes, 1 x 4 |
Power supply NVR / DVR | 230V -> 12V 2A |
CD Software | Yes |
User manual | Yes |
USB mouse | Yes |
Remote control | Yes |
Camera power supply | 230V -> 12V 4A |
