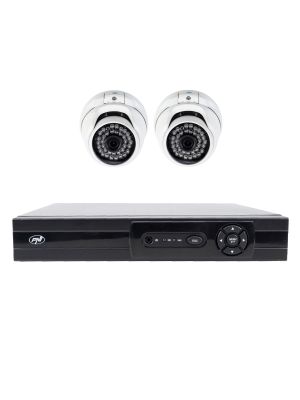

AHD video surveillance package PNI House AHD880, 8 channels, 5MP - DVR/NVR and 4 outdoor cameras AHD25, 5MP, dome, IP66
PNI-HOUSEA880 - DVR/NVR PNI House AHD880, 8 analog 4K-N channels or 8 IP 5MP channels, H265+, audio input, audio output, USB2.0, 2 x SATA max 8TB
Methods of access and controlThe PNI House AHD880 DVR/NVR can be controlled from mobile devices via the XMEye Pro app compatible with Android and iOS, and from PC via the General CMS software . You can find the CMS installation file on the CD included in the package or you can download it from our website, from the product page, Download section .
| |
| DVR/NVR (Digital Video Recorder) with maximum 8 analog or 16 digital channelsWith the PNI House AHD880 DVR/NVR you have the possibility to record and play images from up to 8 video cameras with analog resolution or 16 digital video cameras (IP). Can record resolutions: Analog: 8 cameras with maximum 4K resolution; Hybrid (Analog-Digital): 8 cameras with a maximum resolution of 4K + 4 IP cameras with a maximum resolution of 5MP; Digital (IP): 16 IP cameras with a maximum resolution of 2MP or 8 IP cameras with a maximum resolution of 5MP. |
Internet controlYou can view the recordings in real time from any device (laptop, PC or phone) via the Internet, either directly from the browser (Internet Explorer) or with the help of the dedicated XMEye Pro application compatible with Windows, iOS, Android. |
|
 | connectorsYou have the possibility to connect several types of monitors, the device being equipped with HDMI and VGA output. Video recordings stored on the HDD installed in the DVR/NVR can be downloaded locally to a USB stick via the product interface (USB2.0) or remotely via the Internet directly to a PC. The PNI House AHD880 DVR/NVR can be accessed via the Internet, thanks to the RJ45 LAN port. |
HDD compatibilityFor optimal operation of the surveillance system, we recommend using only dedicated CCTV hard drives with durability and guaranteed 24/7 operation. The DVR/NVR supports 2 x HDD of maximum 8TB (not included). | |
| Compatible camerasThe PNI House AHD880 DVR/NVR is compatible with analog video surveillance cameras:
or digital:
|
PNI-AHD25 - Video surveillance camera PNI House AHD25 5MP, dome, 3.6mm lens, 36 IR LEDs, outdoor or indoor, IP66
| 36 IR LEDs. IP66Thanks to its 36 IR LEDs, the PNI House AHD25 camera can capture clear images even at night up to a distance of 25 meters. The metal housing and IP66 water resistance class make it suitable for outdoor mounting. |
5MP AHD resolutionThe PNI House AHD25 camera has AHD - Analog High Definition resolution of 5MP (2560 x 1920px). PNI House AHD25 is compatible with DVRs from many manufacturers thanks to the transmission of 4 types of analog video signal: AHD, TVI, CVI, CVBS. |
|
 | CompatibilityThe PNI House AHD25 analog camera is compatible with hybrid systems from PNI, such as the PNI AHD880 with up to 8 4MP analog or IP channels. |
PNI-HOUSEA880 - DVR/NVR PNI House AHD880, 8 analog 4K-N channels or 8 IP 5MP channels, H265+, audio input, audio output, USB2.0, 2 x SATA max 8TB | |
|---|---|
| Product identification | |
| Product code | PNI-HOUSEA880 |
| Producer | PNI |
| General characteristics | |
| Number of video channels | 8 channels |
| View on mobile and PC | Yes |
| Video compression | H.265+ |
| Audio compression | G.711 |
| Frames per second (max FPS) | 18 FPS |
| Recording resolution and number of channels | Analog: 8 x 4K-N Hybrid: 8 x 4K-N analog + 4 x 5M IP IP: 16 x 1080P or 8 x 5M |
| Playback resolution | VGA(1080P max.) / HDMI(4K max.) |
| Storage capacity | maximum 2 x 8 TB HDD (not included) dedicated to video surveillance |
| Network interface | RJ45 - 10/100 Mbps |
| Audio inputs | 1 x RCA |
| Audio output | 1 x RCA |
| Video inputs | 8 x BNC |
| Video output | VGA, HDMI |
| USB interface | 2 x USB 2.0 |
| PTZ control | Support |
| Registration type | Manual, Programmed, Alarm |
| Processor | NT98323 |
| Supply voltage | 12V / 2A |
| Consumption | 15W (without HDD) |
| size | 255 X 225 X 40 mm |
| Dedicated application | XMEye |
| Human face detection | Yes |
| Human form detection | Yes |
| The package contains | |
| DVR | |
| DVR / NVR | Yes |
| Mouse | Yes |
| Power | Yes |
| User manual | Yes |
| Software CD | Yes |
PNI-AHD25 - PNI House AHD25 5MP video surveillance camera, dome, 3.6mm lens, 36 IR LEDs, outdoor or indoor, IP66 | |
|---|---|
| Product identification | |
| Producer | PNI |
| Product code | PNI-AHD25 |
| Color | White |
| General characteristics | |
| Horizontal resolution | |
| TV system | pal |
| Minimal lighting | 0.01 Lux |
| Distance IR illumination | Up to 25 m |
| Number of LEDs | 36 |
| Energy consumption | max. 6W |
| Video output | Analog, BNC connector |
| Supply voltage | 12V ±10% |
| Sensor resolution | 5MP |
| size | 100 X 105 X 75 mm |
| Feature 1 | Video Output: 1.0Vp-p, 75Ω (Composite BNC) |
| Use | Inside or outside |
| Case | Metal |
| Image resolution | 2560 x 1920px |
| Cut IR filter | Yes |
| Operating temperature | -26°C ~ +80°C |
| LENS | 3.6 mm |
| Waterproof class | IP66 |
| Video signal type | AHD, TVI, CVI, CVBS |
| The package contains | |
| Camcorder | Yes |
| User manual | Yes |
