Bax 10 pieces CB antenna PNI ML190, length 188cm, 26-28MHz, 600W with inclination at 90 degrees

Bax 10 pieces CB antenna PNI ML190, length 188cm, 26-28MHz, 600W with inclination at 90 degrees
£497.67
Availability: In stock
SKU
PNI-ML190-BX

Antena CB PNI ML190

CB SWR Antenna <1.2:1, 600W

The PNI ML190 CB antenna operates in the frequency range 26-28 MHz. With a length of 188 cm and a communication distance of up to 15 km in ideal conditions, the PNI ML190 CB antenna is perfect for drivers of both trucks, trucks and motor vehicles who want a product that ensures good communication in traffic.

The SWR of less than 1.2:1 and the maximum supported power of 600W are essential specifications that recommend this product to the most demanding users.

CB antenna with PL type thread

The PNI ML190 CB antenna with ø16mm thread is compatible with all PL type magnetic bases.

The package includes the 3.5 meter RG58 cable, the PL259 plug for connecting the antenna to the CB radio station and the SO239 plug.

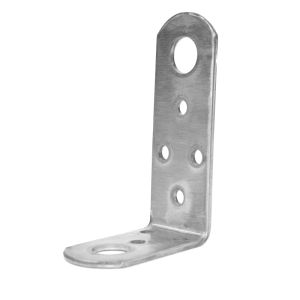

The PNI ML190 CB antenna can be directly mounted on a fixed PNI L1 / L2 type bracket or on SPA100 for antenna mounting on the trunk or SPA110 for antenna mounting on the mirror.

The antenna body made of chrome-plated copper ensures wear resistance and a special aesthetic appearance.

Antena CB PNI ML190

Antena CB PNI ML190

Tiltable CB antenna

Due to the long length of the antenna, in some situations such as underground parking lots or garages, the antenna could impede access.

The PNI ML190 CB antenna can be tilted in such situations. The included screw and wrench allow this. In order not to affect the performance of the antenna, we do not recommend using it in an inclined position when you are in traffic and communicating.



Video presentation

B PNI ML190 antenna, length 188cm, 26 28MHz, 600W UK

Write Your Own Review
You're reviewing:Bax 10 pieces CB antenna PNI ML190, length 188cm, 26-28MHz, 600W with inclination at 90 degrees
Your Rating
Product identification
Product code PNI-ML190
Workband ? B
Product color (spike) Silver
Coil color Silver
General features
Working frequency 26 - 28 MHz
Maximum applied power 600W
Minimum SWR in the center of the band less than 1.2:1
Length 188 cm
Impedance 50 Ohms
Material Stainless steel
Connector type PL
Hole diameter 16 mm
Cable length 3.5m
Weight 773g
size 1880 x 35 x 35 mm
Polarization vertically
Working distance 15 km
Operating temperature -26°C ~ +80°C
tiltable Yes, up to 90 degrees
The package contains
Radio station antenna Yes
RG58 cable Yes
PL259 plug Yes
Antenna coupling plug Yes



PNI-ML190
Lang Type Name Link
EU User manual Fisa tehnica EN, RO Link
EU10 Declaration of Conformity Declaration of conformity EU10 Link
