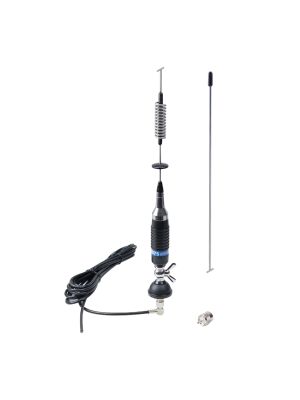

PNI S9 CB antenna with butterfly

Butterfly CB antenna

The PNI S9 CB antenna operates in the 26-30 MHz frequency range. With a length of 120 cm and a communication distance of up to 12 km (under ideal conditions of use), the PNI S9 CB antenna is perfect for drivers of TIRs, trucks or cars who want a product that provides them with a good communication in traffic.

The SWR of less than 1.2:1 and the maximum supported power of 600W are essential specifications that recommend this product to the most demanding users.

DV type CB antenna with butterfly

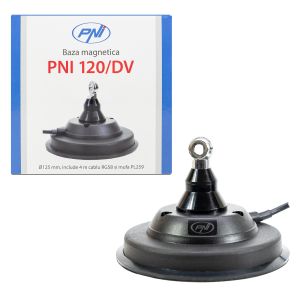

When choosing a CB antenna, the following aspects must be taken into account: the method of attaching the antenna (fixed support or magnetic base), the length of the antenna and the positioning of the antenna on your car or truck.

The CB antenna is very important in the station-antenna assembly because the quality of the emitted and received signal depends on it.

The quality of CB PNI antennas is already known by the very low values of the SWR.

PNI S9 CB antenna with butterfly

PNI S9 CB antenna with butterfly

Compatible PNI accessories

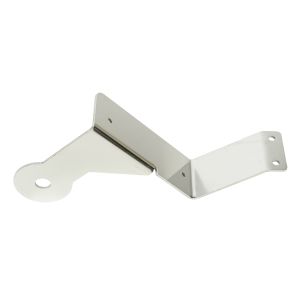

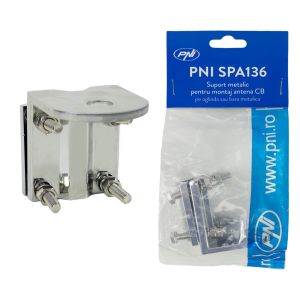

PNI offers a wide range of accessories recommended for butterfly antennas with cable included: PNI SPA100 bracket for mounting the antenna on the trunk, PNI SPA110 bracket for mounting the antenna on a mirror or metal bar, PNI SPA120 bracket for mirror mounting, PNI SPA130 bracket for mounting on teardrop, PNI L1 and L2 support.

Tiltable CB antenna

The butterfly screw allows the antenna to be tilted to allow access to low locations such as parking lots or garages.

We do not recommend tilting the antenna more than 30 degrees. An angle of inclination that is too high could affect the performance of the antenna

PNI S9 CB antenna with butterfly

Video presentation

Antenna CB PNI S9 with butterfly length 120 cm with RG58 cable 4m UK

Write Your Own Review
You're reviewing:Bax 50 pieces CB antennas PNI S9 with butterfly spike length 120 cm with 4 m RG58 cable
Your Rating
Product identification
Product code PNI-S9CAB
Work tape ? B
Product color (spike) Silver
Coil color Black
General characteristics
Working frequency 26 - 30 MHz
Number of channels 90
Maximum power applied 600W
Minimum SWR in the center of the band less than 1.2:1
Length 1265 mm
Impedance 50 Ohms
Material Stainless steel
Connector type your
Hole diameter 12.5 mm
Cable length 4 m
Weight 438 gr
size 45 X 45 X 1350 mm (mount included)
Polarization vertically
Working distance 12 km
Operating temperature -26°C ~ +80°C
tiltable Yes, up to 90 degrees
The package contains
Radio station antenna Yes
RG58 cable 4 m
Plug PL259 Yes
Butterfly screw Yes
Fixed mounting mount Yes
