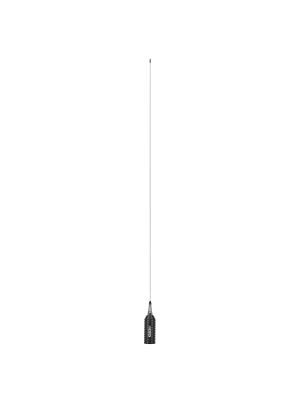

CB LEMM Turbo 2001 CENTROTETTO AT2001PL antenna without cable, length 200 cm, gain 6.5dB, 26-28.5MHz, 2000W, PL259 mount, made in Italy
CB antenna performanceThe performance of the CB LEMM TURBO 2001 CENTROTETTO antenna is closely related to the technical characteristics of the antenna under ideal conditions of installation and use: SWR <= 1.1:1.2, maximum applied power 2000 W, impedance 50 Ohms, gain +6dBi, stainless steel, etc. | |
Communication distanceThe communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the communication distance of over 25 km is achieved in ideal working conditions: calibrated antenna, open field without obstacles, the station with the maximum legally allowed power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can lead to the reduction of this distance. | |
Antenna lengthThe length of the antenna is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the range. LEMM TURBO 2001 CENTROTETTO has a length of 200 cm. | |
Package contentsThe LEMM TURBO 2001 CENTROTETTO CB antenna is equipped with a PL259 connector for attaching the antenna to a fixed mount on a fixed support. Among the compatible fixed mounts and supports we mention: PNI T941 or PNI L1, SP-S stainless steel (along with the PNI T601 cable). LEMM products are manufactured in Italy and their production is made of high quality materials with great durability. |
Product identification | |
Product code | PNI-AT-2001PL |
Workband | ? B |
Product color (spike) | Silver |
Coil color | Blue/Black |
General features | |
Working frequency | 26.5 - 28.0 MHz |
Maximum applied power | 2000W |
Minimum SWR in the center of the band | 1.1- 1.2 |
Length | 200cm |
Impedance | 50 Ohms |
Material | Stainless steel |
Connector type | PL |
Weight | 655g |
size | 2000 x 45 x 45 mm |
Gain | 6.5 dB |
Operating temperature | -26 ~ +55°C |
tiltable | Yes, up to 90 degrees |
The package contains | |
Radio station antenna | Yes |
