CB PNI ESCORT ESCORT HP 9001 PRO ASQ Radio Station Kit + CB PNI ML145 Antenna with 145 / PL Magnet

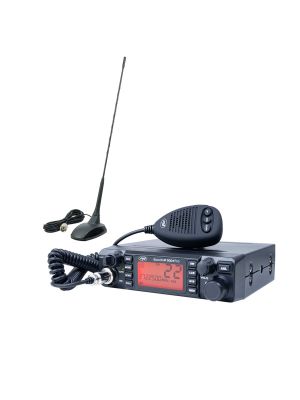

CB PNI Escort HP 62 Radio Station Kit and PNI Extra 40 Antenna with magnet included

CB PNI ESCORT ESCORT HP 9001 PRO ASQ radio station kit + CB PNI ML160 antenna with 145 / PL magnet

Be the first to review this product

£69.02

Availability: In stock

SKU

PNI-PACK100

Details

PNI-HP9001P - CB radio station PNI Escort HP 9001 PRO ASQ adjustable, AM-FM, 12V/24V, 4W, Scan, Dual Watch, ANL, multicolored screen

	12V / 24V power supply The evolution of the previous PNI Escort HP 9001, the new PRO version adds the possibility of 24V power supply. PNI Escort HP 9001 PRO accompanies car, truck or trailer drivers on the road. It is an excellent product, equipped with all the functions necessary for effective communication. It is an easy-to-use communication tool.
Multi-standard CB radio station With 80 AM/FM channels, with a power that varies between 1W and 4W depending on the country, the HP 9001 PRO easily adapts to the standards required in different European countries. With a simple combination of keys, you can change the specific operating norm in countries such as: Spain, Italy, France or Germany.
	Adjustable ASQ, key lock function With compact dimensions, easy to install and equipped with essential functions (ASQ, Lock, Dual Watch, Scan, ANL, MEM) PNI Escort HP 9001 is enriched with several buttons, including the one dedicated to emergency channels 9/19 and the screen multifunctional backlit.
Multicolor screen For maximum visual compliance, the HP 9001 PRO adapts to your needs by providing 7 background colors for the screen, such as: red, green, purple, blue and yellow.

PNI-ML160FC - PNI ML160 CB antenna, length 145 cm, 26-30MHz, 600W, without cable

PNI ML160 Performance

performances

The performance of the product is closely related to the technical characteristics that the antenna has in ideal conditions of installation and use: SWR <1.1, Maximum applied power 600 W, impedance 50 Ohms, Stainless steel, etc.

Communication distance

The communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the maximum communication distance of 15 km or even more is achieved in ideal working conditions: calibrated antenna, open field without obstacles, the station with the maximum legally allowed power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance.

PNI ML160 Communication distance

PN ML 160 Communication distance

Length

The length of the antenna is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the communication distance / range. In this case 145 cm.

PNI-145-PL - Magnetic base PNI 145/PL 145mm contains 4m cable and plug PL259

Magnetic base The PNI 145/PL magnetic base has a diameter of 145 mm, a size that gives the antenna stability even at high speeds, having a pleasant design.
	Threaded fastening The PNI145/PL base is compatible with antennas that have an internal thread fastening system.
Cable length The length of the cable is an important factor in choosing a magnetic base. The base from PNI 145/PL has a quality cable with a length of 4 m, which allows placing the antenna on the car dome without any problem, and placing the cable so as not to disturb the passengers.
	Strong magnet The PNI145/PL base has a strong magnet for its size, which gives it a very good grip on the car dome, and resistance and stability even at high speeds.
Plug PL259 The PNI 145/PL magnetic base is equipped with RG58 coaxial cable and PL259 plug for direct connection to the station.
	Rubber support included In order to protect the car dome from possible scratches, but without affecting the operation of the antenna in optimal parameters, the magnetic base 145/PL is provided with a thin and resistant rubber support, which also protects the connections and solders inside it from water.

Reviews

Technical specifications

PNI-HP9001P - CB radio station PNI Escort HP 9001 PRO ASQ adjustable, AM-FM, 12V/24V, 4W, Scan, Dual Watch, ANL, multicolored screen
Product identification
Producer	PNI
Product code	PNI-HP9001P
Product type	CB radio station
General characteristics
Exemplary	Portable
Emission band type	AM/FM
channels	40
Frequency	26.965 - 27.405 MHz
Microphone type (pins)	6 pins
Speaker audio power	3 W
Sensitivity (20dB SINAD)	less than 0.5 µV AM/FM
Emission power	4 W
Modulation	FM: 1.8KHz ± 0.2KHz, AM: 85-95%
feeding	12 V / 24 V
Absorbed current	maximum 2200mA
Dimensions (W x H x D / Weight)	160 X 170 X 45 mm / 500g
1DIN assembly	Yes
Special features
Dual Watch	Yes
Channel scan	Yes
ASQ	Yes
Lock the keyboard	Yes
LCR - the last selected channel	Yes
ASQ adjustable	Yes
Emergency channels	Yes
Noise filter	ANL (Automatic Noise Limiter)
Multicolor screen	Red, Green, Purple, Blue, Yellow
Memory channels	Yes
Operating temperature	-26°C ~ +80°C
Display type	LCD
Channel monitoring	Yes
Display	Yes
Use, destination	in the car, truck or at home.
Rear panel connections
Additional speaker connection	Yes
Microphone connection	Yes
The package contains
Radio station	Yes
Microphone	Yes
Support and screws for holding the radio station	Yes
Microphone support and screws	Yes
Power cord	Yes
Cigarette lighter plug	Yes
User manual	Yes

PNI-ML160FC - CB antenna PNI ML160, length 145 cm, 26-30MHz, 600W, without cable
Product identification
Product code	PNI-ML160FC
Work tape	? B
Product color (spike)	Silver
General characteristics
Antenna type	5/8 lambda (λ)
Working frequency	26 - 30 MHz
Number of channels	90
Maximum power applied	600W
Minimum SWR in the center of the band	less than 1.2:1
Length	145 cm
Impedance	50 Ohms
Material	Stainless steel
Connector type	PL
Hole diameter	16 mm
Weight	280 g
size	168 x 10 x 4 cm
Operating temperature	-26°C ~ +80°C
The package contains
Radio station antenna	Yes

PNI-145-PL - Magnetic base PNI 145/PL 145mm contains 4m cable and plug PL259
Product identification
Product code	PNI-145-PL
General characteristics
Sole diameter	145 mm
Maximum speed	200 km/h
Weight	730 g
Cable length	4 m
Compatible antenna type	With internal thread
size	15x15x6 cm
The package contains:
Magnetic base	Yes
Cable	Yes, 4m
jack	Yes, PL259

Download

PNI-145-PL

Lang	Type	Name	Link
EU10	Declaration of Conformity	Declaration of conformity EU10	Link
EU10	User manual	User manual EU10	Link
