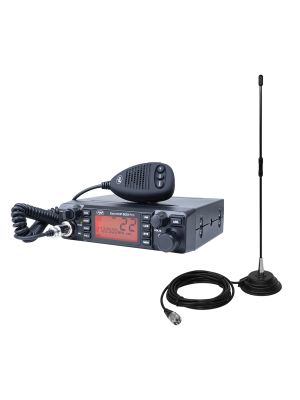

CB PNI ESCORT ESQORT HP 9001 PRO ASQ radio station kit adjustable, AM-FM, 12V, 4W + CB PNI ML100 antenna, 26-30MHz, 250W, 100cm, 125mm magnet included

£66.90

Availability: In stock

SKU

PNI-PACK17PRO

PNI-HP9001P - CB radio station PNI Escort HP 9001 PRO ASQ adjustable, AM-FM, 12V/24V, 4W, Scan, Dual Watch, ANL, multicolored screen

	12V / 24V power supply The evolution of the previous PNI Escort HP 9001, the new PRO version adds the possibility of 24V power supply. PNI Escort HP 9001 PRO accompanies car, truck or trailer drivers on the road. It is an excellent product, equipped with all the functions necessary for effective communication. It is an easy-to-use communication tool.
Multi-standard CB radio station With 80 AM/FM channels, with a power that varies between 1W and 4W depending on the country, the HP 9001 PRO easily adapts to the standards required in different European countries. With a simple combination of keys, you can change the specific operating norm in countries such as: Spain, Italy, France or Germany.
	Adjustable ASQ, key lock function With compact dimensions, easy to install and equipped with essential functions (ASQ, Lock, Dual Watch, Scan, ANL, MEM) PNI Escort HP 9001 is enriched with several buttons, including the one dedicated to emergency channels 9/19 and the screen multifunctional backlit.
Multicolor screen For maximum visual compliance, the HP 9001 PRO molds to your needs. providing 7 background colors for the screen, such as: red, green, purple, blue and yellow.

	CB antenna performance PNI ML100 The performance of the product is closely related to the technical characteristics of the antenna in ideal conditions of installation and use: SWR <= 1.0, maximum power applied 250 W continuously, impedance 50 Ohms, stainless steel, etc.
Communication distance The communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the maximum communication distance of 12 km is achieved in ideal working conditions: calibrated antenna, open field without obstacles, the station with the legally permitted maximum power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance.
	Antenna length The length of the antenna is a very important factor that can influence the communication distance. Thus, the longer the antenna, the greater the range of action. The PNI ML100 antenna is 110 cm long (magnetic base included).
Magnetic base The magnetic base 120/PL in the package is provided with a 4 m cable, enough to place the antenna on the dome, it has a diameter of 125 mm and a strong magnet that gives the antenna stability even at high speeds.
	Complete package This kit is ready for assembly with: antenna, magnetic base with cable and plug PL259, Allen key for calibration. All you have to do is mount the antenna on the magnetic base, connect it to a CB radio station and calibrate it to use it at maximum performance.

Video presentation
CB PNI ML100 antenna EN

PNI-HP9001P - CB radio station PNI Escort HP 9001 PRO ASQ adjustable, AM-FM, 12V/24V, 4W, Scan, Dual Watch, ANL, multicolored screen
Product identification
Producer	PNI
Product code	PNI-HP9001P
Product type	CB radio station
General characteristics
Exemplary	Portable
Emission band type	AM/FM
channels	40
Frequency	26.965 - 27.405 MHz
Microphone type (pins)	6 pins
Speaker audio power	3 W
Sensitivity (20dB SINAD)	less than 0.5 µV AM/FM
Emission power	4 W
Modulation	FM: 1.8KHz ± 0.2KHz, AM: 85-95%
feeding	12 V / 24 V
Absorbed current	maximum 2200mA
Dimensions (W x H x D / Weight)	160 X 170 X 45 mm / 500g
1DIN assembly	Yes
Special features
Dual Watch	Yes
Channel scan	Yes
ASQ	Yes
Lock the keyboard	Yes
LCR - the last selected channel	Yes
Adjustable ASQ	Yes
Emergency channels	Yes
Noise filter	ANL (Automatic Noise Limiter)
Multicolor screen	Red, Green, Purple, Blue, Yellow
Memory channels	Yes
Operating temperature	-26°C ~ +80°C
Display type	LCD
Channel monitoring	Yes
Display	Yes
Use, destination	in the car, truck or at home.
Rear panel connections
Additional speaker connection	Yes
Microphone connection	Yes
The package contains
Radio station	Yes
Microphone	Yes
Support and screws for holding the radio station	Yes
Microphone support and screws	Yes
Power cord	Yes
Cigarette lighter plug	Yes
User manual	Yes

PNI-ML100 - PNI ML100 CB antenna, length 100 cm, 26-30MHz, 250W, 125mm magnet included
Product identification
Product code	PNI-ML100
Work tape	? B
Product color (spike)	Silver
General characteristics
Working frequency	26 - 28 Mhz
Number of channels	90
Maximum power applied	250W
Minimum SWR in the center of the band	1.0
Length	100 cm (110 cm with base included)
Impedance	50 Ohms
Material	Stainless steel
Connector type	PL
Hole diameter	16 mm
Cable length	4 m
Weight	1.2 Kg
size	1000 x 150 x 40 mm
Gain	4 dBi
Working distance	12 km
Operating temperature	-26°C ~ +80°C
The package contains
Radio station antenna	Yes
RG58 cable	4 m
Plug PL259	Yes
Magnetic base	125 mm

PNI-ML100

Lang	Type	Name	Link
EU10	Declaration of Conformity	Declaration of conformity EU10	Link
EU10	User manual	User manual EU10	Link
