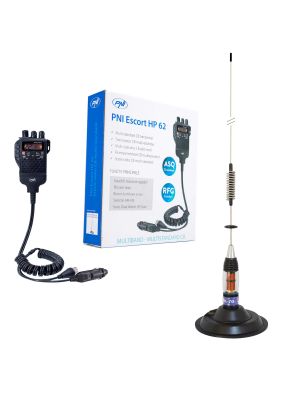

CB PNI Escort HP 62 radio station kit and PNI PNI ML145 antenna with magnet included

Be the first to review this product

£88.75

Availability: In stock

SKU

PNI-PACK89

Details

PNI-HP62 - PNI Escort HP 62 Portable CB Radio Station, Multi Standard, 4W, 12V, AM-FM, ASQ 5-Level Adjustable, RF Gain 9-Level, Dual Watch, Scan, Lock

	Multifunctional illuminated screen The illuminated screen displays the current working mode of the station: the active functions (EMG, LOCK, SC, DW), the frequency band and the number of the selected channel, as well as the strength of the received signal and the transmitted signal.
Portable, small size Similar to a walkie-talkie, the PNI Escort HP 62 CB station is extremely accessible and convenient to use due to its small dimensions, only 73 x 35 x 92 mm - without the power adapter. Thus, you can place the station in the armrest or in the confined spaces on board any car.
	Multiple functions Although small, the PNI Escort HP 62 is equipped with most of the functions necessary for a CB station, thus satisfying the demands of any user. Functions such as RF Gain, Scan, Automatic Squelch, Dual Watch or Last channel recall make the station easy to adapt to different communication needs.
Connectivity: BNC connector, 2-pin jack and PL259 jack The PNI Escort HP 62 CB radio station has a double use: in the car as a mobile station together with the antenna mounted on the body and outdoors as a portable station by installing a BNC antenna and batteries (optional accessories). The microphone and speaker connections allow the connection of a 2-pin headset with which we can communicate in handsfree mode.

PNI-145-PL - Magnetic base PNI 145/PL 145mm contains 4m cable and PL259 plug

Magnetic base The PNI 145/PL magnetic base has a diameter of 145 mm, a size that gives the antenna stability even at high speeds, having a pleasant design.
	Screw clamping The PNI145/PL base is compatible with antennas that have an internal thread clamping system.
Cable length The length of the cable is an important factor in choosing a magnetic base. The base of the PNI 145/PL has a quality cable with a length of 4 m, which allows the antenna to be placed on the car's dome without any problem, and the cable to be placed so that it does not derail the passengers.
	Strong magnet The PNI145/PL base has a strong magnet for its size, which gives it a very good grip on the car's dome, and resistance and stability even at high speeds.
PL259 Plug The PNI 145/PL magnetic base is equipped with RG58 coaxial cable and PL259 plug for direct connection to the station.
	Rubber holder included In order to protect the car's dome from possible scratches, but without affecting the optimal operation of the antenna, the 145/PL magnetic base is provided with a thin and resistant rubber support, which also protects the connections and soldering inside it from water.

PNIML145 - PNI ML145 CB Antenna, 145 cm Length, 26-30MHz, 400W, No Cable

performante Antena CB PNI ML100

Performance of the PNI ML145 CB antenna

The performance of the product is closely related to the technical characteristics that the antenna has in ideal conditions of assembly and use: SWR <= 1.0, maximum power applied for a short time 400 W, impedance 50 Ohms, stainless steel, etc.

Communication distance

The communication distance is another decisive factor in the acquisition and use of a CB antenna. Thus, the maximum communication distance of 15 km is reached in ideal working conditions: calibrated antenna, open field without obstacles, the station with the maximum legally allowed power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can lead to a decrease in this distance.

raza de actiune Antena CB PNI ML100

Antena CB PNI ML100 cu lungime 100 cm

Antenna length

The length of the antenna is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the range. The PNI ML145 CB antenna has a length of 145 cm.

Video presentation
CB transceiver PNI HP Escort 62

Reviews

Technical specifications

PNI-HP62 - PNI Escort HP 62 Portable CB Radio Station, Multi Standard, 4W, 12V, AM-FM, ASQ 5-Level Adjustable, RF Gain 9-Level, Dual Watch, Scan, Lock
Product Identification
Product code	PNI-HP62
Brand	NIP
General characteristics
Frequency	26.965-27.405 MHz
Transmission band type	AM-FM
Channels	40
Power supply	12 V
Dimensions (W x H x D / Weight)	73 x 35 x 92 mm (without power adapter) / 332 g (adapter included)
Sensitivity (10dB)	0.5uV (AM) 0.25uV (FM)
Speaker Audio Power	0.5W
Audio Signal Distortion	less than 3% @ 1KHz
Transmitting power	4W
Modulation	90% +/- 5%
Current Absorbed	900mA
Pattern	Portable
EEPROM Memory	Yes
Additional external speaker jack	Yes
Special features
Dual Watch	Yes
Channel Scan	Yes
RF Gain	Yes, 9 levels
ASQ - Automatic Squelch	Yes, 5 levels
Keypad lock	Yes
CSF - last selected channel
Multicolor display	Orange
Emergency channel button 9/19	Yes
Channel Memories	Yes
Adjustable ASQ	Yes
SQ - Squelch	Yes
RF PWR	Yes
SWR meter	Yes
VOX	Yes
Accessory Connection	2-pin plug
Digital Automatic Squelch (ASQ)	Yes
Operating temperature	-26 ~ +55°C
Screen	Yes, multifunctional backlit
Front panel connections
2-pin jack	Yes
The package contains
Radio station	Yes
Microphone Mount
Station mounting bracket	Yes
Power Cord	Yes
Cigarette lighter plug	Yes
Antenna adapter and 12 V power supply	Yes
Textbook in Romanian	Yes

PNI-145-PL - Magnetic base PNI 145/PL 145mm contains 4m cable and PL259 plug
Product Identification
Product code	PNI-145-PL
General characteristics
Sole diameter	145 mm
Maximum speed	200 Km/h
Weight	730 g
Cable length	4 m
Compatible antenna type	With internal thread
Dimensions	15x15x6 cm
The package contains:
Magnetic base	Yes
Cable	Yes, 4m
Jack	Yes, PL259

PNIML145 - PNI ML145 CB antenna, length 145 cm, 26- 28 MHz, 400W, without cable
Product Identification
Product code	PNIML145
Product color (spike)	Silver
General characteristics
Working frequency	26 - 28 Mhz
Number of channels	90
Maximum applied power	400W
Minimum S.W.R. in the center of the band	1,1 / 1
Length	145 cm
Impedance	50 Ohm
Material	Stainless steel
Connector Type	PL
Hole diameter	16 mm
Weight	280 g
Dimensions	164 x 10 x 3 cm
Working distance	15 km
Operating temperature	-26°C ~ +80°C
The package contains
Radio Station Antenna	Yes
