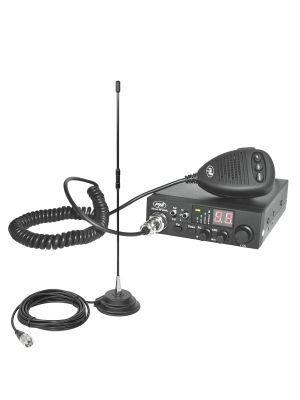

CB PNI ESCORT HP 8000L ASQ radio station + CB PNI S75 antenna with magnet
| ASQ AdjustableAn innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of car CB radio stations. If until now we were used to activating/deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interference, background noise and jamming in the CB band. |
ASQ button on microphoneFor increased comfort behind the wheel, PNI has positioned the automatic squelch (ASQ) activation/deactivation button on the microphone. In addition to this button, we also find up/down buttons on the microphone for changing channels, so you won't have to take your eyes off the road to operate these main functions. |
|
| Reduced dimensionsYou can use the product in any car, because it is one of the smallest CB stations on the market. Robust and with a pleasant design, it can be placed in any location: armrest, dashboard, between the seats, without being uncomfortable or disturbing. |
Key lock switchThe PNI Escort HP 8000L CB radio station has a switch on the front panel that allows the selection of the emergency channel (19), the normal mode of operation (CH) and the activation of the key lock function (L) , a useful function in situations where you want to avoid touching accidental pressing of the station keys. |
|
| CB antenna performanceThe performance of the product is closely related to the technical characteristics of the antenna in ideal conditions of installation and use: SWR <= 1.2:1, maximum applied power 250 W, impedance 50 Ohms, stainless steel, etc. |
Communication distanceThe communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the communication distance of 10 km is achieved under ideal working conditions: calibrated antenna, open field without obstacles, the station with the legally permitted maximum power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance. |
|
| Antenna lengthThe length of the antenna is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the range of action. The antenna in this kit is 76 cm long (magnetic base included). |
Magnetic baseThe magnetic base in this package is provided with a 4 m cable, sufficient length for placing the antenna on the dome, and a diameter of 125 mm. The strong magnet gives the antenna stability even at very high speeds. |
|
| Adjustable angleThis antenna can be tilted with the help of the butterfly screw with which it is provided, to enter passages, garages or low-height parking lots. Apart from these situations, an inclination greater than 30 degrees is not recommended because it can affect the performance of the antenna. |
| Product identification | |
| Product code | PNI-PACK71 |
| General characteristics of the radio station | |
| Model | Portable |
| Emission band type | AM-FM |
| Frequency | 26.965-27.405 MHz |
| channels | 40 AM/FM |
| Microphone type | 6 pins |
| Audio signal distortion | less than 8% @ 1 KHz |
| Emission power | 4 W |
| Modulation | FM: 3KHz ± 0.2KHz, AM: 85-90% |
| Mounting 1 DIN | Yes |
| feeding | 12 V |
| Consumption | second |
| Dimensions / Weight | 115 x 36 x 152 mm / 0.8 kg |
| EEPROM memory | Yes |
| Special radio station features | |
| ASQ (automatic squelch) | Yes |
| Lock the keyboard | Yes |
| Emergency channel button 9/19 | Yes |
| ASQ adjustable | Yes |
| SQ - Squelch | Yes |
| Automatic Digital Squelch (ASQ) | Yes |
| Operating temperature | -26 C - +60 C |
| Additional speaker connection | Yes |
| Characteristics of the radio antenna | |
| Working frequency | 26 - 28 Mhz |
| Maximum power applied | 250 W |
| Minimum SWR in the center of the band | less than 1.2:1 |
| Antenna length | 76 cm including the base |
| Working distance | 10 km |
| Impedance | 50 Ohms |
| Material | Stainless steel |
| Connector type | PL259 |
| Magnetic base included | Yes |
| Magnetic base diameter | 125 mm |
| Cable length | 4 m |
| Polarization | vertically |

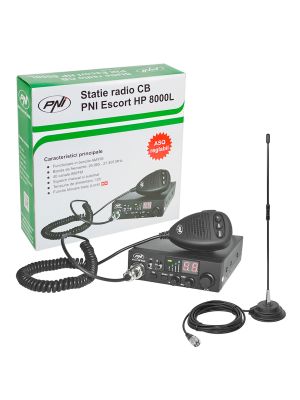

| The package contains | |
| CB radio station | Yes |
| CB radio antenna | Yes |
| Magnetic base | Yes |
| Plug PL259 | Yes |
| RG58 cable | Yes |
| Cigarette lighter plug | Yes |
| Microphone support | Yes |
| Station support | Yes |
| Microphone | Yes |
