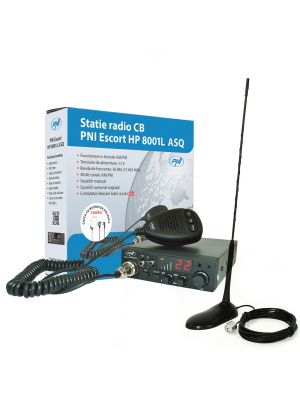

CB PNI ESCORT HP 8001L ASQ 4W 12V radio station package, 40 channels + CB PNI Extra 40 antenna with magnet included, length 45 cm, 30W
Key lock switchThe PNI Escort HP 8001L CB radio station has a switch on the front panel that allows the selection of the emergency channel (19), the normal mode of operation (CH) and the activation of the key lock function (L) , a useful function in situations where you want to avoid touching accidental pressing of the station keys. | |
ASQ adjustableAn innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of car CB radio stations. If until now we were used to activating/deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interference, background noise and jamming in the CB band. | |
6 pin microphoneThe HP 8001L ASQ radio has a standard 6-pin microphone jack on the front panel. The microphone included in the package has buttons for channel selection, PTT button and ASQ activation button. | |
Headphone jack with microphoneThe PNI HP 8001L radio station has plugs on the front panel for connecting a pair of headphones with a microphone, included in the package. | |
Discreet and efficientThe PNI Extra 40 antenna is the smallest CB antenna (it has a height of only 44 cm - base included) that can be mounted both on cars and on vans or minibuses. Its small dimensions make it almost imperceptible, easily confusing with the radio antenna. The average reception distance is 7 km. |
Product identification | |
Product code | PNI-PACK73 |
General characteristics of the radio station | |
Exemplary | Portable |
Emission band type | AM-FM |
Frequency | 26.965-27.405 MHz |
channels | 40 AM/FM |
Microphone type | 6 pins |
Audio signal distortion | less than 5% @ 1 KHz |
Emission power | 4 W |
Modulation | FM: 1.8KHz ± 0.2KHz, AM: 85-95% |
feeding | 12 V |
Dimensions / Weight | 440 X 180 X 36 mm / 1700 g |
Special radio station features | |
ASQ (automatic squelch) | Yes |
Lock the keyboard | Yes |
Emergency channel button 9/19 | Yes |
Adjustable ASQ | Yes |
Operating temperature | -26 C - +60 C |
Characteristics of the radio antenna | |
Working frequency | 26 - 30 MHz |
Maximum power applied | 50 W |
Minimum SWR in the center of the band | 1.0 |
Antenna length | 45 cm (base included) |
Working distance | 7 km |
Impedance | 50 Ohms |
Material | Fiber glass |
Connector type | PL259 |
Magnetic base included | Yes |
The package contains | |
CB radio station | Yes |
CB radio antenna | Yes |
Magnetic base | Yes |
Plug PL259 | Yes |
RG58 cable | Yes, 4 m |
Cigarette lighter plug | Yes |
Microphone support | Yes |
Station support | Yes |
Headphones | Yes, cable 150 cm |
