CB PNI Escort HP 62 and Antenna PNI PNI ML145

CB PNI Escort HP 62 radio station kit and PNI PNI ML145 antenna with magnet included

PNI Escort HP 62 and PNI PB-HP62 Accessory Kit

CB PNI Escort HP 62 CB Radio Package and PNI PB-HP62 Li-Ion 1500 mAh Rechargeable Battery Accessory Kit Included

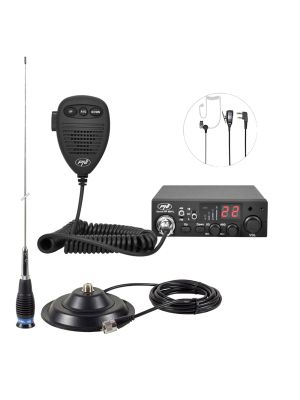

CB PNI ESCORT HP 8001L ASQ radio station kit with PNI HS81 headphones + CB PNI ML160 antenna with 145mm magnet, length 155 cm

CB PNI ESCORT HP 8001L ASQ radio station kit with PNI HS81 headphones + CB PNI ML160 antenna with 145mm magnet, length 155 cm
£76.46
Availability: In stock
SKU
PNI-PACK99

PNI-HP8001L - CB radio station PNI Escort HP 8001L ASQ includes headphones with HS81L microphone



CB PNI Escort HP 8001L ASQ radio station includes HS81 headset

Key lock switch

CB PNI Escort HP 8001L radio station has a switch on the front panel that allows you to select the emergency channel (19), the normal operation mode (CH) and activate the key lock function (L) , a useful function in situations when you want to avoid touching accidental keys of the station.

Adjustable ASQ

An innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of CB car radio stations. If until now we were used to activating / deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interferences, background noise and interference from the CB band.

CB PNI Escort HP 8001L ASQ radio station includes HS81 headset

CB PNI Escort HP 8001L ASQ radio station includes HS81 headset

6-pin microphone

The HP 8001L ASQ Radio Station has a standard 6-pin microphone jack on the front panel. The microphone included in the package has buttons for channel selection, PTT button and ASQ activation button.

40 channels

The HP 8001L PNI Radio Station meets the latest European CB standards. The station has a switch to change the modulation type (AM or FM) which will allow you to select the operating mode.

CB PNI Escort HP 8001L ASQ radio station includes HS81 headset

HP 8001L ASQ

Headphone jack with microphone

The HP 8001L PNI radio station has plugs on the front panel for connecting a pair of headphones with a microphone, included in the package.

Compatible with PNI Bluetooth accessories

The HP 8001L PNI Escort Radio Station is compatible with the PNI BT-Dongle 8001 Bluetooth Adapter, the PNI BT-MIKE 8500 Bluetooth Microphone, and the PNI BT-MIKE 7500 Bluetooth Headset.

CB PNI Escort HP 8001L ASQ radio station

PNI-ML160FC - CB Antenna PNI ML160, length 145 cm, 26-30MHz, 600W, without cable



PNI ML160 Performance

performances

The performance of the product is closely related to the technical characteristics of the antenna in ideal conditions of installation and use: SWR <1.1, Maximum applied power 600 W, impedance 50 Ohms, Stainless steel, etc.

Communication distance

Communication distance is another decisive factor in the acquisition and use of a CB antenna. Thus the maximum communication distance of 15 km or even more is reached in ideal working conditions: Calibrated antenna, open field without obstacles, the station with the maximum legally allowed power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance.

PNI ML160 Communication distance

PN ML 160 Communication distance

Length

Antenna length is another very important factor that can influence the distance of communication in traffic. Thus, the longer the antenna, the greater the communication distance / range. In this case 145 cm.

PNI-145-PL - Magnetic base PNI 145 / PL 145mm contains 4m cable and PL259 plug



Magnetic base

The PNI 145 / PL magnetic base has a diameter of 145 mm, a size that gives the antenna stability even at high speeds, with a pleasant design.

Magnetic base PNI 145 / PL diameter 145mm

Magnetic base PNI 145 / PL 145mm

Threaded fastening

The PNI145 / PL base is compatible with antennas that have an internal thread clamping system.

Cable length

The length of the cable is an important factor in choosing a magnetic base. The base from PNI 145 / PL has a quality cable with a length of 4 m, which allows the placement of the antenna on the dome of the car without any problem, and the placement of the cable so as not to disturb the passengers.

Magnetic base PNI 145 / PL

Magnetic base PNI 145 / PL 145mm

Strong magnet

The PNI145 / PL base has a strong magnet for its size, which gives it a very good grip on the car's dome, and resistance and stability even at high speeds.

PL259 plug

The PNI 145 / PL magnetic base is equipped with RG58 coaxial cable and PL259 socket for direct connection to the station.

magnetic base with thread, cable and plug

Rubber support

Rubber support included

To protect the car's dome from possible scratches, but without affecting the operation of the antenna in optimal parameters, the 145 / PL magnetic base is provided with a thin and resistant rubber support, which also protects the connections and solders inside it from water.

Write Your Own Review
You're reviewing:CB PNI ESCORT HP 8001L ASQ radio station kit with PNI HS81 headphones + CB PNI ML160 antenna with 145mm magnet, length 155 cm
Your Rating

PNI-HP8001L - CB radio station PNI Escort HP 8001L ASQ includes headphones with microphone HS81L

Product identification
Product code PNI-HP8001L
General characteristics
Frequency 26.965-27.405 MHz
Emission band type AM-FM
channels 40
feeding 12 V
Dimensions (W x H x D / Weight) 115 x 180 x 36 mm / 0.8 kg
Microphone type (pins) 6 pins
Audio signal distortion less than 5% @ 1 KHz
Emission power 4W
Modulation FM: 1.8KHz ± 0.2KHz, AM: 85-95%
Absorbed current second
Model Portable
Special features
ASQ - Automatic Squelch Yes
Keyboard lock Yes
Emergency channel button 9/19 Yes (CH 19)
Adjustable ASQ Yes
Operating temperature -26°C ~ +60°C
Rear panel connections
Additional speaker connection Yes
The package contains
Radio station microphone Yes
Radio station Yes
Microphone holder Yes
Station mounting support Yes
Power cord Yes
Lighter plug Yes
Headphones Yes, 150cm cable


PNI-ML160FC - PNI ML160 CB antenna, length 145 cm, 26-30MHz, 600W, without cable

Product identification
Product code PNI-ML160FC
Work tape ? B
Product color (spike) Silver
General characteristics
Working frequency 26 - 30 MHz
Number of channels 90
Maximum power applied 600W
Minimum SWR in the center of the band less than 1.2:1
Length 145 cm
Impedance 50 Ohms
Material Stainless steel
Connector type PL
Hole diameter 16 mm
Weight 280 g
size 168 x 10 x 4 cm
Operating temperature -26°C ~ +80°C
The package contains
Radio station antenna Yes


PNI-145-PL - Magnetic base PNI 145/PL 145mm contains 4m cable and plug PL259

Product identification
Product code PNI-145-PL
General characteristics
Sole diameter 145 mm
Full speed 200 km/h
Weight 730 g
Cable length 4 m
Compatible antenna type With internal thread
size 15x15x6 cm
The package contains:
Magnetic base Yes
Cable Yes, 4m
jack Yes, PL259



PNI-HP8001L
Lang Type Name Link
EU Declaration of Conformity Declaration of conformity EN-BG-DE-ES-FR-HU-IT-PL-RO Link
RO Declaration of Conformity DC&CG RO, EN, HU Link

PNI-145-PL
Lang Type Name Link
EU10 Declaration of Conformity Declaration of conformity EU10 Link
EU10 User manual User manual EU10 Link
