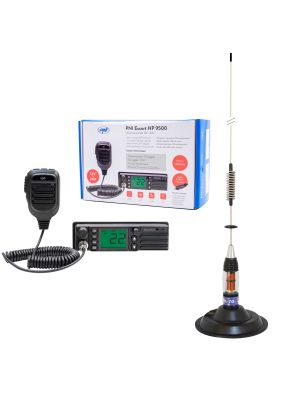

CB PNI Escort HP 8900 ASQ Radio Station Package, 12-24V + CB PNI ML70 Antenna, 70 cm with 145 mm magnetic base included
PNI-HP8900 - CB radio station PNI Escort HP 8900 ASQ, 12V / 24V, RF Gain, Roger Beep, CTCSS-DCS, Dual Watch AM / FM switched only in the EU band
| Multi-norm CB radio stationBy changing the norm, the procedure is easy to perform with a simple key combination, and by changing the modulation (AM / FM) depending on the norm, the CB PNI Escort HP 8900 radio station can be used in several European countries, such as Romania, Italy, Spain, UK, Germany, Poland etc. Consult the legislation of each country regarding the use of the CB band, the maximum allowed emission power and the need to hold or not a license before using the PNI station. |
Noise control functions: SQ, ASQ and RF GainThe CB PNI Escort HP 8900 radio station allows the most accurate control over the background noise specific to the CB band. The 28-level adjustable SQ function and the 9-level adjustable ASQ allow the user to filter and eliminate noise, making communication clearer. The 9-level RF Gain function allows control over the reception frequency, reducing distortion. |
|
| 1.77 "color screenThe large color LCD screen (1.77 inches) displays information such as current channel, frequency, modulation, signal strength (RX / TX), norm and active functions, being a reliable indicator of the operation status of the station. |
Additional settings menuThe MENU key on the front panel of the station allows direct access to the menu of additional settings: screen brightness, key sound, automatic start, as well as activating, deactivating and setting functions such as TOT, RF Gain, Noise Blanker, Roger Beep and CTCSS / DCS. |
|
PNI-ML70 - CB antenna PNI ML70, length 70cm, 26-30MHz, 200W, magnet 145 mm included
| High performance CB PNI ML70 antennaThe performance of the product is closely related to the technical characteristics of the antenna in ideal conditions of installation and use: SWR <= 1.2, maximum applied power 200 W, impedance 50 Ohms, stainless steel, etc. |
Communication distanceCommunication distance is another decisive factor in the acquisition and use of a CB antenna. Thus, the communication distance of maximum 9 km is reached in ideal working conditions: calibrated antenna, open field without obstacles, the station with maximum legally allowed power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance. |
|
| Antenna lengthAntenna length is a very important factor that can influence the communication distance. Thus, the longer the antenna, the longer the range. The PNI ML70 antenna has a length of 70 cm (magnetic base included). |
Magnetic baseThe magnetic base PNI 145 / PL in the package is provided with a 4 m cable, enough to place the antenna on the dome, has a diameter of 145 mm and a strong magnet that gives the antenna stability even at high speeds. |
|
| Full packageThis kit is ready for assembly with the package: antenna, magnetic base with cable and PL259 plug, enclosure for calibration. All you have to do is mount the antenna on a magnetic base, connect it to a CB radio station and calibrate it to use it at maximum performance. |
Video presentation |
|
CB radio PNI Escort 8900 , 12V 24V, RF Gain, CTCSS DCS, Dual Watch UK |
| Product identification | |
| Product code | PNI-PACK93 |
| General characteristics of the radio station | |
| Model | Portable |
| Emission band type | AM-FM |
| Frequency | 26.965-27.405 MHz |
| channels | 40 |
| Microphone type | 6 pins |
| Speaker audio power | 3 W |
| Sensitivity (20dB SINAD) | 0.25 µV @ 12 dB SINAD |
| Emission power | 4 W |
| Mounting 1 DIN | Yes |
| feeding | 12 -24 V |
| Dimensions / Weight | 122 x 130 x 37mm / 660g |
| Special radio station features | |
| ASQ (automatic squelch) | Yes |
| Channel scan | Yes |
| RF Gain | Yes, 9 levels |
| Small Gain | Yes |
| Lock the keyboard | Yes |
| Noise filter | NB (Noise Blanker) |
| Multicolor screen | Yes |
| Beep the keyboard | Yes |
| Emergency channel button 9/19 | Yes |
| Additional speaker connection | Yes |
| Characteristics of the radio antenna | |
| Working frequency | 26 - 28 Mhz |
| Maximum power applied | 200 W |
| Minimum SWR in the center of the band | less than 1.2 |
| Antenna length | 70 cm (magnetic base included) |
| Working distance | 8 km |
| Impedance | 50 Ohms |
| Material | Stainless steel |
| Connector type | PL259 |
| Hole diameter | 16 mm |
| Magnetic base included | Yes |
| Magnetic base diameter | 100 x 18 x 5 cm |
| Cable length | 4 m |
| I earn | 4 dB |
| Polarization | vertically |
| The package contains | |
| CB radio station | Yes |
| CB radio antenna | Yes |
| Magnetic base | Yes |
| Plug PL259 | Yes |
| RG58 cable | Yes |
| Station power cable | Yes |
| Fixed mounting mount | Yes |
| Cigarette lighter plug | Yes |
| Microphone support | Yes |
| Station support | Yes |
| Microphone | Yes |
| User manual | Yes |
