| CB antenna performanceThe performance of the product is closely related to the technical characteristics of the antenna under ideal conditions of installation and use: SWR <= 1.2:1, maximum applied power 250 W, impedance 50 Ohms, stainless steel, etc. |
Communication distanceThe communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the communication distance of 10 km is achieved in ideal working conditions: calibrated antenna, open field without obstacles, the station with the maximum legally allowed power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can lead to a decrease in this distance. |
|
| Antenna lengthThe length of the antenna is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the range. The antenna in this kit has a length of 76 cm (magnetic base included). |
Magnetic baseThe magnetic base in this package is equipped with a 4 m cable, long enough to place the antenna on the dome, and a diameter of 125 mm. The strong magnet gives the antenna stability even at very high speeds. |
|
| Adjustable angleThis antenna can be tilted using the included thumbscrew to enter low-height passages, garages, or parking lots. Outside of these situations, a tilt greater than 30 degrees is not recommended as it may affect the antenna's performance. |

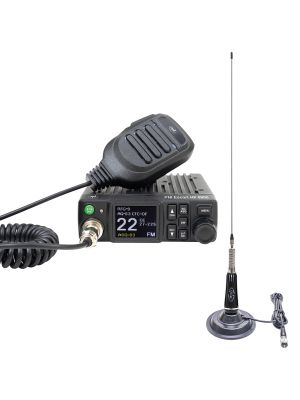

CB PNI Escort HP 8900 ASQ Radio Station Package, 12-24V + CB PNI S75 Antenna with Magnetic Base
PNI-HP8900 - CB radio station PNI Escort HP 8900 ASQ, 12V / 24V, RF Gain, Roger Beep, CTCSS-DCS, Dual Watch AM / FM switched only in the EU band
| Multi-norm CB radio stationBy changing the standard, a procedure that is easy to perform with a simple key combination, and by changing the modulation (AM/FM) depending on the standard, the PNI Escort HP 8900 CB radio station can be used in several countries in Europe, such as Romania, Italy, Spain, UK, Germany, Poland, etc. Consult the legislation of each country regarding the use of the CB band, the maximum permitted emission power and the need to hold a license or not before using the PNI station. |
Noise control functions: SQ, ASQ and RF GainThe PNI Escort HP 8900 CB radio station allows for the most accurate control over the background noise specific to the CB band. The 28-level adjustable SQ function and the 9-level adjustable ASQ allow the user to filter and eliminate noise, making communication clearer. The 9-level RF Gain function allows control over the reception frequency, reducing distortion. |
|
| 1.77" color screenThe large color LCD screen (1.77 inch) displays information such as current channel, frequency, modulation, signal strength (RX/TX), rate and active functions, being a reliable indicator of the station's operating status. |
Additional settings menuThe MENU key on the front panel of the radio allows direct access to the additional settings menu: screen brightness, key sound, automatic power on, as well as enabling, disabling and setting functions such as TOT, RF Gain, Noise Blanker, Roger Beep and CTCSS/DCS. |
|
PNI-S75 - CB antenna PNI S75 with butterfly, 26-28MHz, spike length 54 cm, 125mm magnet included
PNI-HP8900 - PNI Escort HP 8900 ASQ CB Radio Station, 12V/24V, RF Gain, Roger Beep, CTCSS-DCS, Dual Watch AM/FM switch to EU band only | |
|---|---|
| Product Identification | |
| Manufacturer | NIP |
| Product code | PNI-HP8900 |
| Product Type | CB radio station |
| General characteristics | |
| Pattern | Furniture |
| Transmission band type | AM/FM |
| Channels | 40 |
| Frequency | 26.965 - 27.405 MHz |
| Microphone Type (Pins) | 6 pins |
| Speaker Audio Power | 3 W |
| Sensitivity (20dB SINAD) | 0.25 μV @ 12 dB SINAD |
| Transmitting power | 4 W |
| EEPROM Memory | Yes |
| Power supply | 12 V / 24 V |
| Current Absorbed | 122 x 130 x 37 mm |
| Dimensions (W x H x D / Weight) | 660 g |
| 1DIN Mounting | Yes |
| Special features | |
| Dual Watch | Yes |
| Channel Scan | Yes |
| RF Gain | Yes, 9 levels |
| ASQ | Yes |
| Keyboard lock | Yes |
| Adjustable ASQ | Yes, on 9 levels |
| Emergency channels | Yes |
| Roger Beep | Yes |
| Noise filter | NB (Noise Blanker) / HI CUT |
| Multicolor display | Yes, blue |
| Channel Memories | Yes |
| SWR meter | Not |
| CTCSS / DCS (encoder/decoder) | Yes |
| Manual Squelch | Yes, 28 levels |
| S-meter | Yes |
| Accessory Connection | 1-pin jack |
| TOT (Time out Timer) | Yes |
| Operating temperature | -26°C ~ +80°C |
| Sound keys | Yes |
| Automatic start | Yes |
| Display Type | LCD |
| Channel monitoring | Yes |
| Display | Yes |
| Use, Destination | In the car, truck or at home |
| Rear panel connections | |
| Additional speaker connection | Yes |
| Headphone connection | Yes, 1 pin |
| The package contains | |
| Radio Station | Yes |
| Microphone | Yes |
| Radio station bracket and screws | Yes |
| Microphone holder and screws | Yes |
| Power Cord | Yes |
| Cigarette lighter plug | Yes |
| User Manual | Yes |
PNI-S75 - PNI S75 CB Antenna with Butterfly, 26-28MHz, Spike Length 54 cm, Magnet 125mm Included | |
|---|---|
| Product Identification | |
| Product code | PNI-S75 |
| Work Tape | CB |
| Product color (spike) | Silver |
| General characteristics | |
| Working frequency | 26 - 28 Mhz |
| Number of channels | |
| Maximum applied power | 250W |
| Minimum S.W.R. in the center of the band | less than 1.2:1 |
| Length | 76 cm including base |
| Impedance | 50 Ohm |
| Material | Stainless steel |
| Connector Type | PL |
| Cable length | 4m |
| Polarization | Vertical |
| Working distance | 10 km |
| Operating temperature | -26°C ~ +80°C |
| The package contains | |
| Radio Station Antenna | Yes |
| RG58 Cable | 4 m |
| PL259 Plug | Yes |
| Butterfly Screw | Yes |
| Magnetic base | 125 mm |
