| CB antenna performanceThe performance of the product is closely related to the technical characteristics of the antenna under ideal conditions of installation and use: SWR <= 1.2:1, maximum applied power 250 W, impedance 50 Ohms, stainless steel, etc. |
Communication distanceThe communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the communication distance of 10 km is achieved in ideal working conditions: calibrated antenna, open field without obstacles, the station with the maximum legally allowed power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can lead to a decrease in this distance. |
|
| Antenna lengthThe length of the antenna is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the range. The antenna in this kit has a length of 76 cm (magnetic base included). |
Magnetic baseThe magnetic base in this package is equipped with a 4 m cable, long enough to place the antenna on the dome, and a diameter of 125 mm. The strong magnet gives the antenna stability even at very high speeds. |
|
| Adjustable angleThis antenna can be tilted using the included thumbscrew to enter low-height passages, garages, or parking lots. Outside of these situations, a tilt greater than 30 degrees is not recommended as it may affect the antenna's performance. |

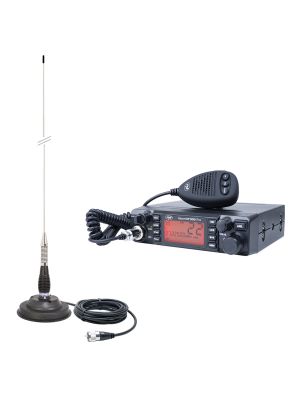

CB PNI ESCORT HP 9001 PRO ASQ radio station package + CB PNI S75 antenna with magnet
PNI-HP9001P - CB radio station PNI Escort HP 9001 PRO ASQ adjustable, AM-FM, 12V/24V, 4W, Scan, Dual Watch, ANL, multicolor screen
| 12V / 24V power supplyThe evolution of the previous PNI Escort HP 9001, the new PRO version adds the possibility of 24V power supply. PNI Escort HP 9001 PRO accompanies drivers of cars, trucks or trailers on the road. It is an excellent product, equipped with all the functions necessary for efficient communication. It is an easy-to-use communication tool. |
Multi-standard CB radio stationWith 80 AM/FM channels, with a power ranging from 1W to 4W depending on the country, the HP 9001 PRO easily adapts to the standards required in different European countries. With a simple key combination, you can change the specific operating standard in countries such as: Spain, Italy, France or Germany. |
|
| Adjustable ASQ, key lock functionWith compact dimensions, easy to install and equipped with essential functions (ASQ, Lock, Dual Watch, Scan, ANL, MEM) the PNI Escort HP 9001 is enriched with several buttons, including the one dedicated to emergency channels 9/19 and the backlit multifunctional screen. |
Multicolor screenFor maximum visual compliance, the HP 9001 PRO adapts to your needs by providing 7 background colors for the screen, such as: red, green, purple, blue and yellow. |
|
PNI-S75 - CB antenna PNI S75 with butterfly, 26-28MHz, spike length 54 cm, 125mm magnet included
PNI-HP9001P - PNI Escort HP 9001 PRO ASQ Adjustable CB Radio Station, AM-FM, 12V/24V, 4W, Scan, Dual Watch, ANL, Multicolor Display | |
|---|---|
| Product Identification | |
| Manufacturer | NIP |
| Product code | NIP-HP9001P |
| Product Type | CB radio station |
| General characteristics | |
| Pattern | Furniture |
| Transmission band type | AM/FM |
| Channels | 40 |
| Frequency | 26.965 - 27.405 MHz |
| Microphone Type (Pins) | 6 pins |
| Speaker Audio Power | 3 W |
| Sensitivity (20dB SINAD) | less than 0.5 μV AM/FM |
| Transmitting power | 4 W |
| Modulation | FM: 1.8KHz ± 0.2KHz, AM: 85-95% |
| Power supply | 12 V / 24 V |
| Current Absorbed | Maximum 2200mA |
| Dimensions (W x H x D / Weight) | 160 X 170 X 45 mm / 500g |
| 1DIN Mounting | Yes |
| Special features | |
| Dual Watch | Yes |
| Channel Scan | Yes |
| ASQ | Yes |
| Keyboard lock | Yes |
| CSF - last selected channel | Yes |
| Adjustable ASQ | Yes |
| Emergency channels | Yes |
| Noise filter | ANL (Automatic Noise Limiter) |
| Multicolor display | Red, Green, Purple, Blue, Yellow |
| Channel Memories | Yes |
| Operating temperature | -26°C ~ +80°C |
| Display Type | LCD |
| Channel monitoring | Yes |
| Display | Yes |
| Use, Destination | in the car, truck or in the house. |
| Rear panel connections | |
| Additional speaker connection | Yes |
| Microphone Connection | Yes |
| The package contains | |
| Radio Station | Yes |
| Microphone | Yes |
| Radio station bracket and screws | Yes |
| Microphone holder and screws | Yes |
| Power Cord | Yes |
| Cigarette lighter plug | Yes |
| User Manual | Yes |
PNI-S75 - PNI S75 CB Antenna with Butterfly, 26-28MHz, Spike Length 54 cm, Magnet 125mm Included | |
|---|---|
| Product Identification | |
| Product code | PNI-S75 |
| Work Tape | CB |
| Product color (spike) | Silver |
| General characteristics | |
| Working frequency | 26 - 28 Mhz |
| Number of channels | |
| Maximum applied power | 250W |
| Minimum S.W.R. in the center of the band | less than 1.2:1 |
| Length | 76 cm including base |
| Impedance | 50 Ohm |
| Material | Stainless steel |
| Connector Type | PL |
| Cable length | 4m |
| Polarization | Vertical |
| Working distance | 10 km |
| Operating temperature | -26°C ~ +80°C |
| The package contains | |
| Radio Station Antenna | Yes |
| RG58 Cable | 4 m |
| PL259 Plug | Yes |
| Butterfly Screw | Yes |
| Magnetic base | 125 mm |
