CB antenna performanceThe performance of the product is closely related to the technical characteristics of the antenna in ideal conditions of installation and use: SWR <= 1.2:1, maximum applied power 250 W, impedance 50 Ohms, stainless steel, etc. | |
Communication distanceThe communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the communication distance of 10 km is achieved under ideal working conditions: calibrated antenna, open field without obstacles, the station with the legally permitted maximum power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance. | |
Antenna lengthThe length of the antenna is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the range of action. The antenna in this kit is 76 cm long (magnetic base included). | |
Magnetic baseThe magnetic base in this package is provided with a 4 m cable, sufficient length for placing the antenna on the dome, and a diameter of 125 mm. The strong magnet gives the antenna stability even at very high speeds. | |
Adjustable angleThis antenna can be tilted with the help of the butterfly screw with which it is provided, to enter passages, garages or low-height parking lots. Apart from these situations, an inclination greater than 30 degrees is not recommended because it can affect the performance of the antenna. |

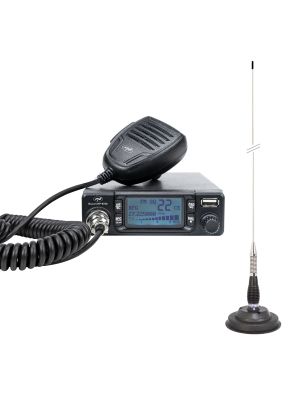

CB PNI Escort HP 9700 USB CB Radio Station and CB PNI S75 Antenna with Magnetic Base
PNI-HP9700USB - CB radio station PNI Escort HP 9700 USB, ANC, ASQ, 12V / 24V power supply, cigarette lighter socket included
Multi-norm CB radio stationBy changing the norm, the procedure is easy to execute with a simple combination of keys, and by changing the modulation (AM/FM) depending on the norm, the PNI Escort HP 9700 CB radio station can be used in several countries in Europe, such as Romania, Italy, Spain, UK, Germany, Poland, etc. Consult the legislation of each country regarding the use of the CB band, the maximum allowed emission power and the need or not to hold a license before using the PNI station. | |
Noise control functions: SQ, ASQ, RF Gain and ANCThe PNI Escort HP 9700 CB radio station allows the most faithful control over the background noise specific to the CB band. The adjustable SQ function on 28 levels and ASQ on 5 levels allow the user to filter and eliminate noises making communication clearer. The RF Gain function on 9 levels allows control over the reception frequency, reducing distortions. The ANC (Automatic Noise Cancelling) function automatically extracts and cancels the noise level on the reception. | |
Scan, Lock, EMG and USB portThe PNI Escort HP 9700 is a station that easily meets the basic needs of any CB band user. The channel scan function, key lock and immediate access to emergency channels (9/19) through the dedicated button make the HP 9700 an accessible, intuitive and easy-to-set station. The USB 5V 1.7A connector on the front panel offers the possibility of charging mobile devices. | |
Settings menuThe RFG/MENU key on the front panel allows direct access to the additional settings menu: setting the RF Gain level, activating/deactivating the ANC function, setting the brightness level and screen contrast. |
PNI-S75 - CB antenna PNI S75 with butterfly, 26-28MHz, spike length 54 cm, magnet 125mm included
Video presentation |
|
CB PNI Escort HP 9700 USB, ANC, ASQ radio station, 12V 24V power supply UK |
PNI-HP9700USB - CB radio station PNI Escort HP 9700 USB, ANC, ASQ, 12V / 24V power supply, cigarette lighter plug included | |
---|---|
Product identification | |
Producer | PNI |
Product code | PNI-HP9700USB |
Product type | CB radio station |
General characteristics | |
Model | Portable |
Emission band type | AM/FM |
channels | 40 |
Frequency | 26.965 - 27.405 MHz |
Microphone type (pins) | 6 pins |
Sensitivity (20dB SINAD) | greater than 1 µV AM/FM |
Emission power | 4 W |
Modulation | 70% - 90% (AM) / 1.9KHz (FM) |
feeding | 12 V / 24 V |
Dimensions (W x H x D / Weight) | 115 x 150 x 38 mm / 0.8 kg |
1DIN assembly | Yes |
Special features | |
Channel scan | Yes |
RF Gain | Yes, 9 levels |
ASQ | Yes, 5 levels |
Lock the keyboard | Yes |
Emergency channels | Yes |
Noise filter | ANC (Automatic Noise Cancelling) |
Multicolor screen | Blue |
Manual squelch | Yes, 28 levels |
Operating temperature | -26°C ~ +80°C |
Display type | LCD |
Channel monitoring | Yes |
Display | Yes |
Use, destination | in the car, truck, or at home |
Rear panel connections | |
Additional speaker connection | Yes |
Front panel connections | |
USB port | Yes |
The package contains | |
Radio station | Yes |
Microphone | Yes |
Support and screws for holding the radio station | Yes |
Microphone support and screws | Yes |
Power cord | Yes |
Cigarette lighter plug | Yes |
User manual | Yes |
PNI-S75 - CB antenna PNI S75 with butterfly, 26-28MHz, spike length 54 cm, magnet 125mm included | |
---|---|
Product identification | |
Product code | PNI-S75 |
Work tape | ? B |
Product color (spike) | Silver |
General characteristics | |
Working frequency | 26 - 28 Mhz |
Number of channels | |
Maximum power applied | 250W |
Minimum SWR in the center of the band | less than 1.2:1 |
Length | 76 cm including the base |
Impedance | 50 Ohms |
Material | Stainless steel |
Connector type | PL |
Cable length | 4 m |
Polarization | vertically |
Working distance | 10 km |
Operating temperature | -26°C ~ +80°C |
The package contains | |
Radio station antenna | Yes |
RG58 cable | 4 m |
Plug PL259 | Yes |
Butterfly screw | Yes |
Magnetic base | 125 mm |
