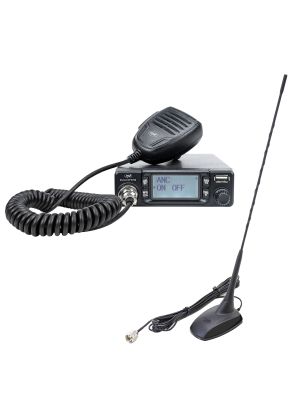

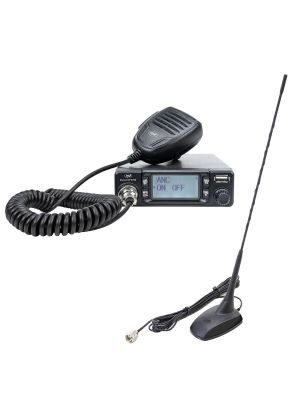

CB PNI Escort HP 9700 USB Radio Station Package and CB PNI Extra 45 Antenna with magnetic base
PNI-HP9700USB - CB radio station PNI Escort HP 9700 USB, ANC, ASQ, 12V / 24V power supply, cigarette lighter plug included
| Multi-norm CB radio stationBy changing the standard, a procedure that is easy to perform with a simple key combination, and by changing the modulation (AM/FM) depending on the standard, the PNI Escort HP 9700 CB radio station can be used in several countries in Europe, such as Romania, Italy, Spain, UK, Germany, Poland, etc. Consult the legislation of each country regarding the use of the CB band, the maximum permitted emission power and the need to hold a license or not before using the PNI station. |
Noise control functions: SQ, ASQ, RF Gain and ANCThe PNI Escort HP 9700 CB radio station allows the most accurate control over the background noise specific to the CB band. The 28-level adjustable SQ function and 5-level ASQ allow the user to filter and eliminate noise, making communication clearer. The 9-level RF Gain function allows control over the reception frequency, reducing distortion. The ANC (Automatic Noise Cancelling) function automatically extracts and cancels the noise level on reception. |
|
| Scan, Lock, EMG and USB portPNI Escort HP 9700 is a station that easily meets the basic needs of any CB band user. The channel scan function, key lock and immediate access to emergency channels (9/19) via the dedicated button make the HP 9700 an accessible, intuitive and easy-to-set station. The 5V 1.7A USB connector on the front panel offers the possibility of charging mobile devices. |
Settings menuThe RFG/MENU key on the front panel allows direct access to the additional settings menu: setting the RF Gain level, enabling/disabling the ANC function, setting the screen brightness and contrast level. |
|
PNI-EXTRA45 - PNI Extra 45 CB antenna, with magnet included, length 45 cm, SWR 1.0, 26-30MHz, 150W, fiberglass
Discreet and efficientThe PNI Extra 45 antenna is the smallest CB antenna (it is only 45 cm high) that can be mounted on both cars and vans or minibuses. Its small dimensions make it almost unnoticeable, easily confused with the radio antenna. |
|
| Easy installation and calibrationThe PNI Extra 45 antenna is easy to install, by simply screwing the spike onto the magnet fixed on the car's dome, but also to calibrate, by rotating the tip with a screw, until the desired performance is obtained. It is recommended that the antenna adjustment/calibration be carried out by specialized personnel with the relevant equipment. |
Aerodynamic designThe PNI Extra 45 antenna has a special aerodynamic design that allows air to slide around the spike, eliminating wind noise. |
|
Video presentation |
|
CB PNI Escort HP 9700 USB, ANC, ASQ radio station, 12V 24V power supply UK |
PNI-HP9700USB - PNI Escort HP 9700 USB CB Radio Station, ANC, ASQ, 12V / 24V Power Supply, PA Function, Cigarette Lighter Plug Included | |
|---|---|
| Product Identification | |
| Manufacturer | NIP |
| Product code | PNI-HP9700USB |
| Product Type | CB radio station |
| General characteristics | |
| Pattern | Furniture |
| Transmission band type | AM/FM |
| Channels | 40 |
| Frequency | 26.965 - 27.405 MHz |
| Microphone Type (Pins) | 6 pins |
| Sensitivity (20dB SINAD) | greater than 1 μV AM/FM |
| Transmitting power | 4 W |
| Modulation | 70% - 90% (AM) / 1.9KHz (FM) |
| Power supply | 12 V / 24 V |
| Dimensions (W x H x D / Weight) | 115 x 150 x 38 mm / 0.8 kg |
| 1DIN Mounting | Yes |
| Special features | |
| Channel Scan | Yes |
| RF Gain | Yes, 9 levels |
| ASQ | Yes, 5 levels |
| Keyboard lock | Yes |
| Emergency channels | Yes |
| Noise filter | ANC (Automatic Noise Canceling) |
| Multicolor display | Blue |
| Manual Squelch | Yes, 28 levels |
| Operating temperature | -26°C ~ +80°C |
| Display Type | LCD |
| Channel monitoring | Yes |
| Display | Yes |
| Use, Destination | in the car, truck, or in the house |
| Rear panel connections | |
| Additional speaker connection | Yes |
| Front panel connections | |
| Port USB | Yes |
| The package contains | |
| Radio Station | Yes |
| Microphone | Yes |
| Radio station bracket and screws | Yes |
| Microphone holder and screws | Yes |
| Power Cord | Yes |
| Cigarette lighter plug | Yes |
| User Manual | Yes |
PNI-EXTRA45 - PNI Extra 45 CB antenna, with magnet included, length 45 cm, SWR 1.0, 26-30MHz, 150W, fiberglass | |
|---|---|
| Product Identification | |
| Product code | NIP-EXTRA45 |
| Work Tape | CB |
| Product color (spike) | Black |
| General characteristics | |
| Working frequency | 26 - 30 MHz |
| Number of channels | 80 |
| Maximum applied power | 150W |
| Minimum S.W.R. in the center of the band | 1,0 |
| Length | 45cm |
| Impedance | 50 Ohm |
| Material | Fiberglass |
| Connector Type | PL |
| Cable length | 4m |
| Weight | 0.265 kg |
| Dimensions | Height 50 cm |
| Polarization | Vertical |
| Working distance | 10 km |
| Operating temperature | -26°C ~ +80°C |
| The package contains | |
| Radio Station Antenna | Yes |
| RG58 Cable | Not |
| RG174 Cable | Yes, 4 m |
| PL259 Plug | Yes |
| Magnetic base | Yes |
