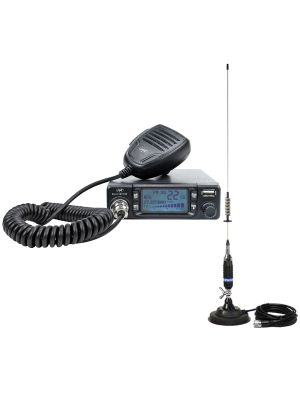

CB PNI Escort HP 9700 USB radio station package and CB PNI ML100 antenna with magnetic base
PNI-HP9700USB - CB radio station PNI Escort HP 9700 USB, ANC, ASQ, 12V / 24V power supply, cigarette lighter plug included
| Multi-norm CB radio stationBy changing the norm, the procedure is easy to execute with a simple combination of keys, and by changing the modulation (AM/FM) depending on the norm, the PNI Escort HP 9700 CB radio station can be used in several countries in Europe, such as Romania, Italy, Spain, UK, Germany, Poland, etc. Consult the legislation of each country regarding the use of the CB band, the maximum allowed emission power and the need or not to hold a license before using the PNI station. |
Noise control functions: SQ, ASQ, RF Gain and ANCThe PNI Escort HP 9700 CB radio station allows the most faithful control over the background noise specific to the CB band. The adjustable SQ function on 28 levels and ASQ on 5 levels allow the user to filter and eliminate noises making communication clearer. The 9-level RF Gain function allows control over the reception frequency, reducing distortions. The ANC (Automatic Noise Cancelling) function automatically extracts and cancels the noise level on the reception. |
|
| Scan, Lock, EMG and USB portThe PNI Escort HP 9700 is a station that easily meets the basic needs of any CB band user. The channel scan function, key lock and immediate access to emergency channels (9/19) through the dedicated button make the HP 9700 an accessible, intuitive and easy-to-set station. The USB 5V 1.7A connector on the front panel offers the possibility of charging mobile devices. |
Settings menuThe RFG/MENU key on the front panel allows direct access to the additional settings menu: setting the RF Gain level, activating/deactivating the ANC function, setting the brightness level and screen contrast. |
|
PNI-ML100 - PNI ML100 CB antenna, length 100 cm, 26-30MHz, 250W, 125mm magnet included
| CB antenna performance PNI ML100The performance of the product is closely related to the technical characteristics of the antenna in ideal conditions of installation and use: SWR <= 1.0, maximum power applied 250 W continuously, impedance 50 Ohms, stainless steel, etc. |
Communication distanceThe communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the maximum communication distance of 12 km is achieved under ideal working conditions: calibrated antenna, open field without obstacles, the station with the legally permitted maximum power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance. |
|
| Antenna lengthThe length of the antenna is a very important factor that can influence the communication distance. Thus, the longer the antenna, the greater the range of action. The PNI ML100 antenna is 110 cm long (magnetic base included). |
Magnetic baseThe magnetic base 120/PL in the package is provided with a 4 m cable, enough to place the antenna on the dome, it has a diameter of 125 mm and a strong magnet that gives the antenna stability even at high speeds. |
|
| Complete packageThis kit is ready for assembly with: antenna, magnetic base with cable and plug PL259, Allen key for calibration. All you have to do is mount the antenna on the magnetic base, connect it to a CB radio station and calibrate it to use it at maximum performance. |
Video presentation |
|
CB PNI Escort HP 9700 USB, ANC, ASQ radio station, 12V 24V power supply UK |
PNI-HP9700USB - CB radio station PNI Escort HP 9700 USB, ANC, ASQ, 12V / 24V power supply, cigarette lighter plug included | |
|---|---|
| Product identification | |
| Producer | PNI |
| Product code | PNI-HP9700USB |
| Product type | CB radio station |
| General characteristics | |
| Exemplary | Portable |
| Emission band type | AM/FM |
| channels | 40 |
| Frequency | 26.965 - 27.405 MHz |
| Microphone type (pins) | 6 pins |
| Sensitivity (20dB SINAD) | greater than 1 µV AM/FM |
| Emission power | 4 W |
| Modulation | 70% - 90% (AM) / 1.9KHz (FM) |
| feeding | 12 V / 24 V |
| Dimensions (W x H x D / Weight) | 115 x 150 x 38 mm / 0.8 kg |
| 1DIN assembly | Yes |
| Special features | |
| Channel scan | Yes |
| RF Gain | Yes, 9 levels |
| ASQ | Yes, 5 levels |
| Lock the keyboard | Yes |
| Emergency channels | Yes |
| Noise filter | ANC (Automatic Noise Cancelling) |
| Multicolor screen | Blue |
| Manual squelch | Yes, 28 levels |
| Operating temperature | -26°C ~ +80°C |
| Display type | LCD |
| Channel monitoring | Yes |
| Display | Yes |
| Use, destination | in the car, truck, or at home |
| Rear panel connections | |
| Additional speaker connection | Yes |
| Front panel connections | |
| USB port | Yes |
| The package contains | |
| Radio station | Yes |
| Microphone | Yes |
| Support and screws for holding the radio station | Yes |
| Microphone support and screws | Yes |
| Power cord | Yes |
| Cigarette lighter plug | Yes |
| User manual | Yes |
PNI-ML100 - PNI ML100 CB antenna, length 100 cm, 26-30MHz, 250W, 125mm magnet included | |
|---|---|
| Product identification | |
| Product code | PNI-ML100 |
| Work tape | ? B |
| Product color (spike) | Silver |
| General characteristics | |
| Working frequency | 26 - 28 Mhz |
| Number of channels | 90 |
| Maximum power applied | 250W |
| Minimum SWR in the center of the band | 1.0 |
| Length | 100 cm (110 cm with base included) |
| Impedance | 50 Ohms |
| Material | Stainless steel |
| Connector type | PL |
| Hole diameter | 16 mm |
| Cable length | 4 m |
| Weight | 1.2 Kg |
| size | 1000 x 150 x 40 mm |
| Gain | 4 dBi |
| Working distance | 12 km |
| Operating temperature | -26°C ~ +80°C |
| The package contains | |
| Radio station antenna | Yes |
| RG58 cable | 4 m |
| Plug PL259 | Yes |
| Magnetic base | 125 mm |
