CB radio station kit PNI Escort HP 2020 single channel 22 with CB antenna PNI Extra 45 with magnet
PNI-HP2020 - CB radio station PNI Escort HP 2020 single channel 22 frequency 27.225 MHz, no noise, probably the quietest station.
|
One channel, one frequencyThe CB PNI Escort HP 2020 CB PNI Escort HP 2020 is the latest PNI innovation. The station comes factory preset to a single frequency, 27.225 MHz, a single modulation (FM) and a single channel, channel No. 22. The CB PNI Escort HP 2020 is dedicated for exclusive use in Romania. |
Basic functionsEquipped with the basic functions, automatic and manual Squelch control, the PNI Escort HP 2020 becomes extremely easy to use. You just need to power it (12V) and connect it to a calibrated external antenna. Press the PTT button and start broadcasting immediately. Forget the hassle of setting the various functions that CB stations are usually equipped with. Activate squelch manually or automatically only if needed, depending on the background noise on the band. |
|
|
In shortThe PNI Escort HP 2020 is a simple station reduced to basic functions. With LED indicators for operating status (on/off) and transmit/receive status, the PNI HP 2020 really becomes a driver's must-have, with no additional settings, no norm and channel setting, no enabling/disabling of functions. You install it, power it and fully enjoy all the advantages of CB communication. |
PNI-EXTRA45 - CB Antenna PNI Extra 45, with magnet included, length 45 cm, SWR 1.0, 26-30MHz, 150W, glass fiber
Discreet and efficientThe PNI Extra 45 is the smallest CB antenna (only 45 cm high) that can be mounted on cars, vans and minibuses. Its small size makes it almost unrecognizable, easily mistaken for a radio antenna. |
|
|
Easy installation and calibrationThe PNI Extra 45 antenna is easy to install, by simply screwing the spike on the magnet fixed on the dome of the car, but also to calibrate, by rotating the screwed spike until the desired performance is achieved. It is recommended that the adjustment/calibration of the antenna should be carried out by specialized personnel with the appropriate equipment. |
Streamlined designThe PNI Extra 45 antenna has a special aerodynamic design that allows the air to glide around the horn, eliminating wind noise. |
|
Video presentation |
|
CB PNI Escort HP 2020 single channel 22 radio station UK |
PNI-HP2020 - PNI Escort HP 2020 CB radio station single channel 22 frequency 27.225 MHz, no noise, probably the quietest station. | |
---|---|
Product Identification | |
Manufacturer | NIP |
Product code | PNI-HP2020 |
Product Type | CB radio station |
General characteristics | |
Pattern | Furniture |
Transmission band type | FM |
Channels | Channel no. 22 |
Frequency | 27.225 MHz |
Speaker Audio Power | 2 W |
Sensitivity (20dB SINAD) | -120 dBm |
Transmitting power | 4 W |
Power supply | 12 V |
Dimensions (W x H x D / Weight) | 115 x 150 x 35 mm / 513 gr |
1DIN Mounting | Yes |
Special features | |
Adjustable ASQ | |
Digital Automatic Squelch (ASQ) | Yes |
Manual Squelch | Yes |
Operating temperature | -26°C ~ +80°C |
Rear panel connections | |
Additional speaker connection | Yes |
The package contains | |
Radio Station | Yes |
Microphone | Yes |
Radio station bracket and screws | Yes |
Microphone holder and screws | Yes |
Cigarette lighter plug | Yes |
User Manual | Yes |
PNI-EXTRA45 - PNI Extra 45 CB antenna, with magnet included, length 45 cm, SWR 1.0, 26-30MHz, 150W, fiberglass | |
---|---|
Product Identification | |
Product code | NIP-EXTRA45 |
Work Tape | CB |
Product color (spike) | Black |
General characteristics | |
Working frequency | 26 - 30 MHz |
Number of channels | 80 |
Maximum applied power | 150W |
Minimum S.W.R. in the center of the band | 1,0 |
Length | 45cm |
Impedance | 50 Ohm |
Material | Fiberglass |
Connector Type | PL |
Cable length | 4m |
Weight | 0.265 kg |
Dimensions | Height 50 cm |
Polarization | Vertical |
Working distance | 10 km |
Operating temperature | -26°C ~ +80°C |
The package contains | |
Radio Station Antenna | Yes |
RG58 Cable | Not |
RG174 Cable | Yes, 4 m |
PL259 Plug | Yes |

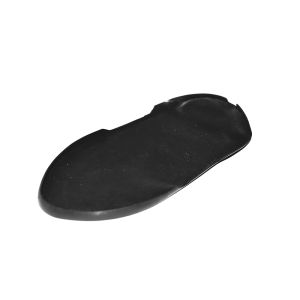

Magnetic base | Yes |
