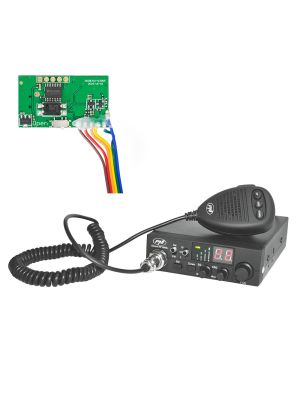

CB radio station PNI Escort HP 6500 Echo, 12V, RF Gain, ASQ, with echo module and roger beep included

Simplicity with maximum effect

Escort HP 6500 is the new ultra compact radio station from PNI. Measuring just 110 X 120 X 28 mm, the station can fit into even the smallest of spaces.

Easy to install : just plug it into the cigarette lighter socket and the outdoor antenna mounted on the car dome.

The PNI Escort HP 6500 CB radio has been designed with simplicity in mind so that anyone can use it with ease. The high-quality electret condenser encapsulated in the microphone provides clear and powerful sound.

By intelligently designing the circuits on the motherboard and integrating new components, including a state-of-the-art processor, the PNI Escort HP 6500 is now even more reliable with even better performance.

The PNI Escort HP 6500 is designed to give you trouble-free communication every day. From the advanced circuitry inside to the durable metal chassis, the HP 6500 can give you the superior performance you'd expect from a PNI station.

Multi-standard and multi-band CB station, use in the UK and anywhere in Europe, AM/FM modulation

By setting the rate and modulation, you can use the station in the UK and most European Union countries.

The PNI Escort HP 6500 is equipped with the main European bands ( EU, CE, UK, PL, I, I2, dE, In ) and with AM/FM operation.

Note: before changing the modulation, check the selected norm. If the selected standard does not support AM modulation (such as the CE, UK and dE 41CH-80CH standards), pressing the A/F key on the station will have no effect .

Dual Squelch, SQ and ASQ. RF Gain function

The PNI Escort HP 6500 is enhanced with a 9-level configurable Automatic Digital Squelch and 28-level configurable Manual Squelch . The RF Gain function (for controlling the radio reception gain) is also configurable to 9 levels.

Functions in brief : 4W emission power, 12V power supply, 40 channels, AM/FM modulation, emergency channels 9-19, RJ11 connector for microphone, additional jack for external speaker.

PNI VX6500, compatible microphone with VOX function and ANC filter

The VOX function allows the CB user to automatically transmit without pressing the PTT (Push-to-Talk) key. The broadcast is activated when the sound (voice) exceeds a certain level.

To avoid accidental emission, the PNI VX6500 microphone has two VOX emission control functions:

- VOX sensitivity adjustment function . 4 levels of sensitivity are available. We recommend setting the microphone to sensitivity level 1 (the least sensitive) to avoid unintentionally activating the emission in background sounds or secondary conversations.

- the emission delay adjustment function (VOX delay) . This function sets the period between the moment you started talking and the moment when the broadcast is activated. 4 levels are available. The shortest time is on level 1.

The PNI VX6500 microphone can be purchased separately.

Echo mode and roger beep

The PNI ECH01 echo and roger beep module has been designed to work with any radio station in the CB and VHF/UHF band as an add-on module.

The main functions of the module are:
• Echo : Generating the echo effect of the signal captured by the radio station's microphone and inserting it into the modulation stage;
• Roger beep : Generating a personalized signal (via MP3 audio file) upon completion of the broadcast and maintaining it.

Custom Roger Beep effect

Connect the module to a computer and copy the customized audio file (MP3 or WAV, maximum duration 1.5 seconds) according to the instructions in the manual.

As a result, at the end of each broadcast, you will also transmit the customized audio signal that will be received by the other CB users as an end-of-broadcast warning.

Make yourself stand out in traffic with PNI's echo and roger beep mode.

Compatibility

The PNI ECH01 echo and roger beep module is compatible with any CB or VHF/UHF radio station regardless of brand.

Add these two new functions to your station and you will make a difference: your received voice will be distinguished from others by the echo effect, and the end of your broadcast will be marked by an original audio signal.

Connect to computer and copy custom sound

To write another sound (beep of maximum 1.5 seconds) edited in MP3 or WAV format, you must connect the PNI ECH01 module via micro USB cable to the laptop (computer) and activate the power switch.

In a few seconds the laptop will find the xx MB memory, then by normal copying transfer the file to the memory of the PNI ECH01 module.

Do not forget to switch the PNI ECH01 module switch to the initial working position.
