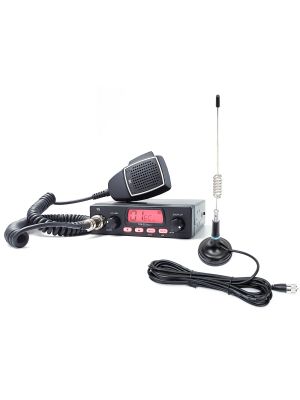

CB TTi TCB-550 EVO radio station kit + PNI ML70 antenna with magnet, 70cm, 26-30MHz, 200W
PNI-TCB-550EVO - CB radio station TTi TCB-550 EVO, DSS, VOX, NB filter, Scan, multicolor screen, 12-24V
Always in EVOLUTIONThe new TTi TCB-550 EVO CB radio station brings several new functions and features compared to the previous model, among which we mention VOX that allows speaking into the microphone without pressing the PTT key, NB filter for a clearer and distortion-free reception, multi-color display and the possibility 12V or 24V power supply. | |
Automatic tuning with automatic DSS squelchThe CB TTi TCB-550 EVO radio station complies with the European standards in force and allows communication on the 40 channels in the 27 MHz band used for info traffic. The station allows you to communicate in both types of bands: AM and FM. It is also equipped with a quick selector of emergency and international infotraffic channels, namely 9-19. . | |
Ergonomic microphone with 4 pinsRadio communication is done in the simplex system with the help of the microphone and speaker: - one speaks and the others listen. By activating the VOX function you can communicate without pressing the PTT key. The microphone is full size, easy to handle and electret type with 4 pin plug. | |
Ready to goYou can use the product in any car as it is one of the smallest CB stations on the market. Robust and with a pleasant design, it can be placed in any location: armrest, dashboard, between the seats, without being uncomfortable or disturbing. The novelty of this model is given by the dual 12-24V power supply. |
PNI-ML70 - PNI ML70 CB antenna, length 70cm, 26-30MHz, 200W, magnet 145 mm included
CB antenna performance PNI ML70The performance of the product is closely related to the technical characteristics of the antenna in ideal conditions of installation and use: SWR <= 1.2, maximum applied power 200 W, impedance 50 Ohms, stainless steel, etc. | |
Communication distanceThe communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the maximum communication distance of 9 km is achieved in ideal working conditions: calibrated antenna, open field without obstacles, the station with the legally permitted maximum power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance. | |
Antenna lengthThe length of the antenna is a very important factor that can influence the communication distance. Thus, the longer the antenna, the greater the range of action. The PNI ML70 antenna is 70 cm long (magnetic base included). | |
Magnetic baseThe PNI 145/PL magnetic base in the package is provided with a 4 m cable, sufficient for placing the antenna on the dome, it has a diameter of 145 mm and a strong magnet that gives the antenna stability even at high speeds. | |
Full packageThis kit is ready for assembly with: antenna, magnetic base with cable and plug PL259, Allen key for calibration. All you have to do is mount the antenna on the magnetic base, connect it to a CB radio station and calibrate it to use it at maximum performance. |
PNI-TCB-550EVO - CB radio station TTi TCB-550 EVO, DSS, VOX, NB filter, Scan, multicolor screen, 12-24V | |
---|---|
Product identification | |
Producer | TT |
Product code | PNI-TCB-550EVO |
Product type | CB radio station |
General characteristics | |
Model | Portable |
Emission band type | AM/FM |
channels | 40 |
Frequency | 26.965 - 27.405 MHz |
Microphone type (pins) | 4 pins |
Speaker audio power | 2W |
Sensitivity (20dB SINAD) | 0.7㎶ for 10dB (S+N)/N in AM mode / 0.7㎶ for 20dB SINAD in FM mode |
Audio signal distortion | less than 8% @ 1KHz |
Emission power | 4 W |
Modulation | FM: 1.8KHz ± 0.2KHz, AM: 85-95% |
EEPROM memory | Yes |
feeding | 12 V / 24 V |
Dimensions (W x H x D / Weight) | 135 X 125 X 35 mm / 767 gr |
Special features | |
Channel scan | Yes |
ASQ | Yes |
Noise filter | NB (Noise Blanker) |
Multicolor screen | Yes, 3 colors |
VOX | Yes |
Manual squelch | Yes |
TOT (Time out Timer) | Yes |
Operating temperature | -10°C ~ +55°C |
Screen lighting | Yes |
Key lighting | Yes |
Rear panel connections | |
Additional speaker connection | Yes |
Bluetooth dongle connection | Yes |
The package contains | |
Radio station | Yes |
Microphone | Yes |
Support and screws for holding the radio station | Yes |
Microphone support and screws | Yes |
Power cord | Yes |
Cigarette lighter plug | Yes |
User manual | Yes |
PNI-ML70 - PNI ML70 CB antenna, length 70cm, 26-30MHz, 200W, magnet 145 mm included | |
---|---|
Product identification | |
Product code | PNI-ML70 |
Work tape | ? B |
Product color (spike) | Black |
General characteristics | |
Working frequency | 26 - 28 Mhz |
Number of channels | |
Maximum power applied | 200W |
Minimum SWR in the center of the band | less than 1.2 |
Length | 70 cm (magnetic base included) |
Impedance | 50 Ohms |
Material | Stainless steel |
Connector type | PL |
Hole diameter | 16 mm |
Cable length | 4 m |
Weight | 800g |
size | 100 x 18 x 5 cm |
I earn | 4 dBi |
Working distance | 8 km |
Operating temperature | -26°C ~ +80°C |
The package contains | |
Radio station antenna | Yes |
RG58 cable | 4 m |
Plug PL259 | Yes |
Magnetic base | 145 mm |
