CB TTi TCB-900 EVO radio station with antenna

CB TTi TCB-900 EVO radio station kit + PNI Extra 45 CB antenna with magnet

CB TTi TCB-900 EVO radio station with antenna

CB TTi TCB-900 EVO radio station kit + PNI Extra 48 CB antenna with magnet

CB TTi TCB-900 EVO radio station kit + PNI ML160 CB antenna with magnet

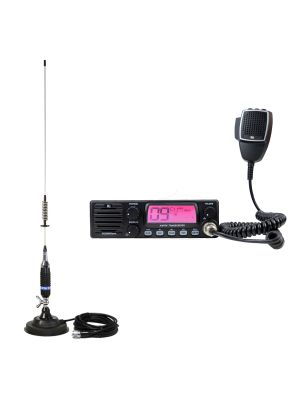

CB radio station TTi TCB-900 EVO, DSS, SQ, 12V-24V with CB antenna PNI ML160, 155cm included
£107.83
Availability: In stock
SKU
TTI-PACK75

PNI-TCB-900EVO - CB TTi TCB-900 EVO, DSS, SQ, Dual Watch, Mic Gain, 12V-24V, Bluetooth dongle connector



DSS - Automatic Squelch

The product CB TTi TCB-900 EVO is equipped with an automatic squelch system called Dynamic Squelch System (DSS) which allows a very good filtering of conversations and CB reception (Citizen Band).

TTI-TCB-900-DSS

Dual Voltage

TCB-900-EVO-2

An advantage of this product is the dual power supply both 12 V and 24 V which allows the use in cars as well as trucks, dump trucks, coaches that have 24 V electrical installation.

Front Speaker

The TTi TCB-900 EVO TCB-900 EVO is equipped with a front speaker, again an advantage if it will be mounted in the dashboard, or in the front panel of the cab of a truck, truck, or coach. So the sound is heard clearly and loudly in the direction of the user.

TCB-900-EVO-3

1 DIN format

TCB-900-EVO-4

The housing format is 1 DIN identical to classic car stereos. Thus it fits into the specially designed slots found in cars, trucks, dump trucks and coaches.

Multi-Band

Now ham radio operators can also benefit from the advantages of this product, with the TTi TCB-900 having 11 bands usable in Europe and beyond.

TCB-900-EVO-5

VOX function

TCB-900-EVO-8

The VOX function of the TTB TTB-900 allows hands-free communication with the microphone picking up the voice from a distance. The function is also accompanied by a sensitivity adjustment which is very useful if the distance to the microphone varies.

Special functions

The TTi TCB-900 EVO TCB-900 EVO has in addition to the classic functions, a number of special functions that can help in the use of the product such as: ATT, Mute, Lock, BL, + a special menu with some additional settings.

TCB-900-EVO-6

Ready to use

TCB-900-EVO-7

The TTi TCB-900 EVO TCB-900 EVO radio is ready for immediate use. All you have to do is attach a calibrated antenna, plug it into the car cigarette lighter socket or directly to the battery and turn it on to channel 22. The product comes with station holder, microphone holder and mounting screws.

PNI-ML160FC - CB Antenna PNI ML160, length 145 cm, 26-30MHz, 600W, without cable



PNI ML160 Performante

Performance

The performance of the product is closely related to the technical characteristics that the antenna has in ideal conditions of mounting and use: SWR < 1.1, maximum applied power 600 W, impedance 50 Ohms, stainless steel etc.

Communication distance

Communication distance is another decisive factor in the purchase and use of a CB antenna. Thus the maximum communication distance of 15 km or even more is reached under ideal working conditions: Calibrated antenna, open field without obstacles, station with maximum legally allowed power of 4W and standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance.

PNI ML160 Distanta de comunicare

PN ML 160 Distanta de comunicare

Length

Antenna length is another very important factor that can influence the communication distance in traffic. So the longer the antenna, the greater the communication distance / range. In this case 145 cm .

PNI-145-PL - Magnetic base PNI 145/PL 145mm contains 4m cable and PL259 plug



Magnetic base

The magnetic base PNI 145/PL has a diameter of 145 mm, a size that gives the antenna stability even at high speeds, with a pleasant design.

Baza magnetica PNI 145/PL diametru 145mm

Baza magnetica PNI 145/PL 145mm

Threaded clamping

The PNI145/PL base is compatible with antennas that have an internal threaded mounting system.

Cable length

Cable length is an important factor when choosing a magnetic base. The base of the PNI 145/PL has a quality cable with a length of 4 m, which allows the antenna to be placed on the dome of the car without any problem, and the cable to be placed in such a way that it does not distract the passengers.

Baza magnetica PNI 145/PL

Baza magnetica PNI 145/PL 145mm

Strong magnet

The PNI145/PL base has a strong magnet for its size, which gives it a very good grip on the car dome, and strength and stability even at high speeds.

PL259 plug

The PNI 145/PL magnet base is equipped with RG58 coaxial cable and PL259 plug for direct connection to the base station.

baza magnetica cu filet, cablu si mufa

Suport cauciuc

Rubber mount included

In order to protect the dome of the car from scratches, but without affecting the optimal functioning of the antenna, the magnetic base 145/PL is provided with a thin and resistant rubber support, which also protects the connections and the soldering inside the base from water.

Write Your Own Review
You're reviewing:CB TTi TCB-900 EVO radio station kit + PNI ML160 CB antenna with magnet
Your Rating
Product identification
Manufacturer TTi
Product Code PNI-TCB-900EVO
Product Type CB radio
General Features
Model Mobile
Band type AM / FM
Channels 40
Frequency 26.965 - 27.405 MHz
Microphone type (pins) 6 pin
Audio speaker power 2 W
Sensitivity (20dB SINAD) 0.7㎶ for 10dB (S+N)/N in AM mode / 0.7㎶ for 20dB SINAD in FM mode
Audio signal distortion less than 8% @ 1KHz
Transmit Power 4 W
Power supply 12 V / 24 V
Absorbed current max. 1.6A
Dimensions (W x H x H / Weight) 170 x 90 x 50 mm / 764 gr
Mounting 1DIN Yes
Special Features
Dual Watch Yes
Channel Scan Yes
Mic Gain Yes
ASQ From
Key Lock Yes
LCR - last selected channel Yes
Adjustable ASQ
Emergency channels Yes
Multicolor display Yes
VOX From
Manual Squelch Yes
Accessory connection 1 pin plug
Operating temperature -26°C ~ +80°C
Key sound Yes
PTT (Push To Talk) Yes
Display illumination Yes
Key illumination Yes
Rear panel connections
Additional speaker connection Yes
Bluetooth dongle connection Yes
Package contains
Radio Yes
Microphone Yes
Bracket and screws for radio Yes
Microphone mounting bracket and screws Yes
Power cable Yes
Lighter plug Yes
User manual Yes
1DIN mounting housing



PNI-145-PL
Lang Type Name Link
EU10 Declaration of Conformity Declaration of conformity EU10 Link
EU10 User manual User manual EU10 Link

PNI-TCB-900EVO
Lang Type Name Link
EU2 User manual User manual EN, RO Link
RO Declaration of Conformity Declaration of conformity RO Link
