CB antenna performanceThe performance of the product is closely related to the technical characteristics that the antenna has in ideal conditions of mounting and use: SWR <= 1.2:1, maximum applied power 250 W, impedance 50 Ohms, stainless steel etc. |
Communication distanceCommunication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the communication distance of 10 km is achieved under ideal working conditions: calibrated antenna, open field without obstacles, station with maximum legal admissible power of 4W and standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance. |
|
|
Antenna lengthAntenna length is another very important factor that can influence the communication distance in traffic. The longer the antenna, the greater the range. The antenna in this kit is 76 cm long (magnetic base included). |
Magnetic baseThe magnetic base in this package is provided with a 4 m cable, long enough to place the antenna on the dome, and a diameter of 125 mm. The strong magnet gives the antenna stability even at very high speeds. |
|
|
Adjustable angleThis antenna can be tilted with the supplied butterfly screw to fit into passageways, garages or parking lots with low height. Other than these situations an inclination of more than 30 degrees is not recommended as it may affect the performance of the antenna. |

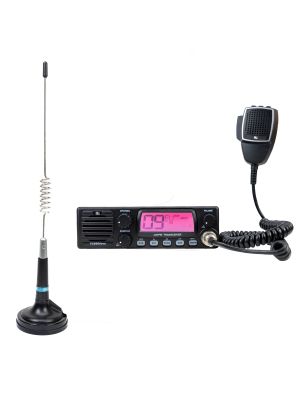

CB TTi TCB-900 EVO radio station kit + PNI S75 CB antenna with magnet
PNI-TCB-900EVO - CB TTi TCB-900 EVO, DSS, SQ, Dual Watch, Mic Gain, 12V-24V, Bluetooth dongle connector
DSS - Automatic Squelch |
|
The product CB TTi TCB-900 EVO is equipped with an automatic squelch system called Dynamic Squelch System (DSS) which allows a very good filtering of conversations and CB reception (Citizen Band). |
|
Dual Voltage |
|
An advantage of this product is the dual power supply both 12 V and 24 V which allows the use in cars as well as trucks, dump trucks, coaches that have 24 V electrical installation. |
|
Front Speaker |
|
The TTi TCB-900 EVO TCB-900 EVO is equipped with a front speaker, again an advantage if it will be mounted in the dashboard, or in the front panel of the cab of a truck, truck, or coach. So the sound is heard clearly and loudly in the direction of the user. |
|
1 DIN format |
|
The housing format is 1 DIN identical to classic car stereos. Thus it fits into the specially designed slots found in cars, trucks, dump trucks and coaches. |
|
Multi-Band |
|
Now ham radio operators can also benefit from the advantages of this product, with the TTi TCB-900 having 11 bands usable in Europe and beyond. |
|
VOX function |
|
The VOX function of the TTB TTB-900 allows hands-free communication with the microphone picking up the voice from a distance. The function is also accompanied by a sensitivity adjustment which is very useful if the distance to the microphone varies. |
|
Special functions |
|
The TTi TCB-900 EVO TCB-900 EVO has in addition to the classic functions, a number of special functions that can help in the use of the product such as: ATT, Mute, Lock, BL, + a special menu with some additional settings. |
|
Ready to use |
|
The TTi TCB-900 EVO TCB-900 EVO radio is ready for immediate use. All you need to do is attach a calibrated antenna, connect it to the car cigarette lighter socket or directly to the battery and turn it on to channel 22. The product comes with station holder, microphone holder and mounting screws. |
PNI-S75 - PNI S75 CB Antenna with butterfly, 26-28MHz, 54 cm spike length, magnet 125mm included
Product identification | |
Manufacturer | TTi |
Product Code | PNI-TCB-900EVO |
Product Type | CB radio |
General Features | |
Model | Mobile |
Band type | AM / FM |
Channels | 40 |
Frequency | 26.965 - 27.405 MHz |
Microphone type (pins) | 6 pin |
Audio speaker power | 2 W |
Sensitivity (20dB SINAD) | 0.7㎶ for 10dB (S+N)/N in AM mode / 0.7㎶ for 20dB SINAD in FM mode |
Audio signal distortion | less than 8% @ 1KHz |
Transmit Power | 4 W |
Power supply | 12 V / 24 V |
Absorbed current | max. 1.6A |
Dimensions (W x H x H / Weight) | 170 x 90 x 50 mm / 764 gr |
Mounting 1DIN | Yes |
Special Features | |
Dual Watch | Yes |
Channel Scan | Yes |
Mic Gain | Yes |
ASQ | From |
Key Lock | Yes |
LCR - last selected channel | Yes |
Adjustable ASQ | |
Emergency channels | Yes |
Multicolor display | Yes |
VOX | From |
Manual Squelch | Yes |
Accessory connection | 1 pin plug |
Operating temperature | -26°C ~ +80°C |
Key sound | Yes |
PTT (Push To Talk) | Yes |
Display illumination | Yes |
Key illumination | Yes |
Rear panel connections | |
Additional speaker connection | Yes |
Bluetooth dongle connection | Yes |
Package contains | |
Radio | Yes |
Microphone | Yes |
Bracket and screws for radio | Yes |
Microphone mounting bracket and screws | Yes |
Power cable | Yes |
Lighter plug | Yes |
User manual | Yes |

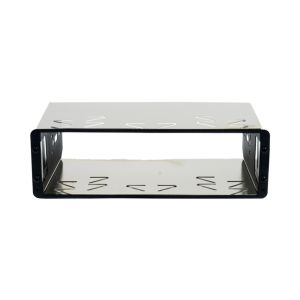

1DIN mounting housing |
