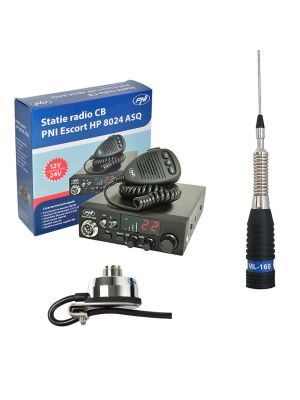

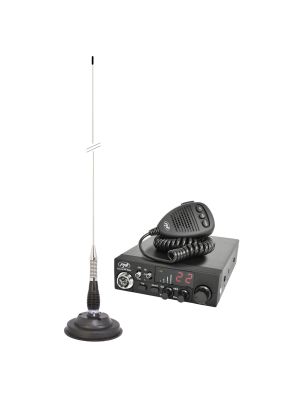

CBI CB PNI ESCORT Station CB 8024 ASQ + CB PNI ML160 antenna with magnet
Dual power supply 12V-24V dc | |
The CB PNI Escort HP 8024 radio station can be mounted both on cars with 12V power supply and on trucks or TIRs with 24V power supply. | |
ASQ Adjustable | |
An innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of car CB radio stations. If until now we were used to activating/deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interference, background noise and jamming in the CB band. | |
ASQ button on microphone | |
For increased comfort behind the wheel, PNI has positioned the automatic squelch (ASQ) activation/deactivation button on the microphone. Besides this, we also find the up/down buttons for changing channels. | |
Key lock switch | |
The PNI Escort HP 8024 CB radio station has a switch on the front panel that allows the selection of the emergency channel (19), the normal mode of operation (CH) and the activation of the key lock function (L), a useful function in situations where you want to avoid touching accidental pressing of the station keys. | |
Reduced dimensions | |
You can use the product in any car, because it is one of the smallest CB radio stations on the market. Robust and with a pleasant design, it can be placed in any location: armrest, dashboard, between the seats, without being uncomfortable or disturbing. |
Video presentation |
|
CB PNI Escort HP 8024 ASQ Escort radio stationsThe PNI 145 PL 145mm |
General characteristics of the radio station | |
Exemplary | Portable |
Emission band type | AM-FM |
Frequency | 26.965-27.405 MHz |
channels | 40 AM/FM |
Microphone type | 6 pins |
Audio signal distortion | less than 8% @ 1 KHz |
Emission power | 4 W |
Modulation | FM: 1.8KHz ± 0.2KHz, AM: 85-95% |
feeding | 12 -24 V |
Consumption | 2 A |
Dimensions / Weight | 115 x 36 x 152 mm / 0.8 kg |
Special radio station features | |
ASQ (automatic squelch) | Yes |
Lock the keyboard | Yes |
Emergency channel button 9/19 | Yes |
Adjustable ASQ | Yes |
Characteristics of the radio antenna | |
Working frequency | 25 - 30 MHz |
Number of channels | 90 |
Maximum power applied | 600 W |
Minimum SWR in the center of the band | 1.0 |
Antenna length | 150 cm |
Working distance | 15 km |
Impedance | 50 Ohms |
Material | Stainless steel |
Connector type | PL259 |
Magnetic base included | Yes |
Magnetic base diameter | 145 mm |
Cable length | 4 m |
The package contains | |
CB radio station | Yes |
CB radio antenna | Yes |
Magnetic base | Yes |
PNI-HP8024 |
| ||||||||||||
PNI-145-PL |
| ||||||||||||
PNI-PACK15 |
|
