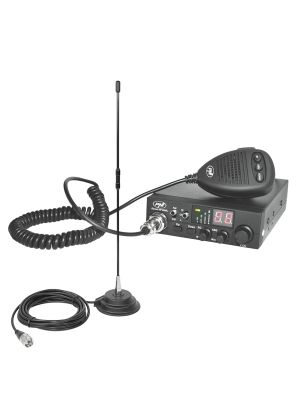

CBI Radio CBI ESCORT HP 8001L ASQ + Headset HS81L + CB PNI ML70 antenna with magnet included
Key lock switchThe PNI Escort HP 8001L CB radio station has a switch on the front panel that allows the selection of the emergency channel (19), the normal mode of operation (CH) and the activation of the key lock function (L) , a useful function in situations where you want to avoid touching accidental pressing of the station keys. | |
ASQ adjustableAn innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of car CB radio stations. If until now we were used to activating/deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interference, background noise and jamming in the CB band. | |
6 pin microphoneThe HP 8001L ASQ radio has a standard 6-pin microphone jack on the front panel. The microphone included in the package has buttons for channel selection, PTT button and ASQ activation button. | |
40 channelsThe PNI HP 8001L radio station corresponds to the latest European CB standards. The station has a switch for changing the type of modulation (AM or FM), which will allow you to select the operating mode. | |
Headphone jack with microphoneThe PNI HP 8001L radio station has plugs on the front panel for connecting a pair of headphones with a microphone, included in the package. | |
Compatible with PNI Bluetooth accessoriesThe PNI Escort HP 8001L radio station is compatible with the PNI BT-Dongle 8001 Bluetooth adapter, the PNI BT-MIKE 8500 Bluetooth microphone and the PNI BT-MIKE 7500 Bluetooth headset. | |
CB antenna performance PNI ML70The performance of the product is closely related to the technical characteristics of the antenna in ideal conditions of installation and use: SWR <= 1.2, maximum applied power 200 W, impedance 50 Ohms, stainless steel, etc. | |
Communication distanceThe communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the communication distance of a maximum of 9 km is achieved in ideal working conditions: calibrated antenna, open field without obstacles, the station with the legally permitted maximum power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance. | |
Antenna lengthThe length of the antenna is a very important factor that can influence the communication distance. Thus, the longer the antenna, the greater the range of action. The PNI ML70 antenna is 70 cm long (magnetic base included). | |
Magnetic baseThe magnetic base PNI 145/PL in the package is provided with a 4 m cable, sufficient for placing the antenna on the dome, it has a diameter of 145 mm and a strong magnet that gives the antenna stability even at high speeds. | |
Complete packageThis kit is ready for assembly with: antenna, magnetic base with cable and plug PL259, Allen key for calibration. All you have to do is mount the antenna on the magnetic base, connect it to a CB radio station and calibrate it to use it at maximum performance. |
Video presentation |
|
CB PNI antenna ML70, length 70cm, 26 30MHz, 200W, magnet 145 mm included EN |
Product identification | |
Product code | PNI-PACK5 |
General characteristics of the radio station | |
Exemplary | Portable |
Emission band type | FM |
Frequency | 26.965-27.405 MHz |
channels | 40 AM/FM |
Microphone type | 6 pins |
Audio signal distortion | less than 5% @ 1 KHz |
Emission power | 4 W |
feeding | 12 V |
Dimensions / Weight | 115 x 36 x 152 mm / 0.8 kg |
Special radio station features | |
ASQ (automatic squelch) | Yes |
Characteristics of the radio antenna | |
Working frequency | 26 - 28 Mhz |
Number of channels | 40 |
Maximum power applied | 200 W |
Minimum SWR in the center of the band | less than 1.2 |
Antenna length | 70 cm |
Impedance | 50 Ohms |
Material | Stainless steel |
Connector type | PL259 |
Hole diameter | 16 mm |
Magnetic base included | Yes |
Magnetic base diameter | 145 mm |
Cable length | 4 m |
The package contains | |
CB radio station | Yes |
CB radio antenna | Yes |
Magnetic base | Yes |
