CBR CBI Station CBI ESCORT CB 8000L ASQ + CB PNI Extra 45 with Magnet

Be the first to review this product

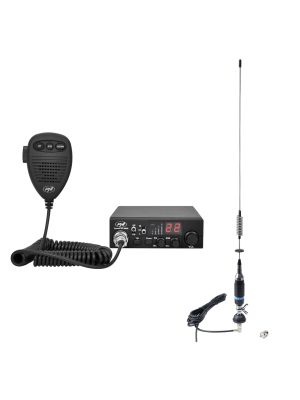

CB radio station and antenna with magnetic base.

£70.70

Availability: In stock

SKU

PNI-PACK8

Details

	ASQ Adjustable An innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of car CB radio stations. If until now we were used to activating/deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interference, background noise and jamming in the CB band.
ASQ button on microphone For increased comfort behind the wheel, PNI has positioned the automatic squelch (ASQ) activation/deactivation button on the microphone. In addition to this button, we also find up/down buttons on the microphone for changing channels, so you won't have to take your eyes off the road to operate these main functions.
	Reduced dimensions You can use the product in any car, because it is one of the smallest CB stations on the market. Robust and with a pleasant design, it can be placed in any location: armrest, dashboard, between the seats, without being uncomfortable or disturbing.
Key lock switch The PNI Escort HP 8000L CB radio station has a switch on the front panel that allows the selection of the emergency channel (19), the normal mode of operation (CH) and the activation of the key lock function (L) , a useful function in situations where you want to avoid touching accidental pressing of the station keys.
	Easy installation and calibration The PNI Extra 45 antenna is easy to mount, by simply screwing the spike on the magnet fixed on the car dome, but also to calibrate, by rotating the tip with the screw, until the desired performance is obtained. It is recommended that the adjustment/calibration of the antenna be performed by specialized personnel with related equipment.
Anti-noise design The PNI Extra 45 antenna has a special anti-noise design that allows the air to slide around the spike, eliminating the noise produced by the wind.

Video presentation

CB PNI Escort HP 8000L

The CB PNI Extra 45 antenna

Reviews

Technical specifications

Product identification
Product code	PNI-PACK8
General characteristics of the radio station
Model	Portable
Emission band type	FM
Frequency	26.965-27.405 MHz
channels	40 AM/FM
Microphone type	6 pins
Audio signal distortion	less than 5% @ 1 KHz
Emission power	4 W
Modulation	FM: 1.8KHz ± 0.2KHz, AM: 85-95%
feeding	12 V
Consumption	second
Dimensions / Weight	115 x 36 x 152 mm / 0.8 kg
Special radio station features
ASQ (automatic squelch)	Yes
Emergency channel button 9/19	Yes
Characteristics of the radio antenna
Working frequency	26.965 - 27.405 Mhz
Number of channels	80
Maximum power applied	150 W
Minimum SWR in the center of the band	1.0
Antenna length	45 cm
Impedance	50 Ohms
Material	Fiber glass
Connector type	PL259
Magnetic base included	Yes
Magnetic base diameter	90 mm
Cable length	4 m
The package contains
CB radio station	Yes
CB radio antenna	Yes
Magnetic base	Yes
