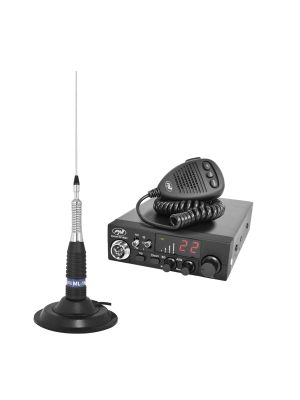

CBR CBI Station CBI ESCORT CB 8024 ASQ + CB PNI ML160 Antenna with T941 Support
ASQ Adjustable and 12/24 V power supplyThe CB PNI Escort HP 8024 radio station can be mounted both on cars with 12V power supply and on trucks or TIRs with 24V power supply. An innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of car CB radio stations. If until now we were used to activating/deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interference, background noise and jamming in the CB band. | |
Key lock switchThe PNI Escort HP 8024 CB radio station has a switch on the front panel that allows the selection of the emergency channel (19), the normal mode of operation (CH) and the activation of the key lock function (L), a useful function in situations where you want to avoid touching of the station keys. | |
Reduced dimensionsYou can use the product in any car, because it is one of the smallest CB radio stations on the market. Robust and with a pleasant design, it can be placed in any location: armrest, dashboard, between the seats, without being uncomfortable or disturbing. | |
performancesThe performance of the product is closely related to the technical characteristics that the antenna has in ideal conditions of installation and use: SWR <1.1, Maximum applied power 600 W, impedance 50 Ohms, Stainless steel, etc. | |
Communication distanceThe communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the maximum communication distance of 15 km or even more is achieved in ideal working conditions: calibrated antenna, open field without obstacles, the station with the maximum legally allowed power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance. | |
The support for the antennaThe support for mounting the antenna comes with a cable length of 5m, thus allowing you to mount the antenna on the trunk of the vehicle and still be able to make the connection with the CB radio station. Due to the robust fastening with the help of hex screws, there will be no danger that the support together with the antenna will come apart and put you in danger. |
Product identification | |
Product code | PNI-PACK55 |
General characteristics of the radio station | |
Exemplary | Portable |
Emission band type | AM-FM |
Frequency | 26.965-27.405 MHz |
channels | 40 AM/FM |
Microphone type | 6 pins |
Emission power | 4W+ |
Modulation | FM: 3KHz ± 0.2KHz, AM: 85-90% |
Mounting 1 DIN | Yes |
feeding | 12 -24 V |
Dimensions / Weight | 115 x 36 x 152 mm / 0.8 kg |
Special radio station features | |
ASQ (automatic squelch) | Yes |
Lock the keyboard | Yes |
Emergency channel button 9/19 | Yes |
Adjustable ASQ | Yes |
SQ - Squelch | Yes |
Characteristics of the radio antenna | |
Working frequency | 25 - 30 MHz |
Number of channels | 90 |
Maximum power applied | 600 W |
Minimum SWR in the center of the band | 1.0 |
Antenna length | 145 cm |
Working distance | 15 km |
Impedance | 50 Ohms |
Material | Stainless steel |
Connector type | PL259 |
Hole diameter | 16 mm |
The package contains | |
CB radio station | Yes |
CB radio antenna | Yes |
Plug PL259 | |
RG58 cable | |
Fixed mounting mount | |
Cable antenna support | Yes |
PNI-HP8024 |
| ||||||||||||
PNI-PACK55 |
| ||||||||||||
PNI-ML160FC |
|
