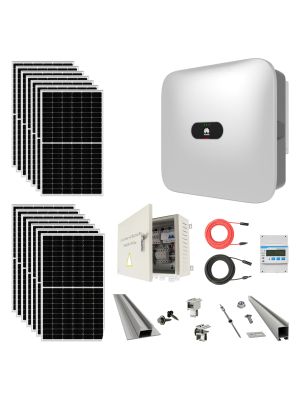

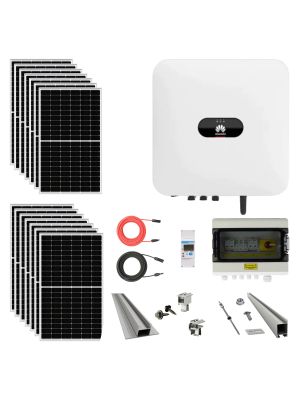

Complete 10kW three-phase prosumator kit with 28 370W panels, accessories and mounting included + Smart meter and wifi dongle

Write Your Own Review

Solar panel features
Panel type	monocrystalline
Maximum power at STC (Pmp)	370 W
Cell efficiency	20.3%
Maximum voltage (Vmp)	34.4 V
Maximum current (Imp)	10.76 A
Open circuit voltage (Voc)	41.3 V
Short circuit current (Isc)	11.26 A ±3%
Maximum system voltage	1500V DC
Fuse (Maximum)	20 A
Dimensions/Weight	1755 x 1038 x 35 mm / 19.5 kg
Solar cells	120 (Monocrystalline)
Material	Monocrystalline silicon / Anodized aluminum
Effective guarantee	10 years 91% Power output, 25 years 80% power output
Resistance to external factors	IP67
Connection cable	Yes, 2x 0.4 m, MC4 connector
Inverter features
Solar inverter type	On Grid
Continuous power	6000 W
Output voltage waveform	Pure sinusoid
Battery supply voltage	600 V ~ 980 Vdc (dedicated batteries)
RMS output voltage	220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+PE
Output signal frequency	50Hz / 60Hz
Inverter efficiency	98.6%
AC input voltage	220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+PE
Input signal frequency	50Hz / 60Hz
Maximum solar charging current	11A ( per MPPT )
Solar DC voltage	140V ~ 980V
Maximum solar power	9000 Wp
MOUNTING	On the wall
Dimensions/Weight	525 x 470 x 146.5 mm / 17 Kg
Integrated inverter type	High frequency
Solar charger type	MPPT (Maximum Power Point Tracking)
Equipment included
Solar panel	28 pcs
inverters	1 b.c
Other	- 14 kits for mounting panels on a tin roof - AC/DC separation/protection board - Smart Meter Huawei DTSU666-H 250A - 50 m solar cable 6 mm Red + 50 m solar cable black - 20 M - 3 sets of MC4 connectors
