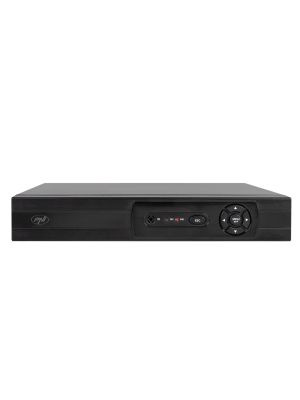

DVR/NVR PNI House AHD880, 8 analog channels 4K-N or 8 IP channels 5MP, H265+, audio input, audio output, USB2.0, 2 x SATA max 8TB

Methods of access and control

The PNI House AHD880 DVR/NVR can be controlled from mobile devices via the XMEye Pro app compatible with Android and iOS, and from PC via the General CMS software . You can find the CMS installation file on the CD included in the package or you can download it from our website, from the product page, Download section .

DVR/NVR (Digital Video Recorder) with maximum 8 analog or 16 digital channels

With the PNI House AHD880 DVR/NVR you have the possibility to record and play images from up to 8 video cameras with analog resolution or 16 digital video cameras (IP).

Can record resolutions:

Analog: 8 cameras with maximum 4K resolution;

Hybrid (Analog-Digital): 8 cameras with a maximum resolution of 4K + 4 IP cameras with a maximum resolution of 5MP;

Digital (IP): 16 IP cameras with a maximum resolution of 2MP or 8 IP cameras with a maximum resolution of 5MP.

Internet control

You can view the recordings in real time from any device (laptop, PC or phone) via the Internet, either directly from the browser (Internet Explorer) or with the help of the dedicated XMEye Pro application compatible with Windows, iOS, Android.

connectors

You have the possibility to connect several types of monitors, the device being equipped with HDMI and VGA output. Video recordings stored on the HDD installed in the DVR/NVR can be downloaded locally to a USB stick via the product interface (USB2.0) or remotely via the Internet directly to a PC. The PNI House AHD880 DVR/NVR can be accessed via the Internet, thanks to the RJ45 LAN port.

HDD compatibility

For optimal operation of the surveillance system, we recommend using only dedicated CCTV hard drives with durability and guaranteed 24/7 operation.

The DVR/NVR supports 2 x HDD of maximum 8TB (not included).

Compatible cameras

The PNI House AHD880 DVR/NVR is compatible with analog video surveillance cameras:

• PNI House AHD32 2MP video surveillance camera
• PNI House AHD47 2MP video surveillance camera
• PNI House AHD25 5MP video surveillance camera

or digital:

• PNI IP5MP video surveillance camera
• PNI House IP52 2MP video surveillance camera
• PNI House IP55 5MP video surveillance camera
• PNI IP652W PTZ 2MP video surveillance camera
• PNI IP655B PTZ 5MP video surveillance camera
