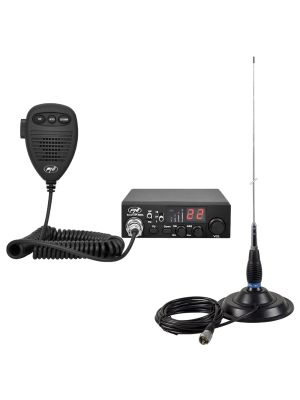

Kit CB CBI ESCORT HP 8001L ASQ + Heads HS81L + CB PNI Extra 45 magnet antenna

Adjustable ASQ
An innovation in the CB segment, the adjustable automatic squelch (ASQ) offers maximum comfort for even the most demanding users of automotive CB radio stations. If until now we were used to activating/deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interference, background noise and interference from the CB band.
6-pin microphone
	The HP 8001 ASQ radio station has a jack for a standard 6-pin microphone on the front panel. The microphone included in the package has channel selection buttons, PTT button and ASQ activation button.
40 channels
The PNI HP 8001 radio station meets the latest European CB standards. The station has a switch for changing the type of modulation (AM or FM) which will allow you to select the operating mode.
Headphone jack with microphone
	The HP 8001 PNI radio station has jacks on the front panel for connecting a pair of headsets with microphone, included in the package.
PNi Extra 45 Antenna
The kit includes the PNI Extra 45 fiberglass antenna with a maximum power of 150 W, magnet, RG58 cable and PL259 plug included. The length of 45 cm ensures an average range of 10 km.

Product identification
Product code	PNI-PACK7
General characteristics of the radio station
Exemplary	Furniture
Emission band type	FM
Frequency	26.965-27.405 MHz
channels	40 AM/FM
Microphone type	6 pins
Audio signal distortion	less than 5% @ 1 KHz
Emission power	4W
Modulation	FM: 1.8KHz ± 0.2KHz, AM: 85-95%
feeding	12V
Consumption	second
Dimensions / Weight	115 x 36 x 152 mm / 0.8 kg
Special features of the radio station
ASQ (automatic squelch)	Yes
Radio antenna features
Working frequency	26.965 - 27.405 MHz
Number of channels	80
Maximum applied power	150W
Minimum SWR in the center of the band	1.0
Antenna length	45 cm
Impedance	50 Ohms
Material	Fiberglass
Connector type	PL259
Magnetic base included	Yes
Magnetic base diameter	90mm
Cable length	4m
The package contains
CB radio station	Yes
CB radio antenna	Yes
Magnetic base	Yes

PNI-PACK7

Lang	Type	Name	Link
EU	Declaration of Conformity	Declaratie de conformitate statie EN, BG, DE, ES, FR, HU, IT, PL, RO	Link
RO	Declaration of Conformity	DC&CG PNI Extra 45	Link
RO	User manual	Manual utilizare	Link
