Kit CB CBI PNI Escort 62 and PNI Extra 48 with Magnet included, ASQ, RF gain
| Multifunctional illuminated screenThe illuminated screen displays the current working mode of the station: the active functions (EMG, LOCK, SC, DW), the frequency band and the number of the selected channel, as well as the strength of the received signal and the transmitted signal. |

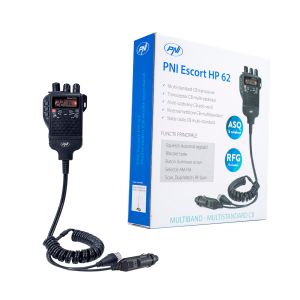

Portable, small sizeSimilar to a walkie-talkie, the PNI Escort HP 62 CB station is extremely accessible and convenient to use due to its small dimensions, only 73 x 35 x 92 mm - without the power adapter. Thus, you can place the station in the armrest or in the restricted spaces on the dashboard of any car. |
|
| Multiple functionsAlthough small in size, the PNI Escort HP 62 is equipped with most of the functions necessary for a CB station, thus satisfying the demands of any user. Functions such as RF Gain (9 levels), SQ (28 levels), Scan, Automatic Squelch (5 levels), Dual Watch or Last channel recall make the station easy to adapt to different communication needs. |
Connectivity: BNC connector, 2-pin plug and PL259 plugThe PNI Escort HP 62 CB radio station has a double use: in the car as a mobile station together with the antenna mounted on the body and outside as a portable station by installing a BNC antenna and batteries (optional accessories). The microphone and loudspeaker connections allow the connection of a 2-pin headset with which we can communicate hands-free. |
|
| CB antenna, discreet and efficientThe PNI Extra 48 antenna is among the smallest CB antennas (it has a height of only 45 cm) and can be mounted both on cars and on vans or minibuses. Its small dimensions make it almost imperceptible, easily confusing with the radio antenna. The average reception distance is 10 km. |
Anti-noise designThe PNI Extra 48 CB antenna has a special anti-noise design that allows the air to slide around the spike, eliminating wind noise that could disrupt communication. |
|
Video presentation |
|

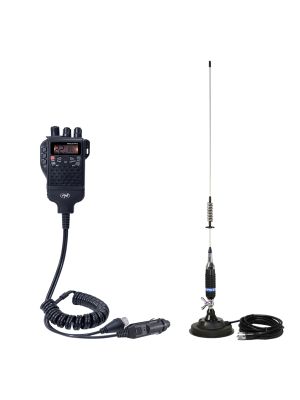

Kit CB transceiver PNI HP Escort 62 and PNI Extra 48 antenna with magnetic base, ASQ and RF gain |
| Product identification | |
| Product code | PNI-HP62-48 |
| General characteristics of the radio station | |
| Frequency | 26.965-27.405 MHz |
| Emission band type | AM-FM |
| feeding | 12 V |
| Sensitivity (10dB) | 0.5uV (AM) 0.25uV (FM) |
| Speaker audio power | 0.5W |
| Absorbed current | 900mA |
| Exemplary | Portable |
| Dimensions (W x H x D / Weight) | 73 x 35 x 92 mm (without power adapter) / 332 g (including adapter) |
| Special features Radio station | |
| ASQ - Automatic Squelch | Yes, 5 levels |
| RF Gain | Yes, 9 levels |
| Small Gain | Not specified |
| Emergency channel button 9/19 | Yes |
| Roger Beep | Not specified |
| LCR - the last selected channel | Yes |
| Color screen | Yes |
| SQ - Squelch | Yes, 28 levels |
| General characteristics of the radio antenna | |
| Working frequency | 26 - 28 Mhz |
| Maximum power applied | 150 W |
| Minimum SWR in the center of the band | less than 1.2:1 |
| Length | 45 cm (magnetic base included) Spike length: 44 cm |
| Impedance | 50 Ohms |
| Material | Fiber glass |
| Connector type | PL259 |
| Cable length (m) | 4 m |
| Weight | 193 g |
| Magnetic base | 103 x 66 x 40 mm |
| The package contains | |
| Radio station antenna | Yes |
| Magnetic base | Yes |
| Radio station microphone | Yes |
| Microphone holder | Not |
| Station mounting support | Not |
| Wired remote control | Not |
| External microphone for handsfree | Not |
| Charger/support for 8 batteries | Not |
| BNC antenna 19 cm | Not |
| Radio station case | Not |
| Support for 6 batteries | Not |
