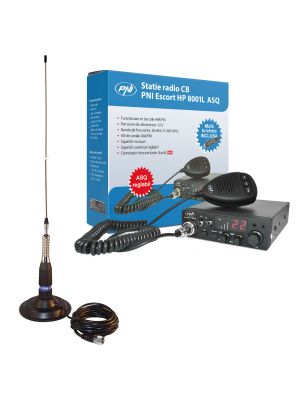

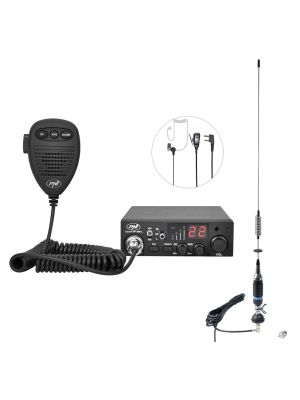

Kit CB radio CBI ESCORT HP 8001L ASQ + Headphones HS81 + CB PNI ML100 antenna with magnet
Key lock switchThe PNI Escort HP 8001L CB radio station has a switch on the front panel that allows the selection of the emergency channel (19), the normal mode of operation (CH) and the activation of the key lock function (L) , a useful function in situations where you want to avoid touching of the station keys. | |
Adjustable ASQAn innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of car CB radio stations. If until now we were used to activating/deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interference, background noise and jamming in the CB band. | |
6-pin microphoneThe HP 8001L ASQ radio has a standard 6-pin microphone jack on the front panel. The microphone included in the package has buttons for channel selection, PTT button and ASQ activation button. | |
40 channelsThe PNI HP 8001L radio station corresponds to the latest European CB standards. The station has a switch for changing the type of modulation (AM or FM), which will allow you to select the operating mode. | |
Headphone jack with microphoneThe PNI HP 8001L radio station has plugs on the front panel for connecting a pair of headphones with a microphone, included in the package. | |
Communication distanceThe communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the maximum communication distance of 12 km is achieved under ideal working conditions: calibrated antenna, open field without obstacles, the station with the legally permitted maximum power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance. | |
Antenna lengthThe length of the antenna is a very important factor that can influence the communication distance. Thus, the longer the antenna, the greater the range of action. The PNI ML100 antenna is 110 cm long (magnetic base included). | |
Magnetic baseThe magnetic base 120/PL in the package is provided with a 4 m cable, enough to place the antenna on the dome, it has a diameter of 125 mm and a strong magnet that gives the antenna stability even at high speeds. |
Video presentation |
|
CB PNI ML100 antenna EN |
General characteristics of the radio station | |
Model | Portable |
Emission band type | AM-FM |
Frequency | 26.965-27.405 MHz |
channels | 40 AM/FM |
Microphone type | 6 pins |
Audio signal distortion | less than 5% @ 1 KHz |
Emission power | 4 W |
feeding | 12 V |
Consumption | 2A maximum |
Dimensions / Weight | 115 x 36 x 152 mm / 0.8 kg |
Special radio station features | |
ASQ (automatic squelch) | Yes |
Lock the keyboard | Yes |
Emergency channel button 9/19 | Yes |
Adjustable ASQ | Yes |
Characteristics of the radio antenna | |
Working frequency | 26 - 28 Mhz |
Number of channels | 100 |
Maximum power applied | 400 W |
Minimum SWR in the center of the band | 1.0 |
Antenna length | 100 cm (110 cm with base included) |
Working distance | 10 km |
Impedance | 50 Ohms |
Material | Stainless steel |
Connector type | PL259 |
Magnetic base included | Yes |
Magnetic base diameter | 125 mm |
Cable length | 4 m |
The package contains | |
CB radio station | Yes |
CB radio antenna | Yes |
Magnetic base | Yes |
PNI-HP8001L |
| ||||||||||||
PNI-ML100 |
| ||||||||||||
PNI-PACK24 |
|
