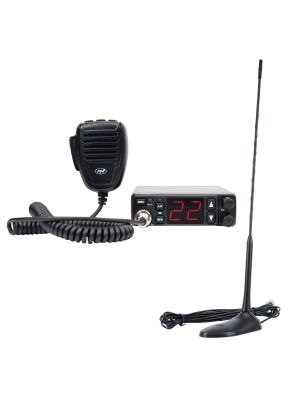

PNI Escort HP 5500 CB radio station

PNI Escort HP 5500 CB radio station and CB PNI ML100 antenna, length 100 cm, with magnetic base included

PNI Escort HP 5500 CB radio station

PNI Escort HP 5500 CB radio station with CB PNI ML70 antenna, 70cm, with 145mm magnetic base included

Kit PNI Escort HP 5500 CB radio station with CB PNI ML29 antenna, 34 cm, with magnetic base, black

Kit PNI Escort HP 5500 CB radio station with CB PNI ML29 antenna, 34 cm, with magnetic base, black
£58.06
Availability: In stock
SKU
PNI-PACK124

PNI-HP5500 - CB radio station PNI Escort HP 5500, multistandard, 4W, AM-FM, 12V/24V, ASQ, RF Gain, cigarette lighter plug included



cb radio station, microphone, PNI

Simplicity for everyone

The PNI Escort HP 5500 CB radio station is ultra compact, measuring only 115 X 115 X 35 mm and can fit even in the smallest spaces.

Easy to install: just connect it to the cigarette lighter socket and the exterior CB antenna mounted on the car's dome.

The PNI Escort HP 5500 was designed with simplicity in mind, so that anyone can use it easily. The high-quality electret condenser encapsulated in the microphone provides clear and powerful sound.

Important functions - anti-noise: SQ, ASQ and RF Gain

The PNI Escort HP 5500 CB radio station allows for the most accurate control over the background noise specific to the CB band.

The analog adjustable SQ function with potentiometer and 5-level ASQ allow the user to filter and eliminate noise making communication clearer.

The 7-level RF Gain function allows control over the reception frequency, reducing distortion.

Other features of the PNI Escort HP 5500 station : 4W transmission power, 12-24V power supply, 40 channels, AM/FM modulation, emergency channels 9-19, 6-pin microphone connector, additional jack for external speaker.

cb radio station, microphone, PNI

cb radio station, microphone, PNI

Multistandard and multiband CB station

By setting the norm and modulation, you can use the station in the United Kingdom (UK) and most European Union countries.

The PNI Escort HP 5500 is equipped with the main European bands ( EU, CE, UK, PL, dE, in, i0, l2 ).

NOTE, to modify the rule:

1. Turn off the radio; simultaneously press the PTT key + the UP key on the microphone while turning the radio back on

2. The LED corresponding to the A/F key lights up and the current rate appears on the screen.

3. Press the UP-DOWN keys to reach the desired rate, then restart the station or press the PTT key to exit the rate setting mode.

PNI-ML29 - PNI ML29 CB antenna, length 34 cm, with included magnet diameter 70 mm and RG58 cable



CB antenna PNI ML29, length 34 cm, with magnet

CB antenna with magnetic base

34 cm long and with a Ø70 mm magnetic base, the PNI ML29 can be an alternative when you are looking for a small, economical and easy-to-install antenna on your car.

Radio communications on the CB frequency band

Compatible with any CB radio station, the PNI ML29 antenna is suitable for use in vehicles and offers a convenient option for communication on the 26-28 MHz frequency band.

CB antenna PNI ML29, length 34 cm, with magnet

CB antenna PNI ML29, length 34 cm, with magnet

Practical and safe

Thanks to its small size, the antenna can be easily mounted and removed from the car when you go on a trip or return home. The magnetic base antenna includes a 4-meter RG58 cable with PL259 plug for connection to the CB radio station.

PNI ML29, an economical solution for short communication distances.

Write Your Own Review
You're reviewing:Kit PNI Escort HP 5500 CB radio station with CB PNI ML29 antenna, 34 cm, with magnetic base, black
Your Rating

PNI-HP5500 - CB radio station PNI Escort HP 5500, multistandard, 4W, AM-FM, 12V/24V, ASQ, RF Gain, cigarette lighter plug included

Product identification
Producer NIP
Product code PNI-HP5500
Product type CB radio station
General features
Exemplary Furniture
Emission band type AM/FM
channels 40
Frequency 26.965 - 27.405 MHz
Microphone type (pins) 6 pins
Speaker audio power 3W
Sensitivity (20dB SINAD) FM -120 dBm, AM -118 dBm@ SINAD 12dB
Audio signal distortion less than 5% @ 1KHz
Emission power 4W
Modulation FM: 2KHz, AM: 80%
EEPROM memory Yes
feeding 12V / 24V
Dimensions (W x H x D / Weight) 115 X 115 X 35 mm / 611 g
Special features
RF Gain Yes
ASQ Yes, 5 levels
Adjustable ASQ Yes
Emergency channels Yes
Automatic digital squelch (ASQ) Yes
Manual squelch Yes
Accessory connection 1-pin plug
Operating temperature -26°C ~ +80°C
Screen lighting
Display type LCD
Rear panel connections
Additional speaker connection Yes
The package contains
Radio station Yes
Microphone Yes
Radio station mounting bracket and screws Yes
Microphone holder and screws Yes
Power cable Yes
Cigarette lighter socket Yes
User manual Yes


PNI-ML29 - PNI ML29 CB antenna, length 34 cm, with included magnet diameter 70 mm and RG58 cable

Product identification
Product code PNI-ML29
Workband ? B
Product color (spike) Silver
General features
Working frequency 26 - 28 MHz
Maximum applied power 500W
Minimum SWR in the center of the band less than 2:1
Length Spike length: 230 mm
Impedance 50 Ohms
Material Copper, Stainless steel
Connector type UHF dad
Cable length 4m
Weight 250 grams
size 340 x 70 x 70 mm (magnetic base included)
Gain >3 dBi
Polarization vertically
Working distance 7 km
Magnetic base 70mm
Operating temperature -26°C ~ +80°C
The package contains
Radio station antenna Yes
RG58 cable Yes, 4 meters

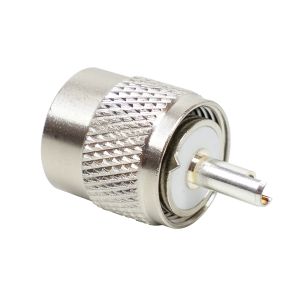

PL259 plug Yes
Magnetic base Yes



PNI-ML29
