| Amateur radio station President RONALDRadio amateur station President RONALD 10/12M is intended for radio amateur traffic with the 2 communication bands of radio amateurs 10M (28MHz-29.7MHz) and 12M (24.890–24.990 MHz) using AM/FM communication modes. |
MultifunctionIt is an advanced model with functions both from the Citizen Band area (Caution: requires modification) and those specialized for radio amateur bands. | |
| Multiple functionsThe station presents a multitude of functions as well as the 3 filters (ANL, NB and Hi-Cut) the presented functions are: RF Power, RF Gain, Mic Gain, Echo (plus the possibility to adjust the echo level), Talk Back, Scan, Roger Beep, Dual Watch (following 2 channels simultaneously), Key Beep, Key Locking, Time out Timer (interruption of the emission if the PTT is pressed for a certain time), showing the SWR on the display and the possibility to change the color of the display ului, having 7 colors available. |
Kit Radio CB President RONALD ASC 10/12M + CB Antenna PNI ML70, length 70cm, 26-30MHz, 200W
TXSU500 - Radio amateur station President RONALD ASC 10/12M, AM-FM, 12V, Scan, RF Gain, NB, ANL, Hi-Cut
PNI-ML70 - PNI ML70 CB antenna, length 70cm, 26-30MHz, 200W, magnet 145 mm included
| CB antenna performance PNI ML70The performance of the product is closely related to the technical characteristics of the antenna in ideal conditions of installation and use: SWR <= 1.2, maximum applied power 200 W, impedance 50 Ohms, stainless steel, etc. |
Communication distanceThe communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the maximum communication distance of 9 km is achieved in ideal working conditions: calibrated antenna, open field without obstacles, the station with the legally permitted maximum power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance. |
|
| Antenna lengthThe length of the antenna is a very important factor that can influence the communication distance. Thus, the longer the antenna, the greater the range of action. The PNI ML70 antenna is 70 cm long (magnetic base included). |
Magnetic baseThe magnetic base PNI 145/PL in the package is provided with a 4 m cable, enough for placing the antenna on the dome, it has a diameter of 145 mm and a strong magnet that gives the antenna stability even at high speeds. |
|
| Full packageThis kit is ready for assembly with: antenna, magnetic base with cable and plug PL259, Allen key for calibration. All you have to do is mount the antenna on the magnetic base, connect it to a CB radio station and calibrate it to use it at maximum performance. |
TXSU500 - President RONALD ASC 10/12M, AM-FM, 12V, Scan, RF Gain, NB, ANL, Hi-Cut Amateur Radio Station | |
|---|---|
| Product Identification | |
| Manufacturer | President |
| Product code | TXSU500 |
| General characteristics | |
| Pattern | Furniture |
| Transmission band type | FM |
| Frequency | 28,000-29,700MHz |
| Microphone Type (Pins) | 6 pins |
| Speaker Audio Power | 3 W |
| Transmitting power | 4 W |
| Power supply | 12 V |
| Current Absorbed | Maximum 500 mA |
| Dimensions (W x H x D / Weight) | 125 x 175 x 45 mm / 0.9 kg |
| 1DIN Mounting | Yes |
| Special features | |
| Dual Watch | Yes |
| Channel Scan | Yes |
| RF Gain | Yes |
| RF PWR | Yes |
| Small Gain | Yes |
| Keyboard lock | Yes |
| Emergency channels | Yes |
| Roger Beep | Yes |
| Noise filter | NB (Noise Blanker) / HI CUT / ANL (Automatic Noise Limiter) |
| Multicolor display | Red/Green/Blue/Purple/Yellow/Cyan-Light blue |
| SWR meter | Yes |
| Digital Automatic Squelch (ASQ) | Yes |
| TOT (Time out Timer) | Yes |
| Talkback | Yes |
| Operating temperature | -26°C ~ +80°C |
| Sound keys | Yes |
| Rear panel connections | |
| Outdoor PA Connection | Yes |
| The package contains | |
| Radio Station | Yes |
| Microphone | Yes |

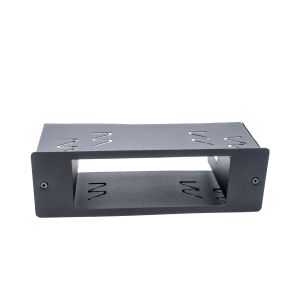

| Radio station bracket and screws | Yes |
| Microphone holder and screws | Yes |
| Power Cord | Yes |
| User Manual | Yes |
PNI-ML70 - PNI ML70 CB Antenna, 70cm Length, 26-30MHz, 200W, 145mm Magnet Included | |
|---|---|
| Product Identification | |
| Product code | PNI-ML70 |
| Work Tape | CB |
| Product color (spike) | Black |
| General characteristics | |
| Working frequency | 26 - 28 Mhz |
| Number of channels | |
| Maximum applied power | 200W |
| Minimum S.W.R. in the center of the band | less than 1.2 |
| Length | 70 cm (magnetic base included) |
| Impedance | 50 Ohm |
| Material | Stainless steel |
| Connector Type | PL |
| Hole diameter | 16 mm |
| Cable length | 4m |
| Weight | 800g |
| Dimensions | 100 x 18 x 5 cm |
| Win | 4 dBi |
| Working distance | 8 km |
| Operating temperature | -26°C ~ +80°C |
| The package contains | |
| Radio Station Antenna | Yes |
| RG58 Cable | 4 m |
| PL259 Plug | Yes |
| Magnetic base | 145 mm |
