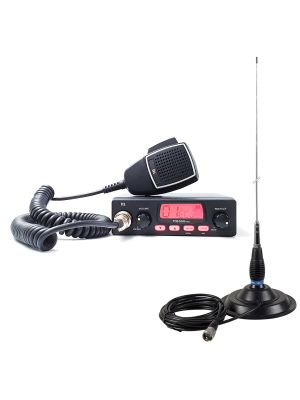

Kit Radio CB TTi TCB-550 EVO + Antenna PNI Extra 45
PNI-TCB-550EVO - CB radio station TTi TCB-550 EVO, DSS, VOX, NB filter, Scan, multicolor screen, 12-24V
Always in EVOLUTIONThe new TTi TCB-550 EVO CB radio station brings several new functions and features compared to the previous model, among which we mention VOX that allows speaking into the microphone without pressing the PTT key, NB filter for a clearer and distortion-free reception, multi-color display and the possibility 12V or 24V power supply. | |
Automatic tuning with automatic DSS squelchThe CB TTi TCB-550 EVO radio station complies with the European standards in force and allows communication on the 40 channels in the 27 MHz band used for info traffic. The station allows you to communicate in both types of bands: AM and FM. It is also equipped with a quick selector of emergency and international infotraffic channels, namely 9-19. . | |
Ergonomic microphone with 4 pinsRadio communication is done in the simplex system with the help of the microphone and speaker: - one speaks and the others listen. By activating the VOX function you can communicate without pressing the PTT key. The microphone is of normal size, easy to handle and is electret type with 4-pin plug. | |
Ready to goYou can use the product in any car as it is one of the smallest CB stations on the market. Robust and with a pleasant design, it can be placed in any location: armrest, dashboard, between the seats, without being uncomfortable or disturbing. The novelty of this model is given by the dual 12-24V power supply. |
PNI-EXTRA45 - PNI Extra 45 CB antenna, with magnet included, length 45 cm, SWR 1.0, 26-30MHz, 150W, fiberglass
Discreet and efficientThe PNI Extra 45 antenna is the smallest CB antenna (it has a height of only 45 cm) that can be mounted both on cars and on vans or minibuses. Its small dimensions make it almost imperceptible, easily confusing with the radio antenna. | |
Easy installation and calibrationThe PNI Extra 45 antenna is easy to mount, by simply screwing the spike on the magnet fixed on the car dome, but also to calibrate, by rotating the tip with the screw, until the desired performance is obtained. It is recommended that the adjustment/calibration of the antenna be performed by specialized personnel with related equipment. | |
Aerodynamic designThe PNI Extra 45 antenna has a special aerodynamic design that allows the air to slide around the spike, eliminating the noise produced by the wind. |
PNI-TCB-550EVO - CB radio station TTi TCB-550 EVO, DSS, VOX, NB filter, Scan, multicolor screen, 12-24V | |
---|---|
Product identification | |
Producer | TT |
Product code | PNI-TCB-550EVO |
Product type | CB radio station |
General characteristics | |
Exemplary | Portable |
Emission band type | AM/FM |
channels | 40 |
Frequency | 26.965 - 27.405 MHz |
Microphone type (pins) | 4 pins |
Speaker audio power | 2W |
Sensitivity (20dB SINAD) | 0.7㎶ for 10dB (S+N)/N in AM mode / 0.7㎶ for 20dB SINAD in FM mode |
Audio signal distortion | less than 8% @ 1KHz |
Emission power | 4 W |
Modulation | FM: 1.8KHz ± 0.2KHz, AM: 85-95% |
EEPROM memory | Yes |
feeding | 12 V / 24 V |
Dimensions (W x H x D / Weight) | 135 X 125 X 35 mm / 767 gr |
Special features | |
Channel scan | Yes |
ASQ | Yes |
Noise filter | NB (Noise Blanker) |
Multicolor screen | Yes, 3 colors |
VOX | Yes |
Manual squelch | Yes |
TOT (Time out Timer) | Yes |
Operating temperature | -10°C ~ +55°C |
Screen lighting | Yes |
Key lighting | Yes |
Rear panel connections | |
Additional speaker connection | Yes |
Bluetooth dongle connection | Yes |
The package contains | |
Radio station | Yes |
Microphone | Yes |
Support and screws for holding the radio station | Yes |
Microphone support and screws | Yes |
Power cord | Yes |
Cigarette lighter plug | Yes |
User manual | Yes |
PNI-EXTRA45 - PNI Extra 45 CB antenna, with magnet included, length 45 cm, SWR 1.0, 26-30MHz, 150W, fiberglass | |
---|---|
Product identification | |
Product code | PNI-EXTRA45 |
Work tape | ? B |
Product color (spike) | Black |
General characteristics | |
Working frequency | 26 - 30 MHz |
Number of channels | 80 |
Maximum power applied | 150W |
Minimum SWR in the center of the band | 1.0 |
Length | 45 cm |
Impedance | 50 Ohms |
Material | Fiber glass |
Connector type | PL |
Cable length | 4 m |
Weight | 0.265 kg |
size | Height 50 cm |
Polarization | vertically |
Working distance | 10 km |
Operating temperature | -26°C ~ +80°C |
The package contains | |
Radio station antenna | Yes |
RG58 cable | Not |
RG174 cable | Yes, 4 m |
Plug PL259 | Yes |
Magnetic base | Yes |
