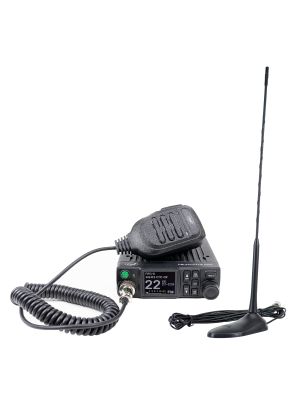

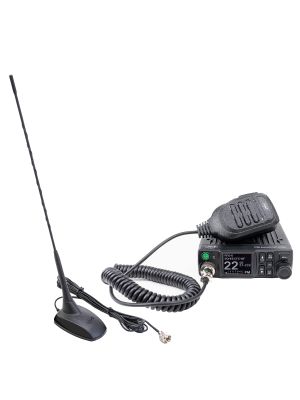

Package CB CBI Escort HP 8900 ASQ radio station, 12-24V + CB PNI Extra 40 antenna with magnetic base
PNI-HP8900 - CB radio station PNI Escort HP 8900 ASQ, 12V / 24V, RF Gain, Roger Beep, CTCSS-DCS, Dual Watch AM/FM switched only in the EU band
Multi-norm CB radio stationBy changing the norm, the procedure is easy to execute with a simple combination of keys, and by changing the modulation (AM/FM) depending on the norm, the PNI Escort HP 8900 CB radio station can be used in several countries in Europe, such as Romania, Italy, Spain, UK, Germany, Poland, etc. Consult the legislation of each country regarding the use of the CB band, the maximum allowed emission power and the need or not to hold a license before using the PNI station. | |
Noise control functions: SQ, ASQ and RF GainThe PNI Escort HP 8900 CB radio station allows the most faithful control over the background noise specific to the CB band. The 28-level adjustable SQ and 9-level adjustable ASQ function allow the user to filter and eliminate noises making communication clearer. The RF Gain function on 9 levels allows control over the reception frequency, reducing distortions. | |
1.77" color screenThe large color LCD screen (1.77 inches) displays information such as the current channel, frequency, modulation, signal strength (RX/TX), rate and active functions, being a reliable indicator of the station's operating status. | |
Additional settings menuThe MENU key on the front panel of the station allows direct access to the additional settings menu: screen brightness, key sound, automatic start, as well as activation, deactivation and setting of functions such as TOT, RF Gain, Noise Blanker, Roger Beep and CTCSS /DCS. |
PNI-EXTRA40 - PNI Extra 40 CB antenna, with magnet included, length 45 cm, 30W, 26-30MHz, SWR 1.0, fiberglass
Discreet and efficientThe PNI Extra 40 antenna is the smallest CB antenna (it has a height of only 44 cm - including the base) that can be mounted both on cars and on vans or minibuses. Its small dimensions make it almost imperceptible, easily confusing with the radio antenna. The average reception distance is 7 km. | |
Easy installationThe Sirio Micro 60 CB antenna is easy to mount, by simply screwing the spike on the magnet fixed on the car dome. The antenna is pre-calibrated from the factory. | |
Antenna performanceThe PNI Extra 40 antenna has the characteristics of a large antenna: SWR 1.0, impedance 50 Ohms, frequency 26-28 MHz. |
PNI-HP8900 - CB radio station PNI Escort HP 8900 ASQ, 12V / 24V, RF Gain, Roger Beep, CTCSS-DCS, Dual Watch AM/FM switched only in the EU band | |
---|---|
Product identification | |
Producer | PNI |
Product code | PNI-HP8900 |
Product type | CB radio station |
General characteristics | |
Exemplary | Portable |
Emission band type | AM/FM |
channels | 40 |
Frequency | 26.965 - 27.405 MHz |
Microphone type (pins) | 6 pins |
Speaker audio power | 3 W |
Sensitivity (20dB SINAD) | 0.25 µV @ 12 dB SINAD |
Emission power | 4 W |
EEPROM memory | Yes |
feeding | 12 V / 24 V |
Absorbed current | 122 x 130 x 37 mm |
Dimensions (W x H x D / Weight) | 660 g |
1DIN assembly | Yes |
Special features | |
Dual Watch | Yes |
Channel scan | Yes |
RF Gain | Yes, 9 levels |
ASQ | Yes |
Lock the keyboard | Yes |
Adjustable ASQ | Yes, on 9 levels |
Emergency channels | Yes |
Roger Beep | Yes |
Noise filter | NB (Noise Blanker) / HI CUT |
Multicolor screen | Yes, blue |
Memory channels | Yes |
SWR meter | Not |
CTCSS / DCS (coder/decoder) | Yes |
Manual squelch | Yes, 28 levels |
and meter | Yes |
Accessory connection | 1 pin plug |
TOT (Time out Timer) | Yes |
Operating temperature | -26°C ~ +80°C |
Key sound | Yes |
Automatic start | Yes |
Display type | LCD |
Channel monitoring | Yes |
Display | Yes |
Use, destination | In the car, truck or at home |
Rear panel connections | |
Additional speaker connection | Yes |
Headphone connection | Yes, 1 pin |
The package contains | |
Radio station | Yes |
Microphone | Yes |
Support and screws for holding the radio station | Yes |
Microphone support and screws | Yes |
Power cord | Yes |
Cigarette lighter plug | Yes |
User manual | Yes |
PNI-EXTRA40 - PNI Extra 40 CB antenna, with magnet included, length 45 cm, 30W, 26-30MHz, SWR 1.0, fiberglass | |
---|---|
Product identification | |
Product code | PNI-EXTRA40 |
Work tape | ? B |
Product color (spike) | Black |
General characteristics | |
Working frequency | 26 - 28 Mhz |
Maximum power applied | 150W |
Minimum SWR in the center of the band | 1.0 |
Length | 45 cm (base included) |
Impedance | 50 Ohms |
Material | Fiber glass |
Connector type | PL |
Cable length | 4 m |
size | 440 x 90 x 90 mm |
Polarization | vertically |
Working distance | 7 km |
Magnetic base | Yes |
Operating temperature | -26°C ~ +80°C |
The package contains | |
Radio station antenna | Yes |
RG58 cable | 4 m |
Plug PL259 | Yes |
Magnetic base | 90 mm |
