Parking access barrier left PNI BPL505S with Led, barrier length 5m, remote control included
Left access barrier, 5 metersThe PNI BPL505S access barrier with LED has a direct drive motor and a stainless steel housing, durable and rust-resistant. This left-opening parking barrier allows micro-adjustment of the opening/closing limit, automatic closing delay, manual opening in case of power failure and automatic return when encountering an obstacle. | |
LED warning stripThe red and green LED strip provides drivers with additional information about the barrier status. The lights remain red until the arm is fully open, then turn green to indicate to the driver that it is safe to pass the barrier. | |
Nighttime visibilityThe arm is made of a lightweight aluminum with an internal structure for strength, including resistance to high winds. There are red reflective strips on both sides of the arm to maximize visibility at night. The night visibility of the strips is almost 90 degrees and up to 150 meters. For added safety, a siren can optionally be installed that will sound a warning when the arm lowers. | |

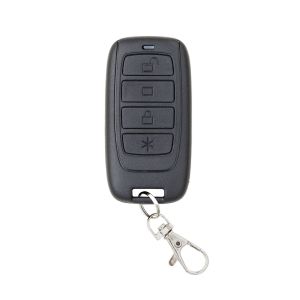

Remote controlThe barrier can be used to restrict vehicle access in open or underground parking lots with low traffic. The barrier is opened by remote control. Pressing the button on the remote control will open, close or stop the barrier arm. This barrier is only recommended when there is a person available to help open and close the barrier arm. In the event of a power outage, there is an option to manually open the barrier. Optionally, access buttons, relays or access control keypads can be connected, eliminating the need for the presence of a person responsible for access. |
Product identification | |
Producer | NIP |
Product code | PNI-BPL505S |
Features | |
Engine type | actuator |
Barrier arm length | 5m |
feeding | 230V ± 10% 50/60Hz |
size | Body: 360 x 245 x 1060 mm Barrier: 5000 x 100 x 45 mm |
Net weight | 50 kg |
LED arm | Yes |
Working temperature | -26°C ~ +80°C |
Barrier body location | On the left |
Lifespan | 5 million shareholders |
Noise level | less than 50dB |
Opening time | 6 seconds |
Nominal power | 90W |
Package contents | |
Barrier body | Yes |
Remote control | Yes, 2 pcs. |
Mounting accessories | Yes |
Barrier support leg | Yes |
User manual | Yes |
