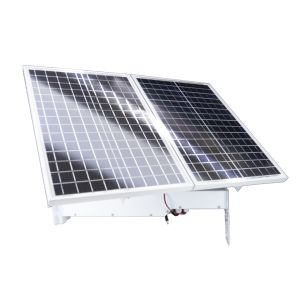

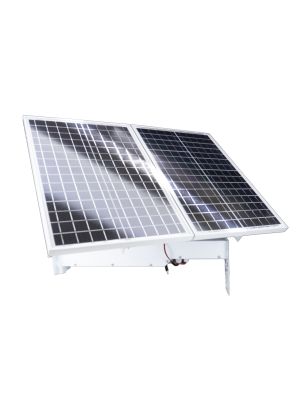

Photovoltaic solar panel PNI PSF6020A power 60W with 20A battery included, 12V output, for surveillance cameras
Rechargeable battery and solar panelThe photovoltaic solar panel PNI PSF6020 power 60W with 20A battery can be installed in any location, even in isolated places where there is no stable power source. The built-in 20 Amp battery ensures the operation of a surveillance camera* for up to 60 hours. The monocrystalline solar panel with a maximum power of 60W quickly charges the battery. The battery charge level is indicated by the central LED on the metal mounting bracket. When the battery is charged below 25%, the LED turns red and flashes. When the battery is fully charged, the LED turns green and remains constantly on. The solar panel must be installed in an area that ensures the best exposure to the sun, oriented to the S or SW. * surveillance camera is not included | |
Versatile pole or wall mountingThe solar panel is equipped with a versatile and multifunctional mounting bracket with accessories for fixing on the wall or for fixing on a high pole. The support is for the surveillance camera, it is also multifunctional, having several types of grips for as many models of surveillance cameras as possible. | |
Adjustable angle and directionFor optimal operation and for the most efficient capture of solar radiation, a correct adjustment of the angle of the panel and the direction according to the cardinal points is necessary. |
Product identification | |
Producer | PNI |
Product code | PNI-PSF60W20A |
Panel features | |
Panel type | monocrystalline |
Power | 60W |
Maximum voltage (Vmp) | 5V |
Open circuit voltage (Voc) | 6V |
Maximum current (Imp) | 12 |
Dimensions / Weight | 580 x 500 x 25 mm |
Short circuit current (Isc) | 14.4A |
Waterproof | IP67 |
Battery features | |
Capacity | 20 Ah |
Output voltage | 12 V |
Battery Type | LiFePO4 |
General characteristics | |
Working temperature | -26 ~ +80°C |
Package contents | |
Solar panel | Yes |
Battery | Yes |
Fixing support | Yes |
