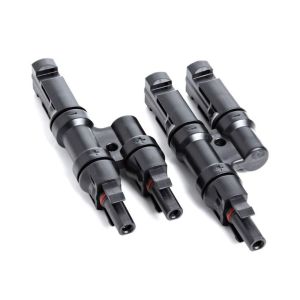

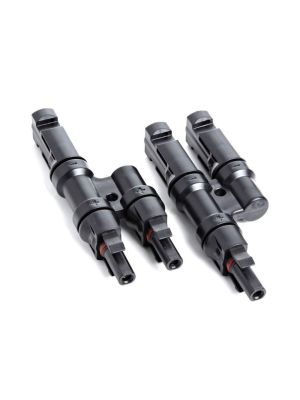

Set splice connector PNI MC4 Y mama-father for solar cable 4-6 mm

PN4 MC4 male-male PNI connector set for 4-6 mm solar cable

The MC4 connector kit is an option for connecting solar cables from 4 and 6 mmq photovoltaic systems. The connection between the panels is a very important point in the photovoltaic installations and must ensure correct contacts and good sealing. Incorrectly made contacts or links may cause a variety of malfunctions and the operation of photovoltaic systems. MC4 connectors are quality products approved by EC and TUV. These accessories used to connect photovoltaic solar panels have the role of connecting solar panels to photovoltaic fields. It is also sold in Solar Photovoltaic Kit, and separately.
£1.82
Availability: In stock
SKU
PNI-SOLMC4MT

0001



The MC4 connector set is a set of accessories for connecting solar cables from photovoltaic systems. The connection between the panels is a very important point in photovoltaic installations and must ensure correct contacts and good sealing.



Incorrectly made contacts or connections can cause problems with the operation of photovoltaic systems. MC4 connectors are CE and TUV approved quality products. These accessories used to connect photovoltaic solar panels have the role of connecting solar panels in photovoltaic fields.

0002

Write Your Own Review
You're reviewing:PN4 MC4 male-male PNI connector set for 4-6 mm solar cable
Your Rating
Identification
Product code NIP-SOLMC4MT
Manufacturer NIP
General characteristics
Technical Parameters -Maximum current: 30A - Voltage-rated: 1000VDC -Suitable cable: 4mm2, 6mm2 (AWG14, AWG12, AWG10) - Pin size: diameter 4.0 mm. -Waterproof grade: IP67 -Safety class: II -Insulating material: PPO+PA -Connection system: crimping connection -Contact material: copper, tin plated -Temperature range: -40 degrees C ~ +90 degrees C
Description -1 MC4 connectors for 4-6mm cable -Plug compatible with MC4 connection norms -Compatible with PV cables with different insulation diameters -Can be used in harsh environments -With excellent aging resistance and UV resistance -High voltage current charging capacity -Simple assembly without sophisticated tools -Strong strength and pulling ability -Resistance to very low and high temperatures -Conductor section between 4 - 6 sq mm
The package contains
Content PNI MC4 mother-father connector set
