Single-phase solar system protection and control

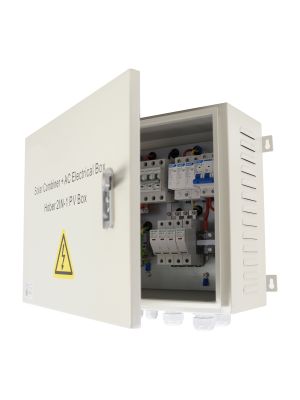

In order to reduce the cable connections between the PV components and the inverter, to improve reliability and to be easier to maintain, the combination box is generally required for large-scale grid-connected PV systems.

The PNI CBM-2 is specifically designed to meet this requirement.

The combination box creates a complete solution for a photovoltaic power generation system with inverter. Using a combination box, the user can combine a certain number of PV components with the same specifications into a single component group according to the inverter input DC voltage range.

solar, protection, control, safety

Technical specifications

PNI CBM-2 can be installed outdoors thanks to the IP65 degree of protection. The box prevents damage to the components from UV rays, acids, moisture, mold or rodents.

In the case of interventions on the installation, the PNI CBM-2 facilitates the interruption of the system and simplifies the connection of the wires.

Specifications
The number of DC inputs	2	size	292 x 220 x 120 mm
Number of DC outputs	1	UV resistance	Yes
Maximum rated voltage	1000V DC	Input cable	PG09
DC overvoltage protection	In=20kA, Imax=40kA, 1000V DC	Cable for outputs	PG21
DC fuse support	Imax=30A, 1000V DC	Earthing plug	PG13.5
DC safety link	15	Degree of protection	IP65

Reviews

Technical specifications

Identification
Product code	PNI-TPIM1-S
Producer	PNI
General Features
Technical parameters	- Solar input (+, -): 2 strings - Current string input (A): 15 A - Solar input wire section: 4 mm - DC output (solar) to inverter: 1 output - DC Current output (A) : 32 A maximum - Maximum solar input voltage (V): 1000 - DC Surge protector: Yes, 1 piece - Working temperature: -20°C ~ 50°C - Protection class: IP65 - Working temperature: -20° C ~ 60°C
Description	PNI switchboard for protection and interruption of DC and AC solar photovoltaic system with single-phase output
Weight	2,544 kg
size	290 X 210 X 125 mm
The package contains
Content	Protection board
