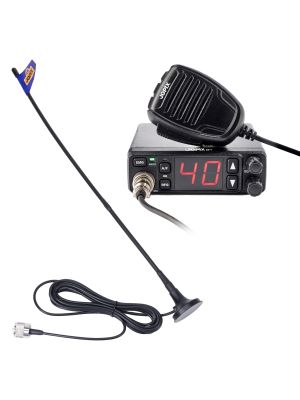

PNI Escort HP 7120 ASQ CB Radio Station Kit, RF Gain, 4W, 12V and PNI Extra 48 CB Antenna with Magnet Included, 45cm, SWR 1.0 AM/FM switch only in the EU band

CB PNI HP 7120 radio station package and CB PNI Extra 48 antenna with magnet included. 28 SQ levels, 9 RF gain levels and 9 digital ASQ levels.

£58.06

Availability: In stock

SKU

PNI-7120EX48

Small The small dimensions of the station (only 110x120x28mm) allow it to be placed in the very narrow spaces of your car, without disturbing you while driving.
	Transmitting power 4W. Power supply 12V. The CB station PNI Escort HP 7120 complies with the legislation in force in Romania and Europe, with a maximum power of 4 W. It is powered at 12V with the help of the cigarette lighter plug included in the package.
FM/AM The CB station PNI Escort HP 7120 allows communication in the FM band used in Romania, but also in the AM band used in some countries of the European Union. In addition to the type of band, the station also allows the selection of the norm (frequency band), a setting necessary for the use of the station in other countries in Europe. Default band: EC 40CH FM 4W.
	Double, adjustable and automatic digital squelch The PNI Escort HP 7120 is enhanced with a Digital Automatic Squelch system. The manual and automatic dual squelch mode offers 28- and 9-level adjustments along with the RF Gain function for finer adjustment of reception.
Discreet and efficient The PNI Extra 48 antenna is among the smallest CB antennas (it is only 45 cm high) and can be mounted on cars, vans or minibuses. Its small size makes it almost unnoticeable, easily confusing with the radio antenna. The average reception distance is 10 km.
	Aerodynamic design The PNI Extra 48 antenna has a special anti-noise design that allows air to slide around the ear, eliminating wind noise.

Product Identification
Product code	PNI-7120EX48
General characteristics of radio station
Pattern	Furniture
Transmission band type	AM-FM
Frequency	26.965-27.405 MHz
Channels	40 AM/FM
Microphone Type	RJ11
Speaker Audio Power	1 W
Sensitivity (20dB SINAD)	greater than 1 μV (AM/FM)
Transmitting power	4 W
Modulation	80 - 90%
Installation 1 DIN	Yes
Power supply	12 V
Consumption	2A maximum
Dimensions / Weight	110 X 120 X 28 mm / 385 g
Special radio station features
Channel Scan	Yes
RF Gain	Yes, 9 levels
Keyboard lock	Yes
Multicolor display	Yes
Emergency channel button 9/19	Yes
Adjustable ASQ	Yes, 9 levels
SQ - Squelch	Yes, 28 levels
Digital Automatic Squelch (ASQ)
Operating temperature	-26 C - +60 C
Additional speaker connection	Yes
Radio antenna features
Working frequency	26 - 28 Mhz
Maximum applied power	150 W
Minimum S.W.R. in the center of the band	1,0
Antenna length	45 cm
Working distance	10 km
Impedance	50 Ohms
Material	Fiberglass
Connector Type	PL259
Magnetic base included	Yes
Magnetic base diameter	103 x 66 x 40 mm
Cable length	4m
The package contains
CB radio station	Yes
CB Radio Antenna	Yes
Magnetic base	Yes
PL259 Plug	Yes
RG58 Cable
Cigarette lighter plug	Yes
Microphone support	Yes
Station support	Yes
RG174 Cable	Yes, 4 m
