CB radio station kit PNI Escort HP 2020 single channel 22 with CB antenna PNI LED 2000 with magnet included

CB radio station kit PNI Escort HP 2020 single channel 22 with CB antenna PNI LED 2000 with magnet included

PNI Escort HP 2020

CB radio station kit PNI Escort HP 2020 single channel 22 with CB antenna PNI Extra 48

PNI Escort HP 82 portable CB radio station kit, multi standard, 4W, 12V, AM-FM with PNI Extra 48 CB antenna

£91.06
Availability: In stock
SKU
PNI-PACK131

Portable CB radio station PNI Escort HP 82

Multi-standard CB station

The PNI Escort HP 82 is a multi-standard portable CB radio station, which means it can operate on multiple frequency bands used in different countries in Europe.
The station has 7 norms (EU, CE, PL, I2, DE, IN) and comes by default set to the EU 4W AM/FM norm.

NRC (Noise Reduction Circuit) function

The PNI Escort HP 82 has a noise reduction circuit (NRC) that helps improve the quality of the received sound. Press the NRC button on the station and you will immediately notice the difference. Together with the adjustable ASQ and SQ functions (5 and 25 levels respectively) you will achieve exceptional reception quality.

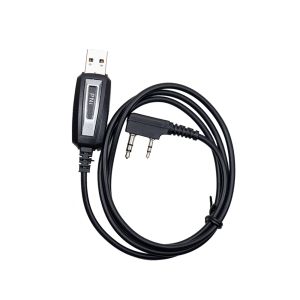

PNI Escort HP 82 is the first portable station in the world with NRC function. The function is programmable through free software and programming cable code: PNI-PSR2030.

Portable CB radio station PNI Escort HP 82

Portable CB radio station PNI Escort HP 82

Other functions

The station also has a FUNC button to quickly customize important functions such as key sound, VOX and Roger Beep levels, and a Monitor function, which allows you to listen to the current channel without transmitting.

In addition, the PNI Escort HP 82 has a power selection function that allows you to choose between low (1.5 W) and high (4 W) emission power and a key lock function that prevents accidental button presses.

Mobile or portable CB station

The PNI Escort HP 82 can be used both as a mobile station in cars by installing the cigarette lighter plug adapter for 12V car power and the connector for the external antenna, but also as a portable station for use in open fields, parking lots, traffic control, etc. by connecting the 240 mm BNC antenna and the 1800mAh Li-Ion battery.

Warning! Do not use the DC adapter with the BNC antenna.

Portable CB radio station PNI Escort HP 82

Video presentation

Adjust modulation AM FM for PNI Escort HP 82

Portable CB radio station PNI Escort HP 82, multi standard, 4W ENG

Write Your Own Review
You're reviewing:PNI Escort HP 82 portable CB radio station kit, multi standard, 4W, 12V, AM-FM with PNI Extra 48 CB antenna
Your Rating

PNI-HP82 - PNI Escort HP 82 portable CB radio station, multi standard, 4W, 12V, AM-FM, NRC, Dual Watch, Roger Beep, ASQ SQ adjustable, VOX

Product identification
Producer PNI
Product code PNI-HP82
Product type CB radio station
General features
Exemplary Portable
Emission band type AM/FM
channels 40
Frequency 26.965 - 27.405 MHz
Microphone type (pins)
Speaker audio power 1W
Emission power 4W
Hi/Low power selection Yes
feeding 12V (via adapter) or 7.4V (via Li-Ion battery)
Current absorbed max. 1.3A
Dimensions (W x H x D / Weight) 150 x 35 x 63 mm (without antenna) 325 gr (without antenna, battery included)
Special features
Dual Watch Yes
Channel scan Yes
ASQ Yes, 5 levels
Keyboard lock Yes
LCR - last selected channel Yes
Emergency channels Yes
Roger Beep Yes
VOX Yes, 5 levels
Manual squelch Yes, 25 levels
TOT (Time out Timer) Yes
Low battery indicator Yes
Operating temperature -26°C ~ +80°C
Key sound Yes
Screen lighting Yes
NRC Yes
Channel monitoring Yes
Display Yes
Front panel connections
2 PIN PNI-K connector for headset Yes
The package contains
Radio station Yes
Radio station mounting bracket and screws Yes
Microphone holder and screws Yes
Power cable Yes
Cigarette lighter socket Yes
User manual Yes
Antenna BNC antenna 240 mm
Antenna adapter and 12 V power supply Yes
Battery 1800mAh
Power Yes
Belt holder Yes


PNI-EXTRA48 - CB antenna PNI Extra 48, with magnet included, 45 cm, 26-30MHz, 150W, SWR 1.0, fiberglass

Product identification
Product code PNI-EXTRA48
Work tape ? B
Product color (spike) Black
General features
Working frequency 26 - 30 MHz
Maximum applied power 150W
Minimum SWR in the center of the band 1.0
Length 45 cm (magnetic base included) Spike length: 44 cm
Impedance 50 Ohms
Material Fiberglass
Connector type PL
Cable length 4m
Weight 193g
size 450 x 103 x 66 mm
Gain >5 dBi
Polarization vertically
Working distance 10 km
Magnetic base 103 x 66 x 40 mm
Operating temperature -26°C ~ +80°C
The package contains
Radio station antenna Yes
RG174 cable Yes, 4 m
PL259 plug Yes



PNI-EXTRA48
Lang Type Name Link
EU10 Declaration of Conformity Declaration of conformity Link
EU10 User manual User manual EU10 Link

PNI-HP82
Lang Type Name Link
RO Software PNI82 Link
