Car radio station and antenna, PNI radar detector

CB radio station kit PNI Escort HP 2020 single channel 22 with CB antenna PNI ML70 with magnet

Car radio station and antenna, PNI

CB radio station kit PNI Escort HP 2020 single channel 22 with CB antenna PNI ML100 with magnet

PNI Escort HP 82 portable CB radio station kit, multi standard, 4W, 12V, AM-FM with PNI ML100 CB antenna with magnet

PNI Escort HP 82 portable CB radio station kit with PNI ML100 CB antenna, 100cm and magnetic base included
£111.97
Availability: In stock
SKU
PNI-PACK135

PNI-HP82 - PNI Escort HP 82 Portable CB Radio Station, Multi Standard, 4W, 12V, AM-FM, NRC, Dual Watch, Roger Beep, ASQ SQ Adjustable, VOX



Statie radio CB portabila PNI Escort HP 82

Multi-standard CB station

The PNI Escort HP 82 is a multi-standard portable CB radio station, which means that it can operate on multiple frequency bands used in different countries in Europe.
The station has 7 norms (EU, CE, PL, I2, DE, IN) and is implicitly set to the EU 4W AM/FM norm.

NRC (Noise Reduction Circuit) function

The PNI Escort HP 82 features a Noise Reduction Circuit (NRC) that helps improve the quality of the received sound. Press the NRC key on the station and you will immediately notice the difference. Together with the adjustable ASQ and SQ functions (5 and 25 levels respectively) you get exceptional reception quality.

PNI Escort HP 82 is the world's first portable station with NRC function. The function is programmable through the free software and the programming cable code: PNI-PSR2030.

Statie radio CB portabila PNI Escort HP 82

Statie radio CB portabila PNI Escort HP 82

Other functions

The station also has a FUNC button to quickly customize important functions such as key sound, VOX and Roger Beep levels, and a Monitor function, which allows you to listen to the current channel without streaming.

In addition, the PNI Escort HP 82 has a power selection function that allows you to choose between low (1.5 W) and high (4 W) emission power, and a key lock function that prevents accidental button presses.

Mobile or portable CB station

PNI Escort HP 82 can be used both as a mobile station in cars by installing the adapter with cigarette lighter plug for 12V power supply in the car and the connector for the external antenna, but also as a portable station for use in the open field, parking lots, traffic management, etc. by connecting the 240 mm BNC antenna and the 1800mAh Li-Ion battery.

Warning! Do not use the DC adapter in conjunction with the BNC antenna.

Statie radio CB portabila PNI Escort HP 82



PNI-ML100 - PNI ML100 CB antenna, length 100 cm, 26-30MHz, 250W, magnet 125mm included



performante Antena CB PNI ML100

Performance of the PNI ML100 CB antenna

The performance of the product is closely related to the technical characteristics that the antenna has in ideal conditions of assembly and use: SWR <= 1.1, maximum applied power 250 W continuously, impedance 50 Ohms, stainless steel, etc.

Communication distance

The communication distance is another decisive factor in the acquisition and use of a CB antenna. Thus, the communication distance of maximum 12 km is achieved in ideal working conditions: calibrated antenna, open field without obstacles, the station with a maximum legally allowed power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can lead to a decrease in this distance.

raza de actiune Antena CB PNI ML100

Antena CB PNI ML100 cu lungime 100 cm

Antenna length

The length of the antenna is a very important factor that can influence the communication distance. Thus, the longer the antenna, the greater the range. The PNI ML100 antenna has a length of 110 cm (magnetic base included).

Magnetic base

The 120/PL magnetic base in the package is provided with a 4 m cable, enough to place the antenna on the dome, has a diameter of 125 mm and a strong magnet that gives the antenna stability even at high speeds.

baza magnetica DV Antena CB PNI ML100

kit Antena CB PNI ML100

Complete package

This kit is ready for assembly having: antenna, magnetic base with cable and PL259 plug, imbus for calibration. All you have to do is mount the antenna on a magnetic base, connect it to a CB radio station and calibrate it to use it at maximum performance.



Video presentation

Adjust modulation AM FM for PNI Escort HP 82

Portable CB radio station PNI Escort HP 82, multi standard, 4W ENG

Write Your Own Review
You're reviewing:PNI Escort HP 82 portable CB radio station kit, multi standard, 4W, 12V, AM-FM with PNI ML100 CB antenna with magnet
Your Rating
Product Identification
Manufacturer NIP
Product code PNI-HP82
Product Type CB radio station
General characteristics
Pattern Portable
Transmission band type AM/FM
Channels 40
Frequency 26.965 - 27.405 MHz
Microphone Type (Pins)
Speaker Audio Power 1 W
Transmitting power 4 W
Hi/Low Power Selection Yes
Power supply 12V (via adapter) or 7.4V (via Li-Ion battery)
Current Absorbed max. 1.3A
Dimensions (W x H x D / Weight) 150 x 35 x 63 mm (without antenna) 325 gr (without antenna, battery included)
Special features
Dual Watch Yes
Channel Scan Yes
ASQ Yes, 5 levels
Keyboard lock Yes
CSF - last selected channel Yes
Emergency channels Yes
Roger Beep Yes
VOX Yes, 5 levels
Manual Squelch Yes, 25 levels
TOT (Time out Timer) Yes
Low battery indicator Yes
Operating temperature -26°C ~ +80°C
Sound keys Yes
Screen lighting Yes
NRC Yes
Channel monitoring Yes
Display Yes
Front panel connections
2-PIN PIN PNI-K headset connector Yes
The package contains
Radio Station Yes
Radio station bracket and screws Yes
Microphone holder and screws Yes
Power Cord Yes
Cigarette lighter plug Yes
User Manual Yes

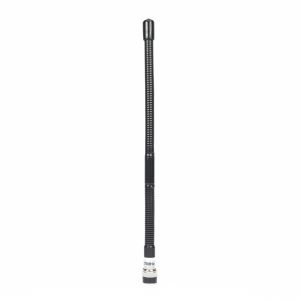

Antenna BNC Antenna 240 mm

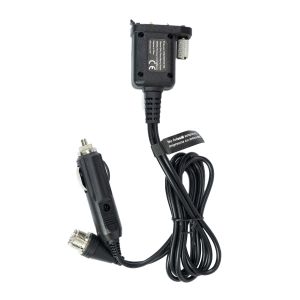

Antenna adapter and 12 V power supply Yes

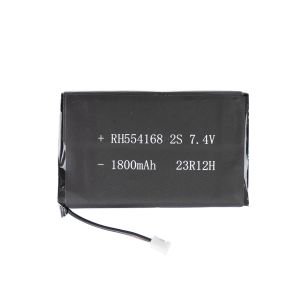

Accumulator 1800 mAh
Feeder Yes
Belt support Yes



PNI-ML100
Lang Type Name Link
EU10 Declaration of Conformity Declaration of conformity EU10 Link
EU10 User manual User manual EU10 Link

PNI-HP82
Lang Type Name Link
RO Software PNI82 Link
