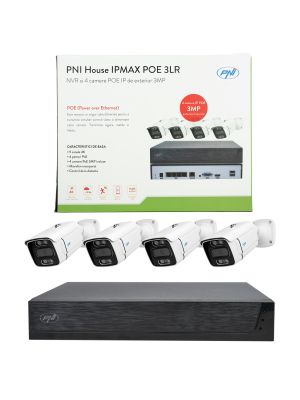

PNI House IPMAX POE 3LR video surveillance kit

PNI House IPMAX POE 3LR video surveillance kit, NVR with 4 POE ports and 10 in network, ONVIF and 4 cameras with IP 3MP, outdoor, Power over Ethernet, chip detection, motion detection, 4 cables, power supply, mouse

PNI House IPMAX POE 3 video surveillance kit, NVR with 4 POE ports, ONVIF and 4 cameras with 3MP IP, outdoor, Power over Ethernet, chip detection, motion detection, 4 cables, power supply, mouse

POE video surveillance system with 4 3MP cameras. Supports up to 10 4K (8MP) cameras.
£207.36
Availability: In stock
SKU
PNI-IPMAX3

Access and control methods

PNI House IPMAX POE 3 can be controlled locally or remotely from mobile devices via the XMEye application compatible with Android and iOS, and from a PC via the General CMS software. The CMS software installation file can be found on the CD included in the package or can be downloaded from our website, on the product page, Download section.

PNI House IPMAX2 video surveillance kit

PNI House IPMAX POE 3 video surveillance kit

4 POE 3MP cameras. H.265 AI video compression

The PNI House IPMAX POE 3 surveillance system includes the recording unit (NVR) and 4 POE cameras that can be used both indoors and outdoors.

The system records image and sound through 4 POE 3MP cameras (2304 x 1296px) with built-in microphone . You will get incredibly bright and clear images, in true colors. The 4 IR LEDs and Flashlight (white light) ensure night visibility at a distance of up to 15 meters.

Optimize storage space (supports up to 8TB HDD, HDD not included) with H.265AI/H.265+ video compression, the newest and most efficient compression technology, without affecting video quality.

9 channels maximum 4K (8MP)

The PNI House IPMAX POE 3 surveillance system supports the connection of 4 POE cameras (via direct connection to the 4 POE ports on the NVR) or 9 POE cameras (via a POE switch) of maximum 8MP (4K) or the network connection of 9 IP cameras of maximum 8MP (4K).

PNI House IPMAX POE 3 video surveillance kit

PNI House IPMAX POE 3 video surveillance kit

connectors

You can connect several types of monitors, the device is equipped with HDMI and VGA output. Video recordings stored on the HDD installed in the NVR (HDD not included) can be downloaded locally to a USB stick, via the USB2.0 interface or remotely via the Internet, directly to a PC. The NVR can be connected to the Internet via the RJ45 LAN port.

POE (Power over Ethernet)

Only one Ethernet cable is required to simultaneously transmit video signal to the NVR and power to the cameras. Safe, stable and reliable transmission. So no more worrying about connecting cameras and long coaxial cables that may affect image quality. The cameras work with CAT5-CAT7 network cables up to 100 meters long. The package includes 4 Ethernet cables of 18.3 meters.

Easy configuration and remote access via the XMEye app

True Plug and Play configuration, very easy to install, configure and control. You will remotely control and view real-time images or play back recordings via phone, XMEye app, CMS software (Windows) or Internet Explorer browser.

PNI House IPMAX POE 3 video surveillance kit

PNI House IPMAX POE 3 video surveillance kit

Face and human shape detection

The PNI House IPMAX POE 3 surveillance system supports the human face or human shape identification function (depending on the connected cameras) and saves different facial expressions in its own memory based on which the user will be able to select video recordings.

Compatible recording unit

PNI House IPMAX POE 3 supports connecting a maximum 8TB hard drive. We recommend using it only with hard drives dedicated to surveillance systems with guaranteed reliability, resistance and quality 24/7.

PNI House IPMAX POE 3 video surveillance kit

Compatible products

PNI IP3POE video surveillance camera with IP, 3MP Internal Hard Disk Seagate SkyHawk HDD 1TB CCTV ST1000VX005
PNI IP3POE video surveillance camera with IP, 3MP

Video presentation

PNI House IPMAX POE 3 video surveillance kit EN

Write Your Own Review
You're reviewing:PNI House IPMAX POE 3 video surveillance kit, NVR with 4 POE ports, ONVIF and 4 cameras with 3MP IP, outdoor, Power over Ethernet, chip detection, motion detection, 4 cables, power supply, mouse
Your Rating
Product Identification
Manufacturer NIP
Product code PNI-IPMAX3
Color DVR/NVR Black
Room color Black/White
DVR/NVR Features
Video inputs 4 x POE max. 4K
Video outputs 1 x VGA, 1 x HDMI
Playback Resolution 2K (HDMI) / 1080P (VGA)
Recording Resolution 9 x max. 4K
Audio Outputs 1 x 3.5 mm
Record Type Simultaneous audio and video recording
Audio Compression G711A
Video Compression H.265AI / H.265+
Data storage maximum 1 x 8 TB HDD 3.5
Network interface RJ45 10/100 Mbps
Firmware update Yes, via USB
Supply voltage 48V/ 2A
Consumption 10 W (without HDD)
Operating temperature -26°C ~ +80°C
Dimensions 255 x 220 x 43 mm
Number of channels 9 Digital
Recording resolution and number of channels, variants 9 x max. 4K
Control PTZ Allow
USB ports 2 x USB2.0
Dedicated app XMEye
Network Yes, RJ45 LAN Port
Registration methods Manual, motion-sensing, programmed
Motion detection Yes
Chip Detection Yes
Human Form Detection Yes
Room features
Video system PAL/NTSC
Pixels 2304 x 1296
Video output Digital, via RJ45
Audio input Built-in microphone
Minimum illumination 0.01Lux/F2.0(Color), 0Lux/F2.0(IR on)
Degree of protection IP66, metal housing
IR Illumination Distance Up to 15 m
Dimensions 70 x 190 x 65 mm
Number of IR LEDs 4 IR LEDs and Floodlight
Power supply POE
Lenses 3.6 mm
Network interface RJ45 10/100Mps
Operating temperature -26°C ~ +80°C
Dedicated app XMEye
Sensor Resolution 3MP
The package contains
DVR/NVR Yes
Surveillance cameras 4 indoor/outdoor rooms
Camera connection cables 4 x 18.3 m
NVR/DVR Power Supply 230V -> 48V
CD Software Yes
User manual Yes
Mouse USB Yes
