PNI House TY200 video surveillance kit - 4 Full HD cameras, control through the Tuya Smart application

Write Your Own Review

Product identification
Producer	PNI
Product code	PNI-TY200-S
DVR/NVR Color	White
Room color	White
DVR/NVR features
Video inputs	4CH WiFi 1080P IP Camera
Video outputs	1 x VGA, 1 x HDMI
Playback resolution	1080P (HDMI)
Registration resolution	4 x Full HD
Display mode	1 channel, 4 channels
Registration type	Video only
Audio compression	G.711
Video compression	H.265 High Profile/ H.264 Main Profile
Data storage	maximum 1 x 8 TB HDD 3.5
Network interface	RJ45 10/100 Mbps
Supply voltage	12V / 3A
Operating temperature	-26°C ~ +80°C
size	200 X 203 X 180 mm
Number of channels	4 digital
Video output resolution	720P60,XGA,1080P60
Recording resolution and number of channels, variants	41080P/4960P/4*720P
Wifi	Yes, only for connecting cameras
Wireless communication distance	Up to 30m in open space
USB ports	2 x USB2.0
Dedicated application	Tuya Smart
Network	Yes, RJ45 LAN Port
Camera features
Image sensor	1/2.9” 2MP CMOS
PIXEL	1080P (1920 x 1080)
Resolution	1080p Full HD
Minimal lighting	Color: 0.01Lux@(F1.2, AGC ON) B/W: 0.001Lux@(F1.2, AGC ON, 0Lux @（IRled ON)
Number of IR LEDs	3 x LED Array
feeding	12V / 1A
LENS	4 mm
Wifi	Yes, 802.11b/g/n
Operating temperature	-26°C ~ +80°C
Viewing angle	72 degrees
Sensor resolution	2MP
The package contains
DVR / NVR
Surveillance cameras	4 indoor/outdoor rooms
NVR / DVR power supply	230V -> 12V 3A
USB mouse	Yes
DVR	Yes
Camera power supply	230V -> 12V 1A

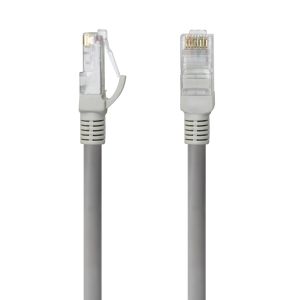

Ethernet cable	Yes
