PNI House WiFi660 NVR 8-channel video surveillance kit and 4 outdoor wireless cameras 3MP, P2P, IP66
Access and control methodsThe PNI House WiFi660 video surveillance kit can be controlled locally or remotely from mobile devices through the XMEye application compatible with Android and iOS, and from PC through the General CMS software. The CMS software installation file can be found on the CD included in the package or can be downloaded from our website, on the product page, Download section. | |
Wireless communicationYou can connect the camera to the Internet through a wireless network. Also, connect the camera to the NVR also via a wireless connection. The maximum WiFi transmission distance is 100 m (in open field). | |

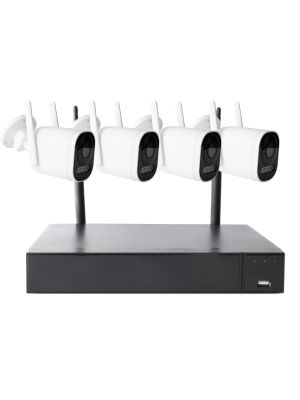

4 exterior roomsThe PNI House WiFi660 kit contains a recording unit (NVR) and 4 cameras, which can be used both indoors and outdoors, allowing surveillance of your home or business from anywhere you have an Internet connection. | |
8 channel NVRWith the NVR in the package, you can record and play images from 8 full HD video surveillance cameras (4 included in the kit + 4 can be purchased separately) . To record images, you can mount an internal HDD with a capacity of up to 6TB inside the NVR. | |
Recording at nightThe 4 cameras are each equipped with 4 IR+FloodLight LEDs, equipment that offers you a quality video at night at distances of up to 30 m. | |
Internet controlNow you can watch in real time remotely the images taken by PNI House WiFi660 . We also add full access to the system that allows you: settings, view recordings, download recordings, etc. Another advantage in this case is that the NVR in the kit can be accessed remotely via the Internet through a P2P connection without the need for special configurations in your router. For Android and iOS we recommend the Xmeye application. | |
View in real timeAlong with the evolution of surveillance systems, HDD manufacturers have created dedicated solutions for them. Thus, for maximum performance of surveillance systems, we recommend using only hard disks dedicated to surveillance systems. |
Video presentation |
|
PNI House WiFi660 NVR 8 channel video surveillance kit EN |
Product identification | |
Producer | PNI |
Product code | PNI-WF660 |
DVR/NVR Color | Black |
Room color | White |
DVR/NVR features | |
Video inputs | 8 entries |
Video outputs | 1 x VGA, 1 x HDMI |
Playback resolution | 1080P Full HD |
Registration resolution | 4 x 5MP / 8 x 3MP |
Audio outputs | 1 x 3.5 mm |
Registration type | Simultaneous audio and video recording |
Audio compression | G711A |
Video compression | H.265+ |
Data storage | maximum 1 x 6 TB HDD (not included) dedicated to video surveillance |
Network interface | RJ45 10/100 Mbps |
Firmware update | Yes, via USB |
Supply voltage | 12V/2A |
Operating temperature | -26°C ~ +80°C |
size | 255 x 210 x 42 mm |
Number of channels | 8 |
Recording resolution and number of channels, variants | 8 3MP IP channels 4 5MP IP channels |
PTZ control | Support |
Wifi | Yes, only for connecting cameras |
Wireless communication distance | Up to 100m in open space |
USB ports | 2 x USB2.0 |
Dedicated application | XMEye |
Registration methods | Manual, Programmed, Motion Detection |
Motion detection | Yes |
Face detection | Yes |
Camera features | |
Image sensor | 1/2.7" CMOS 3.0 Mp |
Video system | PAL/NTSC |
PIXEL | 2304x1296 |
Minimal lighting | 0.1 Lux/F1.2 |
Degree of protection | IP66, metal housing |
IR illumination distance | Up to 30 m |
size | 65 x 175 x 58 mm |
Number of IR LEDs | 4 IR LEDs and Floodlight |
feeding | 12V / 1A |
LENS | 4 mm |
Network interface | RJ45 10/100Mps |
Wifi | Yes |
Operating temperature | -26°C ~ +80°C |
Dedicated application | XMEye |
Sensor resolution | 3MP |
The package contains | |
DVR / NVR | Yes |
Surveillance cameras | 4 indoor/outdoor rooms |
NVR / DVR power supply | 230V -> 12V 2A |
Software CD | Yes |
User manual | Yes |
USB mouse | Yes |
Camera power supply | 230V -> 12V 1A |
