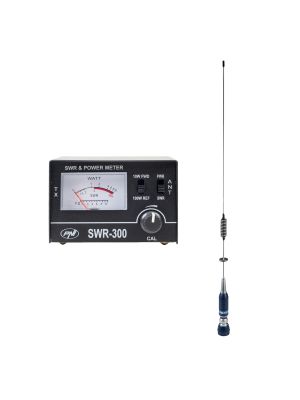

PNI S75 CB antenna, 75 cm, with butterfly, 4m RG58 cable and PNI SWR-300 reflectometer for SWR measurement

£29.76

Availability: In stock

SKU

PNI-S75C-R300

PNI-S75CAB - PNI S75 CB antenna with butterfly, mount, cable and PL plug

	CB antenna performance The performance of the product is closely related to the technical characteristics of the antenna in ideal conditions of installation and use: SWR <= 1.2:1, maximum applied power 250 W, impedance 50 Ohms, stainless steel, etc.
Communication distance The communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the communication distance of 10 km is achieved in ideal working conditions: calibrated antenna, open field without obstacles, the station with the legally permitted maximum power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance.
	Antenna length The length of the antenna is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the range of action. The antenna in this kit has a length of 76 c.
Fixing accessories included The PNI S75 antenna includes all the necessary accessories for mounting on the car: 4 m of RG58 cable, PL259 plug and mount for fixed attachment.
	Adjustable angle This antenna can be tilted with the help of the butterfly screw with which it is provided, to enter passages, garages or low-height parking lots. Apart from these situations, an inclination greater than 30 degrees is not recommended because it can affect the performance of the antenna.

PNI-S75CAB - PNI S75 CB antenna with butterfly, mount, cable and PL plug
Product identification
Product code	PNI-S75CAB
Work tape	? B
Product color (spike)	Silver
General characteristics
Working frequency	26 - 28 Mhz
Maximum power applied	250W
Minimum SWR in the center of the band	less than 1.2:1
Length	Spike length: 54 cm
Impedance	50 Ohms
Material	Stainless steel
Connector type	PL
Operating temperature	-26°C ~ +80°C
The package contains
Radio station antenna	Yes
RG58 cable	4 m
Plug PL259	Yes
Fixed mounting mount	Yes

PNI-SWR300 - Reflectometer PNI SWR-300 PWR-SWR Meter, for measuring the SWR of radio antennas in the 26-30Mhz frequency and CB radio station power
Product identification
Product code	PNI-SWR300
General characteristics
SWR measurement	Yes
Power measurement	0.5-10 W / 10-100 W
Accuracy	SWR ± 5% / POWER ± 10%
Frequency	1.5-150MHz
size	85 X 76 X 58 mm
Impedance	50 Ohms
Connector	SO 239
The package contains
Reflectometer	Yes
User manual	Yes

PNI-S75CAB

Lang	Type	Name	Link
EU10	Declaration of Conformity	Declaration of conformity	Link
EU10	User manual	User manual EU10	Link
