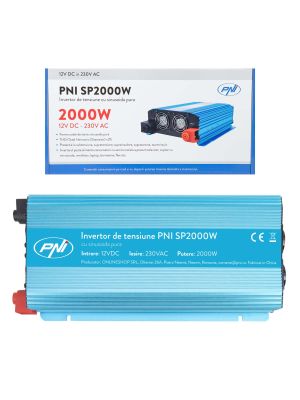

PNI SP2000W voltage inverter

Voltage inverter PNI SP2000W with pure sine wave, input 12V DC, output 230V AC, power 2000W

PNI SP1000W voltage inverter with pure sine wave, 12V pure sine power supply

PNI SP1000W voltage inverter with pure sinusoid, 12V power supply.
£107.83
Availability: In stock
SKU
PNI-SP1000W

Invertor de tensiune PNI SP1000W cu sinusoida pura, alimentare 12V

Pure Sine Inverter

The PNI inverter SP1000W with a continuous power of 1000W, converts the input voltage 12V DC into 230V AC 50Hz. Since inverters need strong current when they operate, the capacity and maximum current of the battery are factors that determine the efficiency at which the inverter operates (50% - 100%). Therefore, for this model we recommend using a 12V battery with a capacity of at least 150Ah.

Applications

Through the two 230V outputs, the inverter can power resistive load consumers such as televisions, audio systems, microwave ovens, fans, laptops, etc. For inductive loads, choose an inverter with a maximum power of 2-3 times higher than the maximum power of the consumer. Connect consumers one at a time and do not exceed the maximum declared power of the inverter.

Invertor de tensiune PNI SP1000W cu sinusoida pura, alimentare 12V

Invertor de tensiune PNI SP1000W cu sinusoida pura, alimentare 12V

Incompatible with solar panels

Car inverters cannot be used with solar panels. There are special inverters for solar systems.



Video presentation

Voltage inverter PNI SP1000W with pure sinusoid, 12V power supply UK

Write Your Own Review
You're reviewing:PNI SP1000W voltage inverter with pure sine wave, 12V pure sine power supply
Your Rating
Product Identification
Pattern For inductive/resistive loads
Product code NIP-SP1000W
General characteristics
Power output 1000 W continuous
Peak Output Power 2000W for 0.5S
Input voltage 12V DC
Output voltage 230V AC
Amperage on 230V output 0-4.3 A
Working frequency 50 Hz
Active cooling With fan
Maximum power output 2000W (for short)
Stand-by power consumption 10-15 W
Efficiency >88%
Overload capacity > 120%
Cable length 44 cm
Output waveform Pure Sinusoidal
Operating temperature -10°C ~ +40°C
Storage temperature -20°C ~ +55°C
Dimensions 310 X 226 X 90 mm
Weight 2,789 g
Humidity ≤ 90%
Alarms and protections
Overload Warning Yes
Surge warning
Thermal protection Yes
Short circuit protection Yes
Automatic undervoltage shutdown
Connections
230 V socket 2 sockets
The package contains
Inverter Yes
Power Cord Yes
Key Yes
User Manual Yes



PNI-SP1000W
Lang Type Name Link
EU10 Declaration of Conformity Declaration of conformity EU9 Link
EU10 User manual User manual EU10 Link
