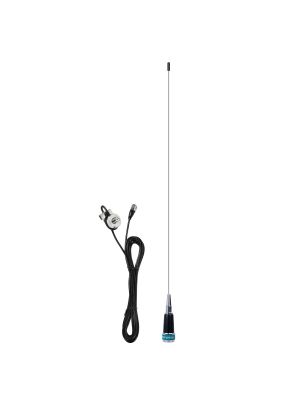

PNI VHF285 Antenna Package for 134-174MHz taxi and PNI 145 / PL magnetic base

The PNI VHF285 antenna with magnetic base with a diameter of 145 mm has a total length of 143 cm. The package is equipped with everything you need for quick use and assembly.

£16.86

Availability: In stock

SKU

PNI-V285-145PL

Details

PNI-145-PL - Magnetic base PNI 145 / PL 145mm contains 4m cable and PL259 plug

Magnetic base The PNI 145 / PL magnetic base has a diameter of 145 mm, a size that gives the antenna stability even at high speeds, with a pleasant design.
	Threaded fastening The PNI145 / PL base is compatible with antennas that have an internal threaded mounting system.
Cable length Cable length is an important factor in choosing a magnetic base. The base from PNI 145 / PL has a quality cable with a length of 4 m, which allows the placement of the antenna on the dome of the car without any problem, and the placement of the cable so as not to disturb the passengers.
	Strong magnet The PNI145 / PL base has a strong magnet for its size, which gives it a very good grip on the car's dome, and resistance and stability even at high speeds.
PL259 plug The PNI 145 / PL magnetic base is equipped with RG58 coaxial cable and PL259 socket for direct connection to the station.
	Rubber support included To protect the car's dome from possible scratches, but without affecting the operation of the antenna in optimal parameters, the 145 / PL magnetic base is provided with a thin and resistant rubber support, which also protects the connections and solders inside it from water.

PNI-VHF285 - PNI VHF285 antenna for taxi 134-174MHz, spike length 128 cm, without cable

	performances The performance of the product is closely related to the technical characteristics of the antenna in ideal conditions of installation and use: SWR <= 1.5: 1, maximum applied power 200 W, impedance 50 Ohms, stainless steel, etc.
Communication distance Communication distance is another decisive factor in the acquisition and use of a VHF antenna. Thus, the maximum communication distance is reached in ideal working conditions: calibrated antenna, open field without obstacles and optimal climatic conditions. Any obstacle such as hills, mountains, buildings, walls and station power can significantly reduce the transmission / reception distance.
	Antenna length Antenna length is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the communication distance / range. The PNI VHF285 antenna has a length of 128 cm.
Batch This antenna is ready for mounting on a magnetic base with the type of PL connector or on a fixed support. We recommend the separate purchase of the PNI S120 / PL 125mm magnetic base containing 4m cable and PL250 plug. All you have to do is connect it to a station and calibrate it to use it at maximum performance.

Reviews

Technical specifications

PNI-145-PL - Magnetic base PNI 145 / PL 145mm contains 4m cable and PL259 plug
Product identification
Product code	PNI-145-PL
General characteristics
Sole diameter	145 mm
Full speed	200 Km / h
Weight	730 g
Cable length	4 m
Compatible antenna type	With inner thread
size	15x15x6 cm
The package contains:
Magnetic base	Yes
Cable	Yes, 4m
jack	Yes, PL259

PNI-VHF285 - PNI VHF285 antenna for taxi 134-174MHz, spike length 128 cm, without cable
Product identification
Product code	PNI-VHF285
Antenna type	5/8 λ
Working tape	VHF (Very High Frequency)
General characteristics
Length	Spike length: 128 cm Total length: 138 cm
Working frequency	134 - 174 MHz
Maximum power applied	200W
Minimum SWR in the center of the band	less than 1.5: 1
Gain	3.4dB
Connector tip	PL
Hole diameter	16 mm
Material	Stainless steel
Weight	180 g
Product color	Silver
The package contains
4m RG58 cable with PC plug, Code T633	Not
PL259 plug	Not
SC 27 butterfly screw, Code T441	Not
Antenna coupling plug LC 27, Code T370	Not
Midland FC 27 mount, Code T478	Not
3 dipoles	Not
Antenna mounting bracket	Not
10 mm metric screw	Not
