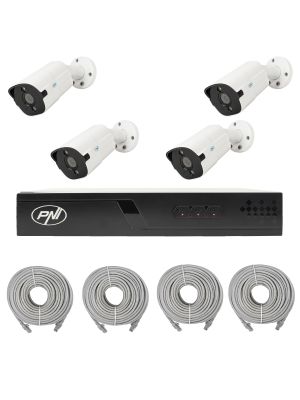

POE PNI House IPMAX POE 5 video surveillance kit, NVR with 4 POE ports and 4 5MP IP cameras
POE 5.0 MP surveillance systemThe PNI House IPMAX POE 5 surveillance system includes 4 professional POE cameras of 5 MP each, with a 3.6 mm lens and a viewing angle of 71 degrees. The NVR with 10 channels, 4 of which are POE, allows you to add 6 more IP cameras with a maximum resolution of 8 MP. | |
POE (Power over Ethernet) systemThe surveillance cameras in the kit need only one Ethernet cable to connect them to the NVR. The cable ensures both the power supply of the cameras and the transfer of the video signal. Fewer cables mean greater freedom of installation, over longer distances, without signal loss. This is one of the major advantages of surveillance systems with POE (Power Over Ethernet) technology. | |
Remote control via the XMEye app (Android, iOS)Download the XMEye app, add the POE PNI system and enjoy the live images or the recordings stored on the hard disk installed in the NVR (hard disk is purchased separately). The app allows adding multiple CCTV systems and enabling alert notifications. Smart alerts sent via email or in-app whenever motion, signal or image are detected allow you to take timely precautions to maintain security and prevent unwanted incidents. | |
Weatherproof IP66The cameras in the PNI House IPMAX POE 5 kit work perfectly regardless of the weather, heavy snow, rain or wind. The 4 IR and white light LEDs enable nighttime surveillance, achieving stunningly clear color or black-and-white images. |
Product identification | |
Producer | PNI |
Product code | PNI-IP-POE5 |
DVR/NVR Color | Black |
Room color | White |
DVR/NVR features | |
Video inputs | 4 x PoE max. 4K |
Video outputs | 1 x VGA, 1 x HDMI |
Playback resolution | 4K (HDMI) / 1080P (VGA) |
Registration resolution | 10 x max. 4K |
Audio outputs | 1 x 3.5 mm |
Registration type | Simultaneous audio and video recording |
Audio compression | G711A |
Video compression | H.265AI / H.265+ |
Data storage | maximum 1 x 14TB HDD (not included) dedicated to video surveillance |
Network interface | RJ45 10/100 Mbps |
Firmware update | Yes, via USB |
Supply voltage | 48V/ 2A |
Consumption | 10 W (without HDD) |
Operating temperature | -26°C ~ +80°C |
size | 255 x 215 x 40 mm |
Number of channels | 10 digital |
Recording resolution and number of channels, variants | 10 x max. 4K |
PTZ control | Support |
USB ports | 2 x USB2.0 |
Dedicated application | XMEye |
Network | Yes, RJ45 LAN Port |
Registration methods | Manual, motion detection, programmed, alarm |
Motion detection | Yes |
Face detection | Yes |
Human form detection | Yes |
Camera features | |
Image sensor | Color CMOS |
Video system | PAL/NTSC |
PIXEL | 2560 × 1920px |
Video output | Digital, via RJ45 |
Audio input | Built-in microphone |
Minimal lighting | 0.01Lux/F2.0(Color), 0Lux/F2.0(IR on) |
Degree of protection | IP66, metal housing |
size | 175 x 65 x 65 mm |
Weight (without accessories) | 320 gr |
Number of IR LEDs | 4 IR LEDs and Floodlight |
feeding | POE |
LENS | 3.6 mm |
Network interface | RJ45 10/100Mps |
Operating temperature | -26°C ~ +80°C |
Dedicated application | XMEye |
Sensor resolution | 5MP |
The package contains | |
DVR / NVR | |
Surveillance cameras | 4 indoor/outdoor rooms |
Camera connection cables | 4 x 18.3 m |
NVR / DVR power supply | 230V -> 48V |
Software CD | Yes |
User manual | Yes |
USB mouse | Yes |
DVR | Yes |
