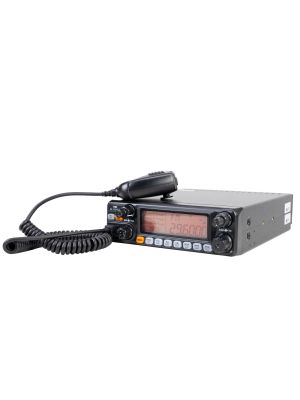

Radio amateur station CRT SS 6900 VOX CB, AM, FM, USB, SSB, CW, PA, 28-29.7Mhz, ASQ, RF Gain, Roger Beep, 12V, programmable
New improvementsThe radio amateur station CRT SS 6900V (v7) comes additionally with the VOX function, an extra ventilation in conditions of maximum use, a connection plug in the back for programming, the possibility of changing the type of microphone: electret or dynamic and the possibility of setting the frequency step and at 5KHz. | |
Modes of useThe available modes of use are: AM, FM, USB, LSB, CW and PA. The station can also be programmed using a computer and a special mini-USB cable giving access to additional functions. | |
Multiple functionsIn addition to the station's ability to increase its power from the potentiometer and buttons, it offers an unforgettable use for any radio amateur thanks to the features:
| |
Quick useThe station comes equipped with everything you need for quick use. Thus, in the package you will find:
We recommend powering the station (13.8V) directly to the car battery by a specialist. |
Product identification | |
Product code | PNI-CRTS6900V |
Brandi | No. |
General characteristics | |
Frequency | 28,000-29,700MHz |
Emission band type | AM - FM - USB - CW - LSB |
channels | 60 programmable channels in each band |
feeding | 13.8 V |
Dimensions (W x H x D / Weight) | 200 X 60 X 240 mm |
Microphone type (pins) | 4 pins |
Sensitivity (20dB SINAD) | 1.0 µV AM/FM ; 0.25 µV SSB |
Sensitivity (10dB) | 1 uV |
Speaker audio power | 4W |
Emission power | AM/CW: 1-12W (adj); FM: 2-40W (adj); USB/LSB: 0-30W (adj) |
Exemplary | Portable |
EEPROM memory | Yes |
Jack for additional external speaker | Yes, 3.5mm |
Special features | |
Dual Watch | Yes |
Channel scan | Yes |
RF Gain | Yes |
ASQ - Automatic Squelch | Yes |
Keyboard lock | Yes |
Noise filter | NB (Noise Blanker), ANL (Automatic Noise Limiter), HI-CUT |
Roger Beep | Yes |
clarifier | Yes |
Frequency step adjustment | Yes |
Emergency channel button 9/19 | Yes |
RF power control | Yes |
Programmable | Yes |
SQ - Squelch | Yes |
RF PWR | Yes |
SWR meter | Yes |
VOX | Yes |
and meter | Yes |
Operating temperature | -30°C ~ +50°C |
Key sound | Yes |
aryl | Yes |
Security codes | Yes, CTCSS/DCS |
Rear panel connections | |
Additional speaker connection | Yes |
CW (morse) connection | Yes |
Programming connection | Yes |
The package contains | |
Radio station microphone | Yes |
Radio station | Yes |
Microphone holder | Yes |
Station mounting support | Yes |
Power cord | Yes |
Lighter plug | Not |
